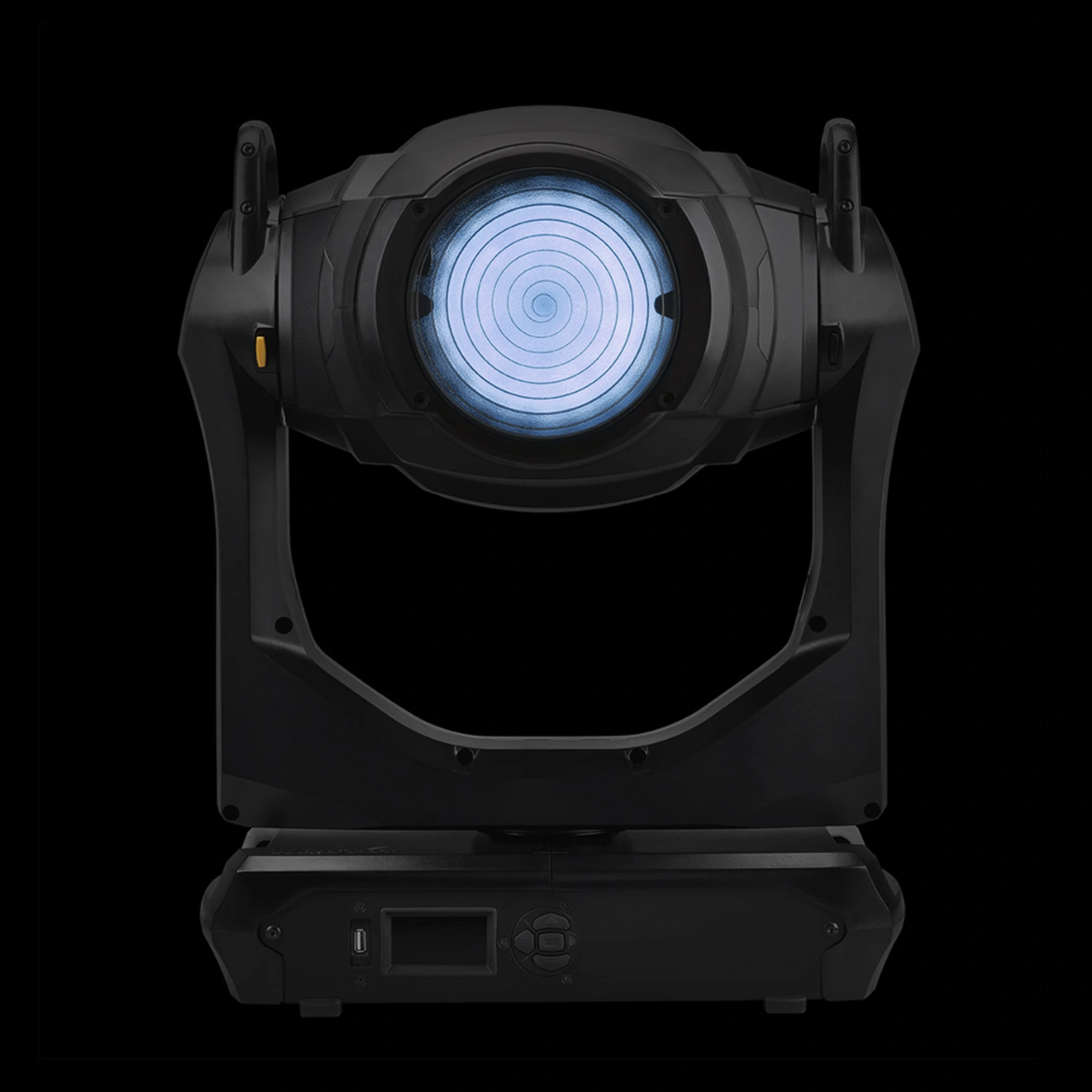

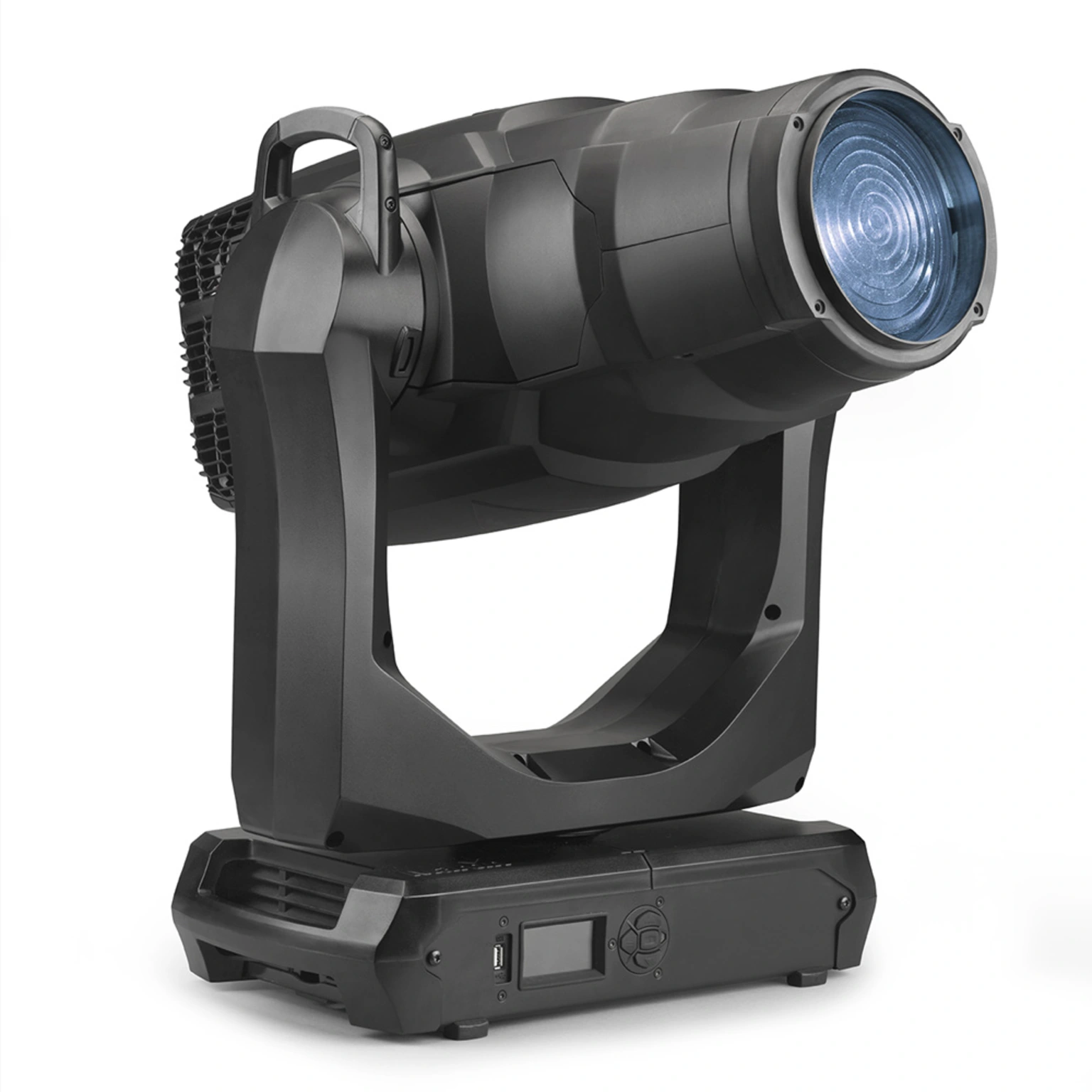

MAC Encore Wash CLD

Cabeza móvil de luz fría de alta calidad con borde suave

MAC Encore Wash CLD
Imágenes más grandes

Diseñado para producir un color rico y una luz blanca premium en una amplia variedad de aplicaciones donde la calidad de la luz es crítica, el MAC Encore™ Wash CLD es una alternativa basada en LED al MAC Viper Wash DX. La robusta cabeza móvil de borde suave, repleta de características, ofrece una luz diurna neutra y nítida de 6000 K sin igual, y también funciona como un reemplazo moderno para equipos genéricos como los fresneles basados en HMI, con el beneficio adicional de mezcla de colores y movimiento.

  • Calidad de luz blanca fría de 6000 K sin igual
  • Operación de enfriamiento y efectos super silenciosa
  • Mejor relación tamaño/peso/rendimiento de su categoría

  • NEW LED TECHNOLOGY

    Designed for real life applications, its pure white 6000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head.  High CRI, TM-30 and R9 values ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

  • WHISPER-SILENT

    This is the most silent, soft edge moving head we’ve ever built. All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash CLD is still a stealth operator.

  • COLOR PALETTE

    Precise color temperature control with variable color temperature correction (CTO) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

  • OPTICS

    A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

  • INTERNAL BARNDOORS

    Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam’s wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

  • STURDY, LIGHTWEIGHT DESIGN

    With its best-in-class compact design and premium build-quality, MAC Encore Wash CLD lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (28.5 kg/62.9 lbs.)

featured content

NEW LED TECHNOLOGY

Designed for real life applications, its pure white 6000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head.  High CRI, TM-30 and R9 values ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

featured content

WHISPER-SILENT

This is the most silent, soft edge moving head we’ve ever built. All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash CLD is still a stealth operator.

featured content

COLOR PALETTE

Precise color temperature control with variable color temperature correction (CTO) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

featured content

OPTICS

A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

featured content

INTERNAL BARNDOORS

Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam’s wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

featured content

STURDY, LIGHTWEIGHT DESIGN

With its best-in-class compact design and premium build-quality, MAC Encore Wash CLD lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (28.5 kg/62.9 lbs.)

Videos





Características

  • Pure white LED engine with 6000 K CCT.
  • No color temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
  • Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel—6 interchangeable dichroic filters + open.
  • Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
  • PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
  • Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
  • Precise and tight iris with adjustable dynamic effects.
  • Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
  • Low weight—28.5 kg/62.9 lbs
  • Foam rubber (SIP) flight case insert for secure shipment.

Especificaciones

  • Physical Length: 452 mm (17.8 in.) Ancho: 480 mm (18.9 in.) across yoke Altura:

    755 mm (29.8 in.) maximum
    745 mm (29.4 in.) head straight up

     PESO: 28.5 kg (62.9 lb.) Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
    Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: CMY, independently variable 0 - 100% Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color Iris: Variable 0 - 100% Zoom: Motorized Color temperature control: Variable 6000 - 2700 K Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout Dimming options: Choice of four dimming curves Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
    Control and Programming Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX 16-bit control: Dimming, pan and tilt Movement control options: Tracking and vector DMX channels: 24 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Fixture software update: USB memory device or over DMX link
    Optics Light source: 468 W custom Martin LED engine Minimum LED lifetime: 50,000 hours (to >80% luminous output)* Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4) Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5) *Figure obtained under manufacturer's test conditions
    Photometric Data Light engine luminous output: ≥ 39,400 lumens Fixture luminous output with Fresnel lens (standard): 11,000 lumens Fixture luminous output with PC lens (optional): 12,000 lumens CRI (Color Rendering Index) : >80 CQS (Color Quality Scale): >80 TM-30 Rf (IES TM-30-15 Fidelity Index): >80 TM-30 Rg (IES TM-30-15 Gamut Index): >96 TLCI (Television Lighting Consistency Index): >70 CCT: 6000 K (+/- 250 K)

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Installation Mounting points: 4 pairs of 1/4-turn locks Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
    Connections AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) DMX and RDM data in/out: 5-pin locking XLR
  • Electrical

    AC power: 120-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
    Power Factor: 0.99 @ 120 V / 208 V , 0.98 @  230 V / 240 V
    Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *
    Power Consumption
    Typical: 596 W *
    Idle: 64 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.
    Thermal Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 17 lm/w LWR*: 386 lm/kg (175 lm/lb)

    LWR = Lumen-to-Weight Ratio
    Approvals EU safety: EN 60598-2-17, EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. E598-2-17 Canadian EMC: ICES-003 Class A Australia/NZ: RCM Thailand: TIS
    Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Gelframe MAC Encore: P/N 91001000 Set of Followspot Handles MAC Encore: P/N 91001001HU PC Lens Assy MAC Encore Wash: P/N 91616110HU SIP Packaging MAC Encore Family: P/N 91616115HU Cables and connectors:

    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789

     *Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

     Flightcase: Two-unit Flightcase for MAC Encore™*: P/N 91515048
    Verified Third-Party Accessories

    Beam Control
    MAC Encore Wash Top Hat: P/N City Theatrical 2779
    Ordering Information MAC Encore™ Wash CLD EPS (in cardboard box, polystyrene packaging): P/N 90234040 MAC Encore™ Wash CLD SIP (in cardboard box with SIP foam flightcase insert): P/N 90234045 MAC Encore™ Wash CLD, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90234050HU

Descargas

Specifications
  Versión Idioma Tamaño Subido
file type icon MAC Encore - SiP data sheet
en versión B, actualizado: oct 2020
B  en  1,31 MB oct 2020
file type icon MAC Encore Wash - Spec sheets
en versión A, actualizado: oct 2020
A  en  2,22 MB oct 2020
Manuals
  Versión Idioma Tamaño Subido
file type icon MAC Encore Wash - Manuel d'Installation et Sécurité
fr versión C, actualizado: oct 2018
C  fr  2,44 MB oct 2018
file type icon MAC Encore Wash - Sicherheits- und Installationshinweise
de versión C, actualizado: oct 2018
C  de  2,44 MB oct 2018
file type icon MAC Encore Wash - User Guide
en versión C, actualizado: may 2023
C  en  631 KB may 2023
file type icon MAC Encore Wash - Bedienungsanleitung
de versión C, actualizado: may 2023
C  de  396 KB may 2023
file type icon MAC Encore Wash - Safety and Installation Manual
en versión D, actualizado: oct 2018
D  en  5,01 MB oct 2018
Photometrics
  Versión Idioma Tamaño Subido
file type icon MAC Encore Wash - Photometric files
en versión A, actualizado: oct 2021
A  en  13,8 MB oct 2021
Illustrations
  Versión Idioma Tamaño Subido
file type icon MAC Encore Wash - 2D dimensions (DWG)
en versión A, actualizado: oct 2020
A  en  3,73 MB oct 2020
file type icon MAC Encore Wash - 2D dimensions (PDF)
en versión A, actualizado: oct 2020
A  en  187 KB oct 2020
Symbols
  Versión Idioma Tamaño Subido
file type icon Martin Professional GDTF Library
en versión A, actualizado: oct 2023
A  en  203 Bytes oct 2023
file type icon AutoCAD 2D Symbols
en versión 2.8, actualizado: ene 2026
2.8  en  4,42 MB ene 2026
file type icon AutoCAD 3D Symbols
en versión 2.8, actualizado: ene 2026
2.8  en  18,7 MB ene 2026
file type icon Vectorworks Symbols
en versión 4.6, actualizado: ene 2026
4.6  en  249 MB ene 2026
CAD Drawings
  Versión Idioma Tamaño Subido
file type icon MAC Encore Wash - 3D dimensions, head horizontal (DWG)
en versión A, actualizado: oct 2020
A  en  9,72 MB oct 2020
file type icon MAC Encore Wash - 3D dimensions, head horizontal (3DS)
en versión A, actualizado: oct 2020
A  en  9,66 MB oct 2020
file type icon MAC Encore Wash - 3D dimensions, head vertical (DWG)
en versión A, actualizado: oct 2020
A  en  8,09 MB oct 2020
file type icon MAC Encore Wash - 3D dimensions, head vertical (3DS)
en versión A, actualizado: oct 2020
A  en  10,5 MB oct 2020
BIM Objects
  Versión Idioma Tamaño Subido
file type icon MAC Encore Wash CLD - BIM Object
en versión A, actualizado: abr 2024
A  en  abr 2024
Compliances
  Versión Idioma Tamaño Subido
file type icon MAC Encore Series - ETL Listing Verification
versión A, actualizado: oct 2020
A    380 KB oct 2020
file type icon MAC Encore Wash - EU Declaration of Conformity
en versión A, actualizado: oct 2020
A  en  437 KB oct 2020
file type icon MAC Encore Wash - Déclaration de Conformité Européenne
fr versión A, actualizado: oct 2020
A  fr  494 KB oct 2020
file type icon Safety Document (SDS) for Batteries
en versión D, actualizado: ene 2026
D  en  332 KB ene 2026
Service Notes
  Versión Tamaño Subido
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
versión 4, actualizado: oct 2020
4  743 KB oct 2020
Firmware
  Versión Tamaño Subido
download icon for MAC Encore Wash - Firmware MAC Encore Wash - Firmware
versión 1.6.1, actualizado: jun 2026
1.6.1   jun 2026
