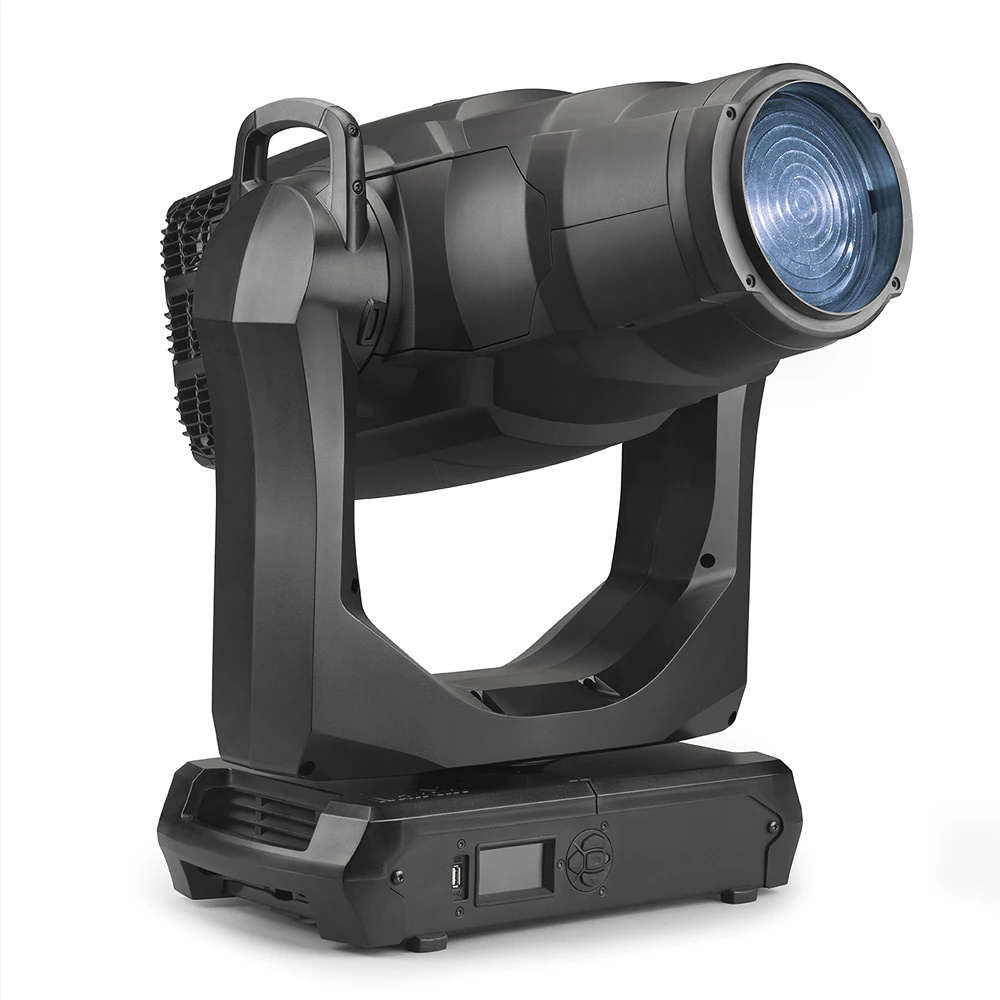

MAC Encore Wash CLD

High quality cold light soft edge moving head

Larger Images

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash CLD is an LED-based alternative to the MAC Viper Wash DX. The feature-packed soft edge moving head offers unparalleled 6000 K crisp, neutral daylight, and doubles as a modern replacement for generic fixtures like HMI based Fresnel fixtures, with the additional benefit of color mixing and movement.

  • Unparalleled 6000 K cold white light quality
  • Super silent cooling and effects operation
  • Best-in-class size/weight/performance ratio
  • NEW LED TECHNOLOGY

    Designed for real life applications, its pure white 6000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head.  High CRI, TM-30 and R9 values ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

  • WHISPER-SILENT

    This is the most silent, soft edge moving head we’ve ever built. All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash CLD is still a stealth operator.

  • COLOR PALETTE

    Precise color temperature control with variable color temperature correction (CTO) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

  • OPTICS

    A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

  • INTERNAL BARNDOORS

    Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam’s wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

  • STURDY, LIGHTWEIGHT DESIGN

    With its best-in-class compact design and premium build-quality, MAC Encore Wash CLD lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (28.5 kg/62.9 lbs.)

NEW LED TECHNOLOGY

Designed for real life applications, its pure white 6000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head.  High CRI, TM-30 and R9 values ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

WHISPER-SILENT

This is the most silent, soft edge moving head we’ve ever built. All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash CLD is still a stealth operator.

COLOR PALETTE

Precise color temperature control with variable color temperature correction (CTO) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

OPTICS

A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

INTERNAL BARNDOORS

Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam’s wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

STURDY, LIGHTWEIGHT DESIGN

With its best-in-class compact design and premium build-quality, MAC Encore Wash CLD lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (28.5 kg/62.9 lbs.)

Videos

Martin MAC Encore Wash Applications and Effects



Features

  • Pure white LED engine with 6000 K CCT.
  • No color temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
  • Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel—6 interchangeable dichroic filters + open.
  • Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
  • PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
  • Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
  • Precise and tight iris with adjustable dynamic effects.
  • Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
  • Low weight—28.5 kg/62.9 lbs
  • Foam rubber (SIP) flight case insert for secure shipment.

Specifications

  • Physical Length: 452 mm (17.8 in.) Width: 480 mm (18.9 in.) across yoke Height:

    755 mm (29.8 in.) maximum
    745 mm (29.4 in.) head straight up

    Weight: 28.5 kg (62.9 lb.) Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.) Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: CMY, independently variable 0 - 100% Color temperature control: Variable 6000 - 2700 K Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation Iris: Variable 0 - 100% Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout Dimming options: Choice of four dimming curves Zoom: Motorized Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Control and Programming 16-bit control: Dimming, pan and tilt Movement control options: Tracking and vector Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX DMX channels: 24 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Fixture software update: USB memory device or over DMX link Optics Light source: 6000 K white LEDs CRI (Color Rendering Index): >80 Total LED engine power: 468 W Minimum LED lifetime: 50,000 hours (to >80% luminous output)* Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4) Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5) *Figure obtained under manufacturer's test conditions Photometric Data Light engine luminous output: ≥ 39,400 lumens Fixture luminous output with Fresnel lens (standard): 11,000 lumens Fixture luminous output with PC lens (optional): 12,000 lumens CQS (Color Quality Scale): >80 TM-30 Rf (IES TM-30-15 Fidelity Index): >80 TM-30 Rg (IES TM-30-15 Gamut Index): >96 TLCI (Television Lighting Consistency Index): >70 Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20 Installation Mounting points: 4 pairs of 1/4-turn locks Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.) Connections AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) DMX and RDM data in/out: 5-pin locking XLR
  • Electrical AC power: 120-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Power Consumption: 64 W Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A Typical Power and Current 120 V, 60 Hz: 5.0 A, 596 W, PF 0.998 208 V, 60 Hz: 2.9 A, 581 W, PF 0.988 230 V, 50 Hz: 2.6 A, 580 W, PF 0.981 240 V, 50 Hz: 2.2 A, 585 W, PF 0.979 Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor Thermal Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr. Approvals EU safety: EN 60598-2-17, EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. E598-2-17 Canadian EMC: ICES-003 Class A Australia/NZ: RCM Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment Accessories Gelframe MAC Encore: P/N 91001000 Set of Followspot Handles MAC Encore: P/N 91001001HU PC Lens Assy MAC Encore Wash: P/N 91616110HU SIP Packaging MAC Encore Family: P/N 91616115HU PC (planoconvex) Lens for MAC Encore Wash: P/N TBA Cables and connectors:

    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Flightcase: Two-unit Flightcase for MAC Encore™*: P/N 91515048 *Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts Related Items Martin® M-PC 2U incl. Martin® M-DMX USB-DMX Interface: P/N 90737070 Martin® M-PC Pro-64 / LJ-4 Controller Kit incl. Martin® M-DMX USB-DMX Interface: P/N 90737060 Martin™ RDM 5.5 Splitter: P/N 90758150 Ordering Information MAC Encore™ Wash CLD EPS (in cardboard box, polystyrene packaging): P/N 90234040 MAC Encore™ Wash CLD SIP (in cardboard box with SIP foam flightcase insert): P/N 90234045 MAC Encore™ Wash CLD, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90234050HU

Downloads

  Version Language Size Uploaded
Specifications
MAC Encore Wash - Photometric files en  13.8 MB May 18, 2018
MAC Encore - SiP data sheet en  1.31 MB May 18, 2018
MAC Encore Wash - Spec sheets en  2.22 MB May 18, 2018
Manuals
MAC Encore Wash - Safety and Installation Manual en  5.01 MB Oct 26, 2018
MAC Encore Wash - Manuel d'Installation et Sécurité fr  2.44 MB Oct 26, 2018
MAC Encore Wash - Sicherheits- und Installationshinweise de  2.44 MB Oct 29, 2018
MAC Encore Wash - Bedienungsanleitung de  282 KB May 18, 2018
MAC Encore Wash - User Guide en  602 KB May 18, 2018
MAC Encore Wash - Guide de l'Utilisateur fr  343 KB May 18, 2018
Illustrations
MAC Encore Wash - 2D dimensions (DWG) en  3.73 MB May 18, 2018
MAC Encore Wash - 2D dimensions (PDF) en  187 KB May 18, 2018
3D Symbols
Vectorworks Symbols 2.6  en  66.4 MB May 01, 2019
CAD Drawings
MAC Encore Wash - 3D dimensions, head vertical (DWG) en  8.09 MB May 18, 2018
MAC Encore Wash - 3D dimensions, head vertical (3DS) en  10.5 MB May 18, 2018
MAC Encore Wash - 3D dimensions, head horizontal (3DS) en  9.66 MB May 18, 2018
MAC Encore Wash - 3D dimensions, head horizontal (DWG) en  9.72 MB May 18, 2018
Compliances
MAC Encore Wash - EU Declaration of Conformity en  437 KB May 18, 2018
MAC Encore Wash - Déclaration de Conformité Européenne fr  494 KB May 18, 2018
MAC Encore Series - ETL Listing Verification   380 KB May 22, 2018
Software
MAC Encore Wash Firmware 1.4.0    389 KB May 10, 2019
MAC Encore Wash Firmware 1.5.0    389 KB Jun 17, 2019
