MAC Encore Wash CLD

Gallery wash cld 2 vert medium
Larger Images

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash CLD is an LED-based alternative to the MAC Viper Wash DX. The feature-packed soft edge moving head offers unparalleled 6000 K crisp, neutral daylight, and doubles as a modern replacement for generic fixtures like HMI based Fresnel fixtures, with the additional benefit of color mixing and movement.

  • Unparalleled 6000 K cold white light quality
  • Super silent cooling and effects operation
  • Best-in-class size/weight/performance ratio
  • NEW LED TECHNOLOGY

    Designed for real life applications, its pure white 6000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head.  High CRI, TM-30 and R9 values ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

  • WHISPER-SILENT

    This is the most silent, soft edge moving head we’ve ever built. All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash CLD is still a stealth operator.

  • COLOR PALETTE

    Precise color temperature control with variable color temperature correction (CTO) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

  • OPTICS

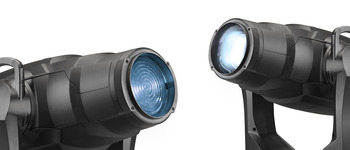

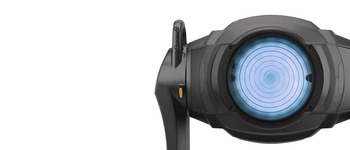

    A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

  • INTERNAL BARNDOORS

    Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam’s wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

  • STURDY, LIGHTWEIGHT DESIGN

    With its best-in-class compact design and premium build-quality, MAC Encore Wash CLD lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (28.5 kg/62.9 lbs.)

Videos

Product Overview

Features

  • Pure white LED engine with 6000 K CCT.
  • No color temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
  • Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel—6 interchangeable dichroic filters + open.
  • Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
  • PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
  • Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
  • Precise and tight iris with adjustable dynamic effects.
  • Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
  • Low weight—28.5 kg/62.9 lbs
  • Foam rubber (SIP) flight case insert for secure shipment.

Tech Specs

PhysicalLength: 452 mm (17.8 in.)Width (across yoke): 480 mm (18.9 in.)Height (maximum): 755 mm (29.8 in.)Height (head straight up): 745 mm (29.4 in.)Weight: 28.5 kg (62.9 lb.)Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
Dynamic EffectsColor mixing: CMY, independently variable 0 - 100%Color temperature control: Variable 6000 - 2700 KColor wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random colorBarn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotationIris: Variable 0 - 100%Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackoutDimming options: Choice of four dimming curvesPre-programmed effects: Two ranges of FX, independent or synchronized/combinedFocus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinityZoom: MotorizedPan: 540°Tilt: 268°Position correction system: Absolute position monitoring
Control and ProgrammingDMX channels: 24Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX16-bit control: Dimming, pan and tiltMovement control options: Tracking and vectorFixture identification: User-settable ID numberDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: Opto-isolated RS-485Fixture software update: USB memory device or over DMX link
OpticsLight source: 6000 K white LEDsTotal LED engine power: 468 WMinimum LED lifetime: 50 000 hours (to >80% luminous output)*Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)*Figure obtained under manufacturer's test conditions
Photometric DataLight engine luminous output: ≥ 39 400 lumensFixture luminous output with Fresnel lens (standard): 11 000 lumensFixture luminous output with PC lens (optional): 12 000 lumensCRI (Color Rendering Index): >80CQS (Color Quality Scale): >80TM-30 Rf (IES TM-30-15 Fidelity Index): >80TM-30 Rg (IES TM-30-15 Gamut Index): >96TLCI (Television Lighting Consistency Index): >70
ConstructionColor: BlackHousing: High-impact flame-retardant thermoplasticProtection rating: IP20
InstallationMounting points: 4 pairs of 1/4-turn locksLocation: Dry location only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 0.2 m (8 in.)Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
ConnectionsAC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)DMX and RDM data in/out: 5-pin locking XLR
ElectricalAC power: 120-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modePower consumption, all effects static, zero light output:64 WHalf-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Typical Power and Current120 V, 60 Hz: 5.0 A, 596 W, PF 0.998208 V, 60 Hz: 2.9 A, 581 W, PF 0.988230 V, 50 Hz: 2.6 A, 580 W, PF 0.981240 V, 50 Hz: 2.2 A, 585 W, PF 0.979Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity.Allow for a deviation of +/- 10%.PF = power factor
ThermalCooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)Maximum surface temperature, steady state, Ta=40° C:75° C (167° F)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
ApprovalsEU safety: EN 60598-2-17, EN 62471, EN62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA C22.2 No. E598-2-17Canadian EMC: ICES-003 Class AAustralia/NZ: RCM

Included ItemsTwo omega brackets with 1/4 turn fasteners for rigging clamp attachment
AccessoriesGelframe MAC Encore: P/N 91001000Set of Followspot Handles MAC Encore: P/N 91001001HUPC Lens Assy MAC Encore Wash: P/N 91616110HUSIP Packaging MAC Encore Family: P/N 91616115HUPC (planoconvex) Lens for MAC Encore Wash: P/N TBACables and connectorsPower Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789Installation hardwareG-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Half-coupler Clamp: P/N 91602005Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007FlightcasesTwo-unit Flightcase for MAC Encore™*: P/N 91515048*Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts
Related ItemsMartin® M-PC 2U incl. Martin® M-DMX USB-DMX Interface : P/N 90737070Martin® M-PC Pro-64 / LJ-4 Controller Kit incl. Martin® M-DMX USB-DMX Interface: P/N 90737060Martin® RDM 5.5 Splitter: P/N 90758150
Ordering InformationMAC Encore™ Wash CLD EPS (in cardboard box, polystyrene packaging): P/N 90234040MAC Encore™ Wash CLD SIP (in cardboard box with SIP foam flightcase insert): P/N 90234045MAC Encore™ Wash CLD, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90234050HU
