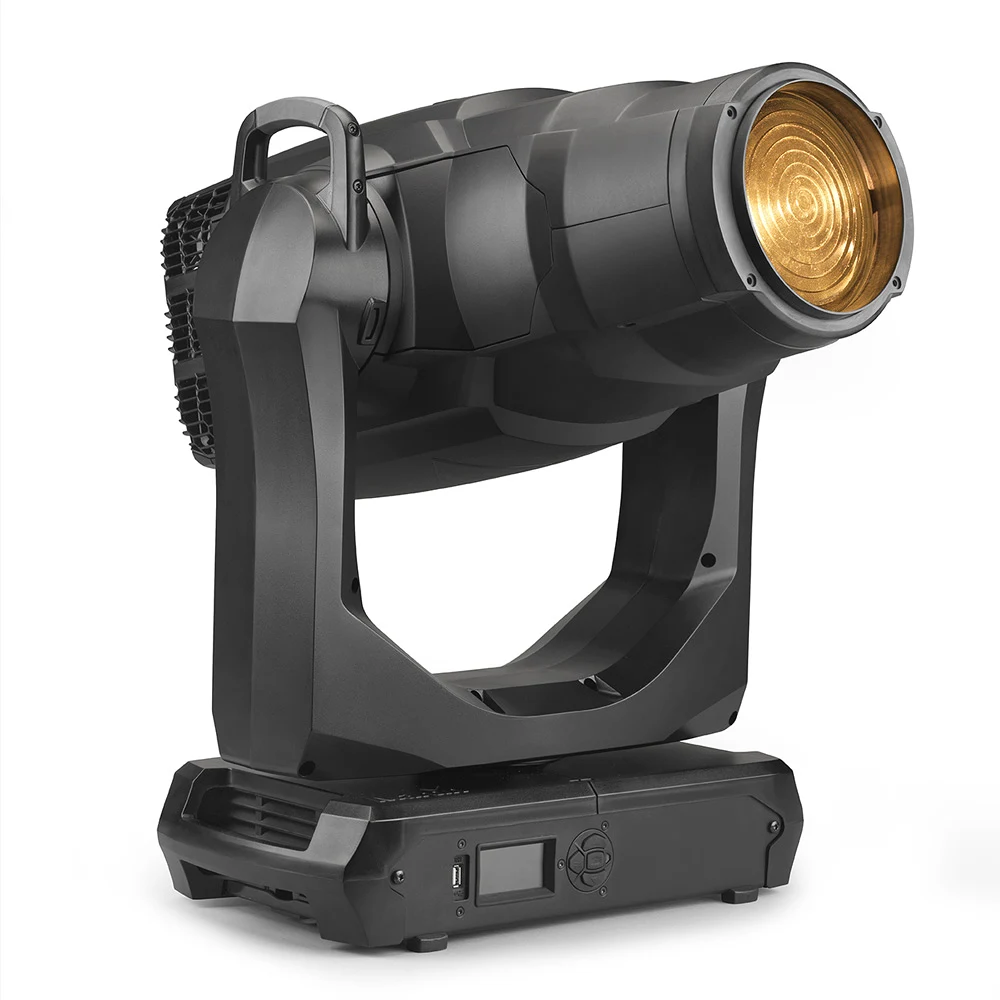

MAC Encore Wash WRM

Högkvalitativ varmljus mjuk kantrörelse moving head

MAC Encore Wash WRM
Större bilder

MAC Encore™ Wash WRM är utformad för att producera rik färg och premiumvitt ljus i ett brett spektrum av tillämpningar där ljuskvalitet är kritisk. Det är en perfekt LED-baserad ersättare för den älskade, nu inställda MAC TW1. Den funktionsrik moving head med mjuk kant erbjuder oöverträffad 3000 K varm volframemulering som verkligen utmanar uteffektskvaliteten från en verklig glödlampa, och fungerar dessutom som ett modernt alternativ till generiska armaturer som volframbaserade Fresnel-armaturer, med den extra fördelen av färgblandning och rörelse.

  • Oöverträffad 3000 K varmt vitt ljuskvalitet
  • Extremt tyst kylning och effektdrift
  • Bästa storleks-/vikt-/prestandaförhållande i klassen

  • NEW LED TECHNOLOGY

    Designed for real life applications, its pure white 3000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head. High CRI, TM-30 and R9 values, ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

  • WHISPER-SILENT

    This is the most silent, soft edge moving head we’ve ever built. All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash WRM is still a stealth operator.

  • COLOR PALETTE

    Precise color temperature control with variable color temperature correction (CTB) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

  • OPTICS

    A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

  • INTERNAL BARNDOORS

    Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam’s wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

  • STURDY, LIGHTWEIGHT DESIGN

    With its best-in-class compact design and premium build-quality, MAC Encore Wash WRM lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (28.5 kg/62.9 lbs.)

featured content

NEW LED TECHNOLOGY

Designed for real life applications, its pure white 3000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head. High CRI, TM-30 and R9 values, ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

featured content

WHISPER-SILENT

This is the most silent, soft edge moving head we’ve ever built. All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash WRM is still a stealth operator.

featured content

COLOR PALETTE

Precise color temperature control with variable color temperature correction (CTB) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

featured content

OPTICS

A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

featured content

INTERNAL BARNDOORS

Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam’s wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

featured content

STURDY, LIGHTWEIGHT DESIGN

With its best-in-class compact design and premium build-quality, MAC Encore Wash WRM lives up to Martin’s tour-proven standards. Its slick form factor offers the highest lumen per kg/lb ratio of its class. Combined, you get the lightest and finest fixture on the market (28.5 kg/62.9 lbs.)

Videor





Funktioner

  • Pure white LED engine with 3000 K CCT.
  • No color temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
  • Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel—6 interchangeable dichroic filters + open.
  • Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
  • PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
  • Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
  • Precise and tight iris with adjustable dynamic effects.
  • Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
  • Low weight—28.5 kg/62.9 lbs
  • Foam rubber (SIP) flight case insert for secure shipment.

Specifikationer

  • Physical Length: 452 mm (17.8 in.) Width: 480 mm (18.9 in.) across yoke Height:

    755 mm (29.8 in.) maximum
    745 mm (29.4 in.) head straight up

     Weight: 28.5 kg (62.9 lb.) Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
    Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: CMY, independently variable 0 - 100% Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color Iris: Variable 0 - 100% Zoom: Motorized Color temperature control: Variable 3000 - 7000 K Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout Dimming options: Choice of four dimming curves Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
    Control and Programming Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX 16-bit control: Dimming, pan and tilt Movement control options: Tracking and vector DMX channels: 24 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Fixture software update: USB memory device or over DMX link
    Optics Light source: 468 W custom Martin LED engine Minimum LED lifetime: 50,000 hours (to >80% luminous output)* Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4) Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5) *Figure obtained under manufacturer's test conditions
    Photometric Data Light engine luminous output: ≥ 31,500 lumens Fixture luminous output with Fresnel lens (standard): 8,500 lumens Fixture luminous output with PC lens (optional): 9,500 lumens CRI (Color Rendering Index) : >90 CQS (Color Quality Scale): >90 TM-30 Rf (IES TM-30-15 Fidelity Index): >90 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >90 CCT: 3000 K (+/- 250 K)

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Installation Mounting points: 4 pairs of 1/4-turn locks Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
    Connections AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) DMX and RDM data in/out: 5-pin locking XLR
  • Electrical

    AC power: 120-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
    Power Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 V
    Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *
    Power Consumption
    Typical: 596 W *
    Idle: 64 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.
    Thermal Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 16 lm/w LWR*: 333 lm/kg (151 lm/lb)

    LWR = Lumen-to-Weight Ratio
    Approvals EU safety: EN 60598-2-17, EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. E598-2-17 Canadian EMC: ICES-003 Class A Australia/NZ: RCM Thailand: TIS
    Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Gelframe MAC Encore: P/N 91001000 Set of Followspot Handles MAC Encore: P/N 91001001HU PC Lens Assy MAC Encore Wash: P/N 91616110HU SIP Packaging MAC Encore Family: P/N 91616115HU Cables and connectors: Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797 Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174 Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789 *Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts Installation hardware: G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Half-coupler Clamp: P/N 91602005 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007 Flightcase: Two-unit Flightcase for MAC Encore™*: P/N 91515048
    Verified Third-Party Accessories

    Beam Control
    MAC Encore Wash Top Hat: P/N City Theatrical 2779
    Ordering Information MAC Encore™ Wash WRM EPS (in cardboard box, polystyrene packaging): P/N 90234025 MAC Encore™ Wash WRM SIP (in cardboard box with SIP foam flightcase insert): P/N 90234030 MAC Encore™ Wash WRM, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90234035HU
