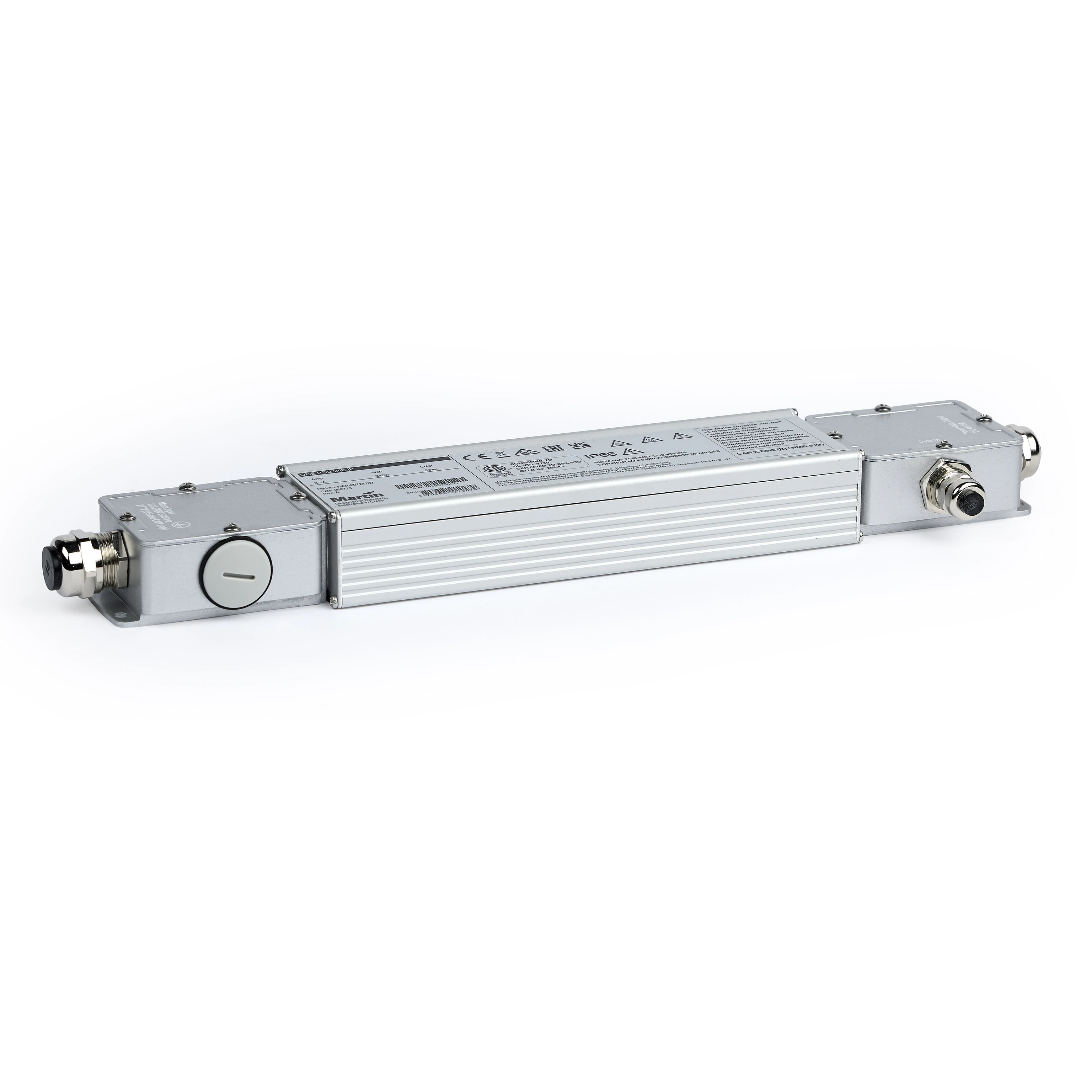

The Martin DCE PSU 240 IP is an indoor/outdoor external power supply unit that can supply 48 VDC power and data to Martin Creative LED fixtures and is ideal for install applications. It provides a basic alternative to the P3 PowerPort solutions. It features a rugged extruded aluminum housing, auto-ranging 100-277 VAC power input, and full protection with auto-recovery. It features line-voltage input, Ethernet data input and 1 power+data output for connection of fixtures. It is fitted with internal wiring terminals to facilitate customization of cable lengths on-site and can be wall-mounted.
รูปภาพขนาดใหญ่
คุณสมบัติ
- Basic indoor/outdoor power supply unit for install Martin Creative LED fixtures
- Ideal for install applications
- Features 1 power+data output for connection of fixtures
- Fitted with internal wiring terminals, to facilitate customization of cable lengths on-site
- Can be wall-mounted
- IP66 rated
รายละเอียดเพิ่มเติม
Martin P3 PowerPort solutions are ideal for system Integrators building a system containing Martin Creative LED fixtures, rental companies creating a fleet of fixtures and supporting infrastructure to cover a wide variety of applications, and installation customers complementing their fixture-installation with the needed supporting infrastructure.
ข้อมูลจำเพาะ
-
Physical
Length: 420.0 mm (16.5 in.)
Width: 86.0 mm (3.4 in.)
Height: 39.0 mm (1.5 in.)
Weight: 1.6 kg (3.6 lbs.)ConstructionColor: Clear Anodized Aluminium
Housing Material: Aluminium
Protection Rating: IP 66
NEMA Enclosure Rating: Type 4X
Impact Resistance: IK 08
Corrosion Resistance: ISO 12944-6: 2018; C5 High, Test regime ISO 9227, 1440h
Vibration resistance: 1.0g Sinusoidal (IEC 60068-2-6) and 0.7g RMS Random (IEC 60068-2-64)InstallationOrientation: Any
Mounting: Flanges for installation on flat surface
Location: indoor or permanent outdoorConnectionsPower Input: Toolless terminal block
Cable Gland: 1x M20*1.5 (power input, supporting cables 8-13 mm) incl. closing plug
Ethernet Input: Toolless splice connection
Cable Gland: 1x M12*1.5 (ethernet input, supporting cables 5-8 mm) incl. closing plug
DC Power output: Toolless terminal block
Network output: Toolless splice connection
Cable Gland: 1x M20*1.5 (DC power and network output, supporting cables 6.5-10.5 mm) incl. closing plug
Surge protection: 4 KVOutput PortsQuantity: 1
Power: 48 VDC / 5 A
Ethernet: 100Mbit (P3, sACN, Art-Net)ElectricalAC power: 100-277 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 6.7 A
Typical earth-leakage current: 0.50 mA
Power Factor: 0.96 @ 100 V / 120 V , 0.95 @ 208 V / 230 V / 240 V / 277 V
Max current draw: 3.0 A @ 100 V / 120 V , 1.5 A @ 208 V / 230 V / 240 V , 1.2 A @ 277 V
Typical current draw: 2.8 A @ 100 V / 120 V , 1.3 A @ 208 V / 230 V / 240 V , 1.0 A @ 277 V *
Power Consumption
Maximum: 240 W
Typical: 240 W *
Idle: 3 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: output at full capacity with all connected fixtures at full output white.
Idle: output at full capacity with all connected fixtures at zero output.ThermalCooling: Convection
Maximum Ambient Temperature (Ta max): 40° C (104° F)
Minimum Ambient Temperature (Ta min): -30° C (-22° F)
Maximum Surface Temperature, steady state, at 40° C ambient: 76° C (169° F)
Typical Heat Dissipation (calculated, +/- 10%): 62 BTU/hr. -
Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant FSC: Certified cardboard inlay and outer packagingApprovals Global CB Certification/IECEE: IEC 61347-2-13 EU safety: EN 61347-2-13, EN 61347-1 EU EMC: EN IEC 55015, EN IEC 61547, EN IEC 61000-3-2, EN 61000-3-3 US safety: UL 8750 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 250.13 Canadian EMC: ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCACompatible Fixtures
VDO Sceptron XB
Exterior Dot-1 Pro (via Exterior DC-Feeder)
Exterior Dot-4 Pro (via Exterior DC-Feeder)
Exterior Dot-9 Pro (via Exterior DC-Feeder)
Exterior Dot-HP ProIncluded Items1x Multi-Language Safety & Installation Manual
Closing plugs installed in all cable glandsRelated ItemsP3 PowerPort 2000: P/N MAR-90721200
P3 PowerPort 500 IP Rental: P/N MAR-90721201
P3 PowerPort 500 IP Install: P/N MAR-90721202
DCE DataSplitterBooster IP: P/N MAR-90721204AccessoriesPre-Assembled Hybrid DCE Cables
DC + Ethernet Cable DCE-DCE 1m: P/N MAR-91700100
DC + Ethernet Cable DCE-DCE 2.5m: P/N MAR-91700101
DC + Ethernet Cable DCE-DCE 5m: P/N MAR-91700102
DC + Ethernet Cable DCE-DCE 10m: P/N MAR-91700103
DC + Ethernet Cable DCE-DCE 25m: P/N MAR-91700104Bulk Hybrid DCE Cables
DC + Ethernet Cable 100m: P/N MAR-91700105
DC + Ethernet Cable LSZH 100m: P/N MAR-91700106Field-Installable DCE Connectors
Field-installable Connector DCE Male: P/N MAR-91700107
Field-installable Connector DCE Female: P/N MAR-91700108Closing Caps for DCE Connectors
Closing Cap Male DCE Connector: P/N MAR-91700109
Closing Cap Female DCE Connector: P/N MAR-91700110Hybrid DCE Adapters
DC + Ethernet Adapter DCE Male-Male: P/N MAR-91700111
DC + Ethernet Adapter DCE Female-Female: P/N MAR-91700112
DC + Ethernet Adapter EtherCON+Wires to DCE: P/N MAR-91700113
DC + Ethernet Adapter DCE to EtherCON: P/N MAR-91700114
DC + Ethernet Adapter Bare Wires to DCE: P/N MAR-91700115Ordering InformationDCE PSU 240 IP: P/N MAR-90721203
