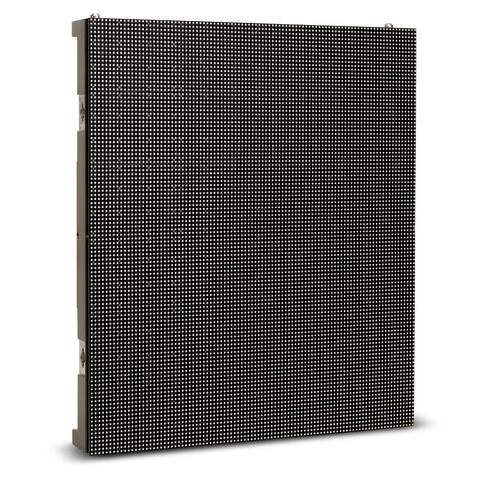

VDO Face 5 HB LED Video PanelWidth: 500 มม. (19.7 นิ้ว)Height: 562.5 มม. (22.2 นิ้ว)Depth: 105 มม. (4.2 นิ้ว)Weight: 10.5 กก. (23.2 ปอนด์)VDO Face Single HeaderWidth: 500 มม. (19.7 นิ้ว)Height: 36 มม. (1.5 นิ้ว)Depth: 69 มม. (2.8 นิ้ว)Weight: 2.4 กก. (5.3 ปอนด์)VDO Face Double HeaderWidth: 1000 มม. (39.4 นิ้ว)Height: 36 มม. (1.5 นิ้ว)Depth: 69 มม. (2.8 นิ้ว)Weight: 5.0 กก. (11.1 ปอนด์)
Addressing and status: Via Martin™ P3 System ControllerMapping: Via Martin™ P3 System ControllerFirmware update: Via Martin™ P3 System Controller
Device status: Multicolor status LEDDevice testing and reset: Pushbutton
Pitch (pixel center-to-center): 5.208 มม. (0.205 นิ้ว)LED type: SMD RGB, black housing, white reflectorViewing angle (horizontal x vertical): 160° x 140°LED Refresh rate: 3400 HzColor resolution: 16 bits per color (48 bits per pixel)Resolution, one panel: 96 x 108 pixelsPixels per panel: 10368Color and intensity calibration: Pixel-level
Brightness, calibrated mode: 5000 Nit
Video signal processor: From Martin™ P3 System Controller rangeLatency between first and last device: NoneBrightness controlGamma correction and controlColor temperature controlColor space controlCalibration processingSynchronization
Signal type: Gigabit EthernetProtocol: Proprietary Martin™ P3Hot pluggable: Yes, electrically insulated at all connectionsCable type: Ethernet, CAT 5e or betterCable length: Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switchMax. number of devices per chain: 48 (split chains and multiple chains possible)

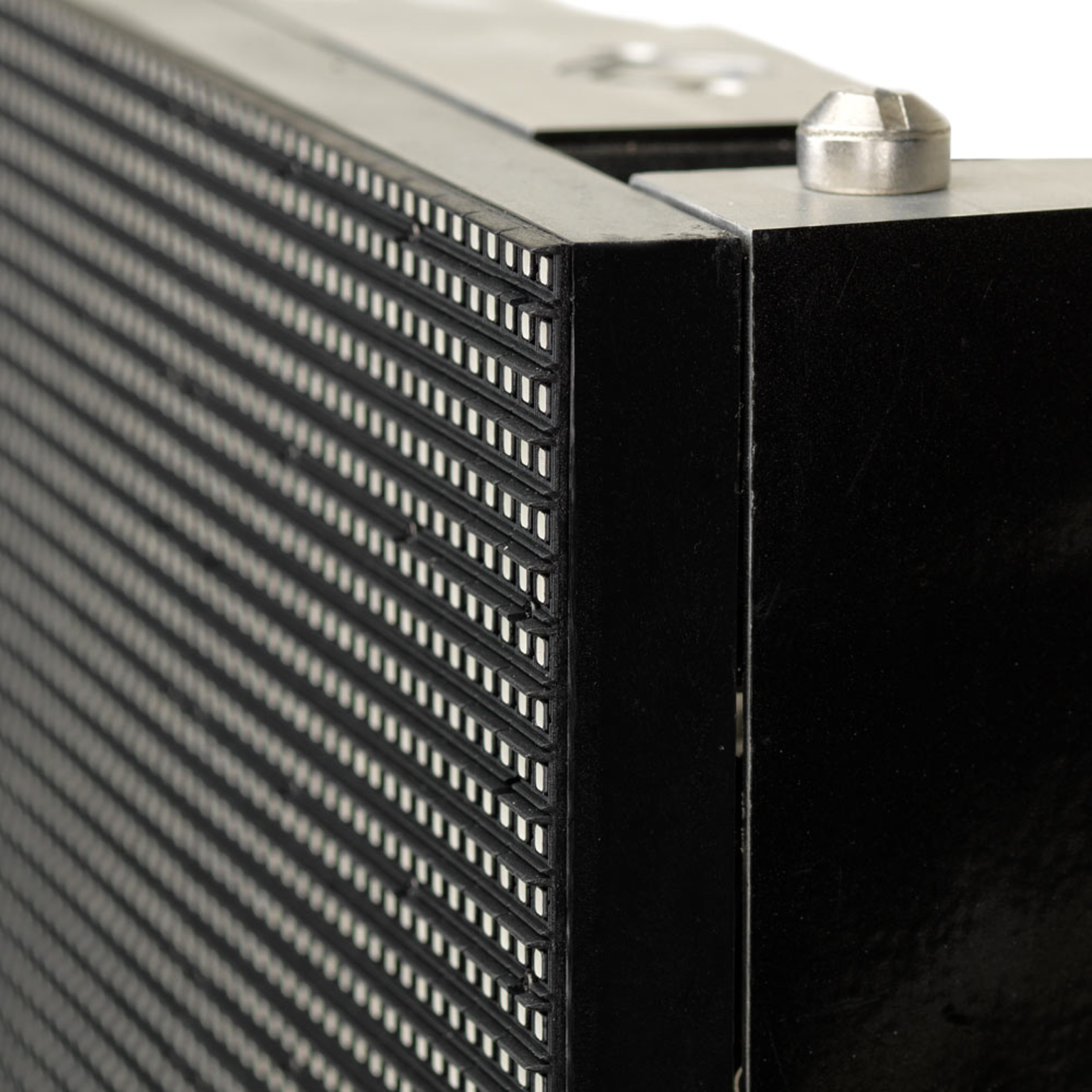

Panel frame: Die-cast aluminumLED modules per panel: 4 x quick-install hot-swappable LED blocksColor: Matt blackProtection rating: IP65, NEMA 4RoHS compliant
Orientation: AnyMounting: Vertical columns suspended from VDO Face 5 headersMax. suspended vertically from header: 10 panels (safety factor 10)Max. suspended vertically from header: 16 panels (safety factor 6)Max. suspended from panel clamp (any orientation): 1 panelWind pressure safety limit: Up to Beaufort Force 8Panel interlocking: Quick-lock mechanism
Power in: Neutrik PowerCON TRUE1Power thru: Neutrik PowerCON TRUE1Data in: Neutrik EtherCON Cat 6Data thru: Neutrik EtherCON Cat 6
AC power: 100-240 V nominal, 50/60 HzPower supply unit: Integrated, auto-sensing multi-voltagePeak power consumption (approx., at full intensity, full white): 191 W per panel / 679 W per m2Typical power consumption (with typical video content): 64 W per panel / 226 W per m2Inrush current (half-cycle RMS): 7.9 A
Cooling: ConvectionMaximum ambient temperature (Ta max.), max. intensity, full white: 45° C (113° F)Minimum ambient temperature (Ta min.): -20° C (-4° F)Typical heat dissipation (calculated, per panel with typical video content): 220 BTU/hr.
EU safety: EN 60950-1, EN 62311, EN 62471EU EMC: EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3US safety: UL 60950-1US EMC: FCC Title 15, Subpart B, Class A, ANSI C63.4Canadian safety: CSA C22.2 No. 60950-1Canadian EMC: ICES-003 Class AAustralia/NZ: RCM
อุปกรณ์บริการVDO Face Front Service Tool: P/N 91616067ฮาร์ดแวร์การติดตั้งVDO Face Panel Connection Plate incl. bolts: P/N 91616070
