• Physical Weight: 41.0 kg (90.4 lbs.) Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.) Length (head): 608 mm (24.0 in.) Length (base): 416 mm (16.4 in.) Width (base): 290 mm (11.4 in.) Width (across yoke): 431 mm (17.0 in.) Height (head straight up): 802 mm (31.6 in.) Height (maximum): 851 mm (33.5 in)
  Dynamic Effects Color mixing: CMY, independently variable 0-100% Color wheel: 6 color filters plus open Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Zoom: Motorized Color temperature control: Variable 6500 - 2700 K Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position. Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear) Frost: Soft frost effect and heavy frost effect Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
  Control and Programming Control options: DMX Setting and addressing: Control panel with backlit LCD display 16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt DMX channels: 42 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
  Optics Front lens diameter: 160 mm (6.3 in.) Zoom range: 7° - 56° (1:8) Light source: 800 W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Manufacturer´s figure obtained under manufacturer´s test conditions
  Photometric Data

  Light engine luminous output: 70,000 lumens LED refresh rate : 3600 Hz Standard Fixture luminous output: 35,000 lumens CRI (Color Rendering Index): >70 CQS (Color Quality Scale): >67 TM-30 Rf (IES TM-30-15 Fidelity Index): >65 TM-30 Rg (IES TM-30-15 Gamut Index): >93 TLCI (Television Lighting Consistency Index): >44 CCT: 6900 K (+/- 250 K) Peak Luminous Intensity: 1,870,000 cd With Optional CRI Boost Filter Fixture luminous output: 25,000 lumens CRI (Color Rendering Index): >79 CQS (Color Quality Scale): >76 TM-30 Rf (IES TM-30-15 Fidelity Index): >77 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >57 CCT: 6500 K (+/- 250 K)Peak Luminous Intensity: 1,276,000 cd
  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Lamp
  Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP 20
  Gobos Maximum image diameter: 25 mm (0.98 in.) Gobo material: Borofloat 33 External diameter: 30.0 mm +0 / -0.2 mm (1.181 in. +0 / -0.008 in.) Maximum gobo thickness: 1.1 mm (0.04 in.) Coating: Heavy matted aluminum
  Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
  Connections DMX and RDM data in/out: 5-pin locking XLR AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
• Electrical

  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode
  Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
  Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
  Typical current draw: 10.8 A @ 120 V , 5.5 A @ 230 V *
  Power Consumption
  Maximum: 1397 W
  Typical: 1270 W *
  Idle: 64 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: full output white, no effects moving, regulated fan speed.
  Idle: no output, no effects moving, regulated fan speed.

  Thermal Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 4340 BTU/hr.
  Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 41.4 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.7 dB(A)
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 30.2 lm/W LWR*: 853 lm/W (387 lm/lb)

  LWR = Lumen-to-Weight Ratio

  Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM
  Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
  Related Items Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com Martin Companion Cable USB/DMX hardware interface: P/N 91616091
  Accessories

  Conversion kits
  Framing Module (converts ERA 800 Profile to Performance): P/N 5125961-00
  Gobo Wheel 3 Effects Module (converts ERA 800 Performance to Profile): P/N 5131799-00
  Optical accessories
  CRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614059
  Power input cables
  Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
  Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
  Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
  Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
  Power relay cables, 16 A
  Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
  Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
  Power connectors
  Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
  Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
  Installation hardware
  G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  Half-coupler Clamp: P/N 91602005
  Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
  T-shape omega bracket with 1/4 turn, PN 91602008

  Verified Third-Party Accessories

  Beam Control
  ERA 800 Performance Top Hat: P/N City Theatrical 2820
  ERA 800 Performance Concentric Ring: P/N City Theatrical 2821
  ERA 800 Performance Hexcel Louver: P/N City Theatrical 2822

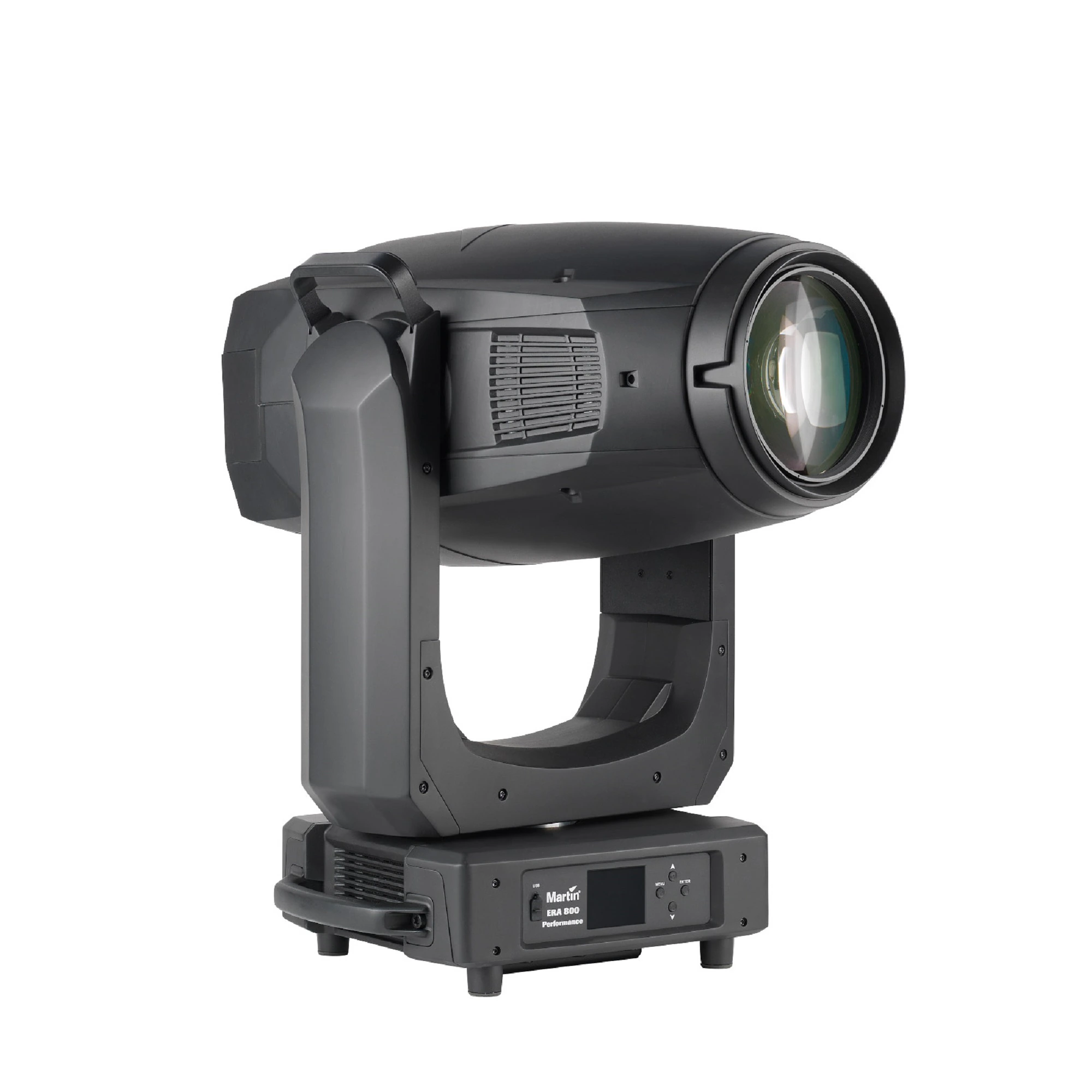

  Ordering Information Martin ERA 800 Performance in cardboard box: P/N 9025122052 Martin ERA 800 Performance – White in cardboard box: P/N 9025122053 Flightcase, two unit, for 2 x ERA 800 Performance / Profile : P/N 91512255

•
