ERA 800 Performance

800W LED-based profile with framing and CMY color mixing

Larger Images

Designed to fulfill the demand for an ultra-bright, compact, tour-worthy moving head, the Martin ERA 800 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.

It features a highly efficient, super-bright 800W white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, variable color temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft and heavy frost filters.

The ERA 800 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage.

Perfect for big, stadium-sized stage and live productions, the Martin ERA 800 Performance is ideal for a long list of scenarios, requiring an extremely bright, yet truly versatile LED profile that offers near limitless design and usage potential.

  • FULL FRAMING SYSTEM

    The full curtain framing system allows each of the four framing blades to cross the full beam independently for complete blackout. In addition, the entire framing module can rotate 120 degrees, allowing for precise and accurate image projection for the desired stage area. When fully focused, gobos can be framed with a soft edge, enabling designers a high degree of flexibility in the lighting design.

  • 800 WATT LED LIGHT SOURCE

    With an efficient 800 watt light source, the ERA 800 Performance delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

  • GREAT COLOR PALETTE

    The ERA 800 Performance features precise color temperature control with variable color temperature correction (CTO) and vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps and extends overall color gamut and brightness.

  • 1:8 ZOOM RANGE

    With 7 to 56 degrees of zoom, the ERA 800 Performance works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.

  • COMPACT AND DESIGNED FOR THE ROAD

    The ERA 800 Performance is very compact and low weight for its class making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

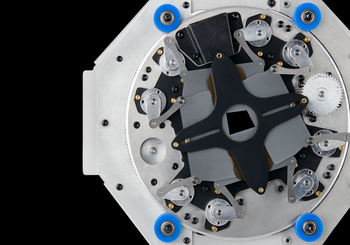

FULL FRAMING SYSTEM

The full curtain framing system allows each of the four framing blades to cross the full beam independently for complete blackout. In addition, the entire framing module can rotate 120 degrees, allowing for precise and accurate image projection for the desired stage area. When fully focused, gobos can be framed with a soft edge, enabling designers a high degree of flexibility in the lighting design.

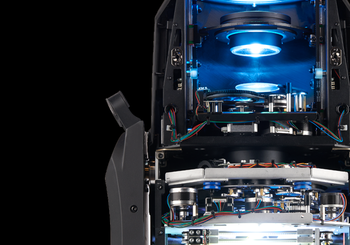

800 WATT LED LIGHT SOURCE

With an efficient 800 watt light source, the ERA 800 Performance delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

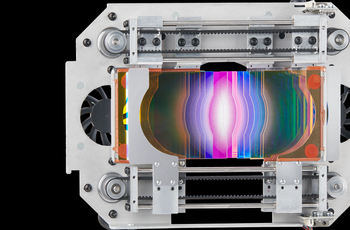

GREAT COLOR PALETTE

The ERA 800 Performance features precise color temperature control with variable color temperature correction (CTO) and vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps and extends overall color gamut and brightness.

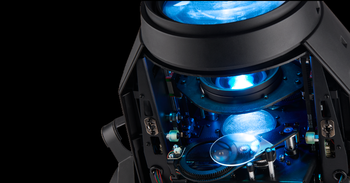

1:8 ZOOM RANGE

With 7 to 56 degrees of zoom, the ERA 800 Performance works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.

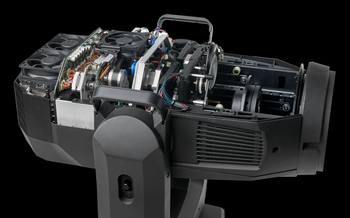

COMPACT AND DESIGNED FOR THE ROAD

The ERA 800 Performance is very compact and low weight for its class making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

Videos

Martin ERA 800 Performance



Features

  • Bright 800 watt / 6,500K LED light source
  • 34,000 lumen output
  • Crisp optics with flat field
  • 1:8 Fast zoom
  • Fat beam look with 160 mm front lens
  • CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • 6-slot color wheel –for added color choice and split color effects
  • Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
  • 6 rotating/indexing gobos – All renowned Martin glass gobos
  • 7 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Iris – Fast and tight iris
  • Two prisms - 4-facet and linear – rotation and index control for dynamic effects
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
  • Heavy frost – for wash light effects
  • Compact and low weight design

Specifications

  • Dynamic Effects Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Electronic dimming: 0 - 100%, four dimming curve options Color mixing: CMY, independently variable 0-100% Color temperature control: Variable 6500 - 2700 K Color wheel: 6 color filters plus open Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Zoom: Motorized Focus: Motorized Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position. Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear) Frost: Soft frost effect and heavy frost effect Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed
    Control and Programming Control options: DMX 16-bit control: Dimming, pan and tilt Setting and addressing: Control panel with backlit LCD display DMX channels: 42 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
    Optics Front lens diameter: 160 mm Zoom range: 7° - 56° (1:8) Light source: 800W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* *Manufacturer´s figure obtained under manufacturer´s test conditions
    Photometric Data Light engine luminous output: 70000 lumens Fixture luminous output: 34000 lumens CRI (Color Rendering Index) : >70 CCT: 6500 Kelvin LED refresh rate : 1200 Hz
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP 20
    Gobos Gobo diameter: 30.0mm +/-0.2mm (+/- 0.008 in.) Maximum image diameter: 25mm (0.98 in.) Gobo thickness, maximum: 1.1 mm (0.04 in.)
    Installation Mounting points: Two quarter-turn brackets for rigging Orientation: Any
    Connections AC power in, thru: Neutrik powerCON TRUE1 DMX data in/out: 5-pin locking XLR
  • Electrical AC power: 100-240V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Idle Consumption: 94 W, all effects static, zero light output Half-cycle RMS inrush current at 230 V, 50 Hz: 52.3A
    Typical Power and Current 120 V, 60 Hz: 10.8A, 1270W, PF 0.99 230 V, 50 Hz: 5.5A, 1240W, PF 0.97 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
    Thermal Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 4340 BTU/hr.
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
    Included Items 2 x Omega brackets for rigging clamp attachment
    Accessories Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

    Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Connectors:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)
    Ordering Information Martin ERA 800 Performance in cardboard box: P/N 9025122052 Martin ERA 800 Performance – White in cardboard box: P/N 9025122053 Flightcase, two unit for ERA 800: P/N 91512255

Downloads

  Version Language Size Uploaded
Specifications
ERA 800 Performance - Spec Sheet
updated: Dec 04, 2019
    1.13 MB Dec 04, 2019
CAD Drawings
ERA 800 2D Dimensions
updated: Nov 12, 2019
    2.92 MB Nov 12, 2019
