Length:
175 mm (6.89 inch.)
Width:
351 mm (13.82 in.)
Height:
438 mm (11.93 in.)
Weight:
17.7 kg (39.0 lbs)
Strobe:
Regular and random strobe (in extended mode)
Intensity:
0 - 100 % continuous dimming
Color mixing:
RGB + CTC (Color Temperature Control)
Color temperature control:
1000 K - 12500K in 50K steps
Control systems:
DMX, RDM
User interface:
Magnetic sensor for local diagnostics and focusing
Stand-alone control:
Up to 20 scenes with individual fade/hold times
Control resolution:
8-bit DMX control of each color
Dimmer Resolution:
16-bit DMX control of intensity
DMX channels:
6/3/7/4 (Standard/Basic/Extended/Raw)
DMX compliance:
USITT DMX512/1990
RDM compliance:
ANSI/ESTA E1.20
DMX/RDM Transceiver:
Galvanic-isolated RS-485
Firmware update:
Serial upload via DMX link

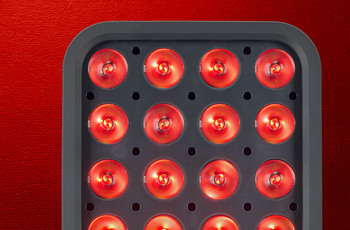

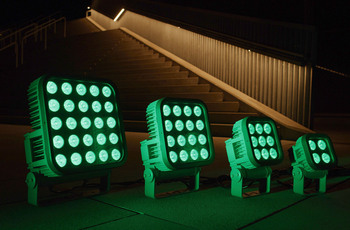

Light source: 25 x RGBW LEDs
Total LED power: 1000 W (25 x 40 W)
Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
LED manufacturer: Osram
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
*Figure obtained under manufacturer's test conditions at Ta = 25° C.
Native beam angle:
8°
Narrow micro lens:
10°
Medium micro lens:
16°
Wide micro lens:
30°
Very Wide micro lens:
54°
Asymmetric micro lens:
9° x 56°
CRI (Color Rendering Index) :
> 70
CCT:
1000K - 12500K (Default 4000K)
2400K:
5900 lm
4000K:
7500 lm
6500K:
10400 lm
Full Output:
10400 lm
Red:
3260 lm
Green:
6680 lm
Blue:
2830 lm
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.
Housing:
Cast Aluminum
Color:
Traffic grey RAL 7042 - other colors available on request
Surface treatment:
Anodized and electrostatic powder-coated
Protection rating:
IP66
Effective Projected Area (EPA):
0.149 m² / 0.180m²
Impact resistance:
IK08
Corrosion resistance:
C5 High (ISO 12944-6)
Vibration resistance:
1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Mounting:
Adjustable bracket
Orientation:
Any
Minimum distance to illuminated surfaces:
0.4 m (1.3 ft.)
Power connection:
2 m (6.5 ft.) cable tail open ended
Power input cable type, EU models:
H07RN-F 3G 1.0 mm², 450/750V, VDE
Power input cable type, US models:
PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
Data connection:
2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
Hybrid power/data cables (in & thru) 8-pin custom connectors available on request
AC power:
100 - 240 / 277 V nominal, 50/60 Hz
Power supply unit:
Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current:
14 A
Surge protection:
4 KV
Max earth leakage:
0.5 mA
Power factor:
0.99 @110 V / 120 V, 0.96 @208 V / 230V, 0.90 @277 V
Max current draw:
2.50 A @100 V, 2.1 A @120 V, 1.1 A @230 V, 0.90 A @ 277 V
Maximum Power Consumption:
250 W (reduced mode 200W)*
Idle:
4.0 W*
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity
Cooling:
Convection
Maximum ambient temperature:
45° C (113° F)*
Minimum ambient temperature:
-30° C (-22° F)**
Total heat dissipation (calculated, +/- 10%):
853 BTU/hr
*Above this temperature, the fixture regulates output to protect from overheating.
**Power must be maintained below -20° C (-4° F)
RoHS:
Compliant
REACH:
Compliant
WEEE:
Compliant
Proposition 65:
Compliant
Packaging:
FSC certified cardboard inlay and outer box
Efficacy (max output):
42 lm/W
LWR*:
588 lm/kg (267 lm/lb)*
*LWR = Lumen-to-Weight Ratio
Global CB Certification/IECEE:
IEC 60598-2-5 (IEC 60598-1)
EU safety:
EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
EU EMC:
EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3
US safety:
ANSI/UL 1598
US EMC:
47 CFR Part 15 Class B
Canadian safety:
CSA C22.2 No. 250.0
Canadian EMC:
ICES 003(B), ICES 005(B)
Australia/NZ:
RCM
United Kingdom:
UKCA
India:
BIS IS 10322(Part5/section5)
Korea:
KS C 9832, KS C 9835
Exterior Wash Pro XL QUAD, EU, white:
P/N MAR-90590104
Exterior Wash Pro XL QUAD, EU, grey:
P/N MAR-90590004
Exterior Wash Pro XL QUAD, US, grey:
P/N MAR-90590008
Micro Lens Pro XL - Narrow:
P/N MAR-90590041
Micro Lens Pro XL - Medium:
P/N MAR-90590042
Micro Lens Pro XL - Wide:
P/N MAR-90590043
Micro Lens Pro XL - Very Wide:
P/N MAR-90590044
Micro Lens Pro XL - Asymmetric:
P/N MAR-90590045
Baffle Snoot Pro XL QUAD:
P/N MAR-90590020
Hybrid PD cable tail In/Out 0.5 m, black:
P/N MAR-91700020
Attachment plate for safety wire:
P/N MAR-90590050
Hybrid PD cable tail In/Out 0.5 m, white:
P/N MAR-91700022
Exterior Multitool:
P/N MAR-90590025
Junction Box Power DMX to PD:
P/N MAR-91700019
