Length:
418 mm (16.5 in.)
Width:
328 mm (13.0 in.)
Height:
588 mm (23.2 in.)
Weight:
18 kg (39.7 lbs.)
Color wheel 1:
7 colors plus open, rotation with variable direction and speed
Color wheel 2:
7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating gobo wheel:
7 gobos plus open, wheel rotation, gobo indexing, rotation and shake
Static gobo wheel:
8 gobos plus open, wheel rotation and shake
Iris:
Motorized
Prism:
Indexing and rotation with variable direction and speed
Electronic dimming:
0 - 100%, four dimming curve options
Electronic shutter effect:
Strobe effect, pulse effects, instant open and blackout
Pan:
540°
Tilt:
270°
Pan and tilt speed:
Adjustable via onboard control panel and DMX
Focus:
Motorized
Control options:
DMX, standalone
Setting and addressing:
Control panel with backlit graphic display
DMX channels:
17
Standalone trigger options:
Music trig, auto trig
Standalone sequences:
4 pre-programmed shows
Standalone memory:
20 scenes
Music trig sensitivity:
Adjustable
DMX compliance:
USITT DMX512/1990
Light source:
180 W LED engine
Minimum LED lifetime:
20,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer´s test conditions.
Efficacy:
25.5 lumens per watt
Cut-off angle:
16°
Total output:
7100 lumen
Housing:
High-impact flame-retardant thermoplastic
Color:
Black
Protection rating:
IP20
Gobo diameter:
26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter:
22.0 mm (0.87 in.)
Gobo thickness, minimum:
0.3 mm (0.01 in.)
Gobo thickness, maximum:
3.5 mm (0.14 in.)
Gobo material:
Steel, aluminum or borosilicate glass
Mounting points:
Two quarter-turn brackets for rigging clamps
Location:
Dry location only, must be fastened to surface or structure
Orientation:
Any
AC power:
100-240 V nominal, 50/60 Hz
Typical total power consumption:
300 W
Power consumption figures are typical, not maximum. Allow for +/-10% variation.
Cooling:
Forced air, temperature controlled
Maximum ambient temperature (Ta max.):
40° C (104° F)
Minimum ambient temperature (Ta min.):
0° C (32° F)
Total heat dissipation (calculated, +/- 10%):
1010 BTU/hr. (at full intensity, full white)
EU safety:
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC:
EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety:
UL 1573
US EMC:
47 CFR Part 15 Class A
Australia/NZ:
RCM
Power cable, 1.5 m (4.9 ft.), without mains plug
Two Omega clamp attachment brackets with 1/4-turn fasteners
Martin™ RDM 5.5 Splitter:
P/N 90758150
Martin Companion Cable:
P/N 91616091
Martin Companion Software Suite (including firmware uploader):
Free download from www.martin.com
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

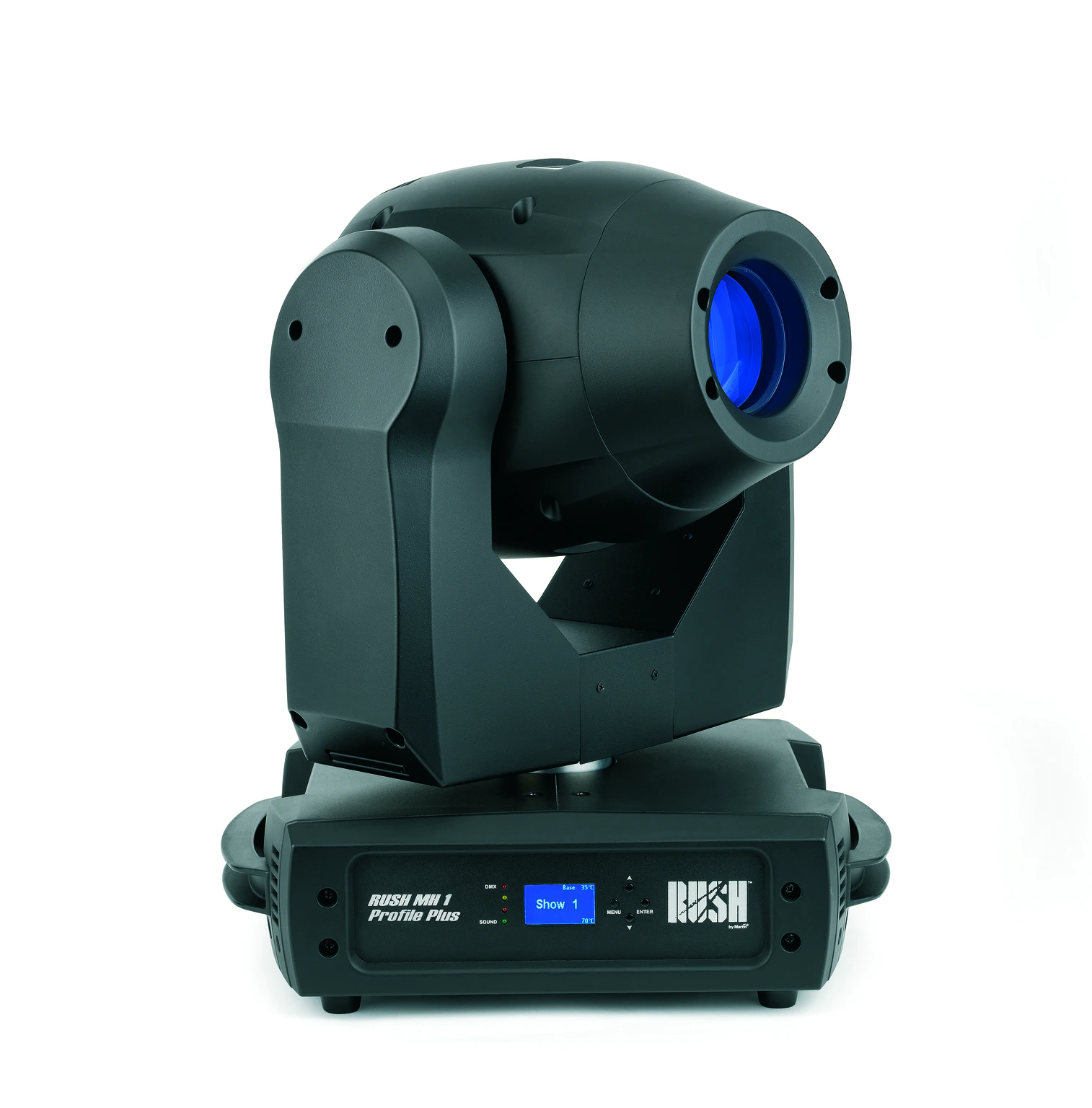

RUSH MH 1 Profile Plus™ in cardboard box:
P/N 90280050
