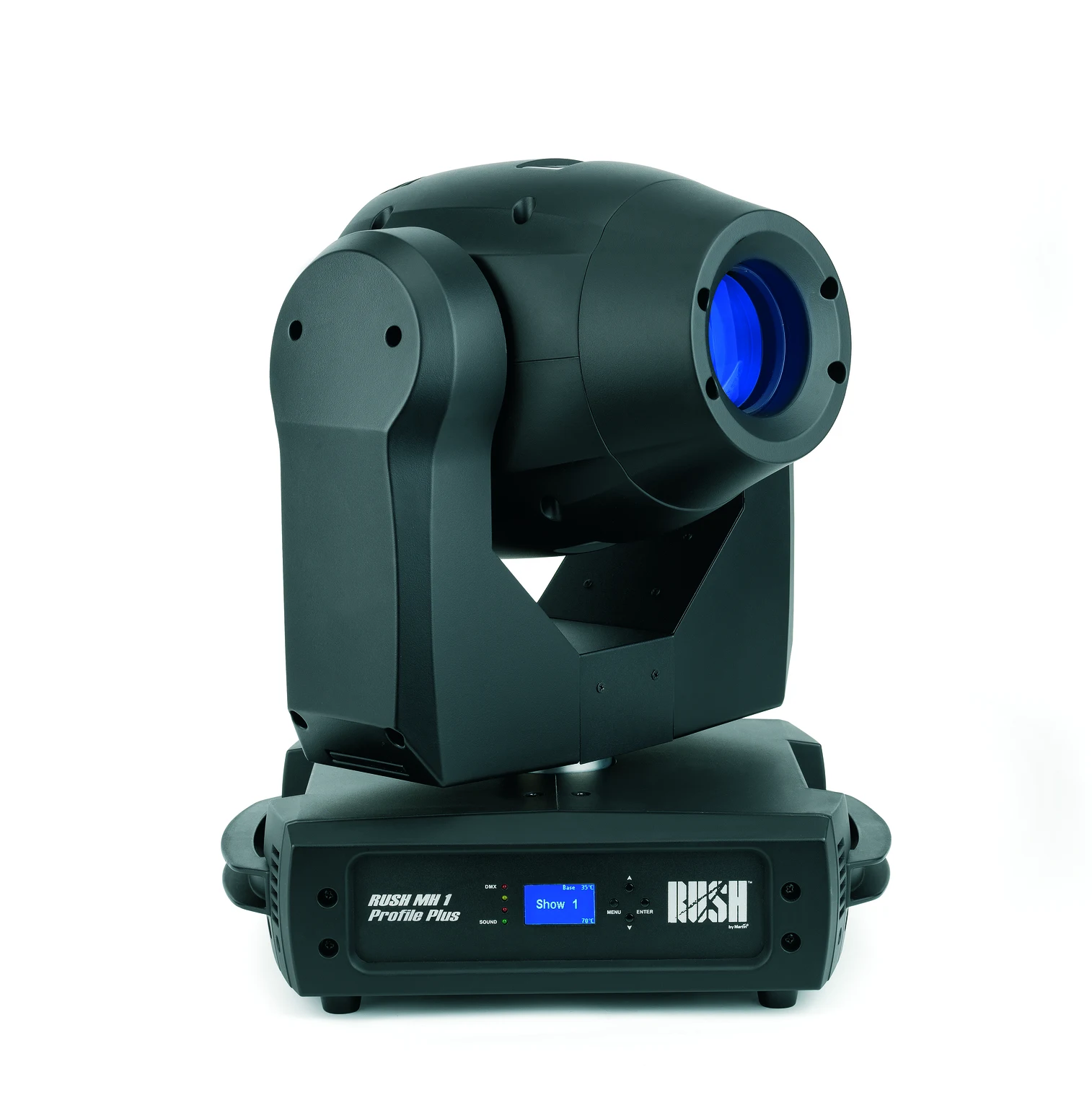

RUSH MH 1 Profile Plus

Larger Images

This super bright LED profile moving head is even brighter than its predecessor RUSH MH 1 Profile with  50% more output. Efficient optics with an increased beam angle from 13 degrees to 16 degrees punches out a variety of effects and colors from two gobo wheels and two color wheels. For added versatility and effect, it also houses an electronic dimmer and strobe, iris and 3-facet prism and an improved cooling system for quieter operation.

  • 50 % increase in lumen output
  • 16 degree beam angle
  • Regulated fan control for quiet operation

Videos

RUSH MH 1 Profile Plus



Features

  • LED profile moving head
  • Super bright - efficient optics
  • Rotating gobo wheel
  • Fixed gobo wheel
  • 2 x color wheels
  • Electronic dimming and strobe
  • Iris and 3-facet prism
  • 3 & 5 pin XLR

Tech Specs

PhysicalLength: 418 mm (16.5 in.)Width: 328 mm (13.0 in.)Height: 588 mm (23.2 in.)Weight: 18 kg (39.7 lbs.)
Dynamic EffectsColor wheel 1: 7 colors plus open, rotation with variable direction and speedColor wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speedRotating gobo wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shakeStatic gobo wheel: 8 gobos plus open, wheel rotation and shakeElectronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackoutPrism: Indexing and rotation with variable direction and speedIris: MotorizedFocus: MotorizedElectronic dimming: 0 - 100%, four dimming curve optionsPan: 540°Tilt: 270°Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and ProgrammingControl options: DMX, standaloneDMX channels: 17Standalone trigger options: Music trig, auto trigStandalone sequences: 4 pre-programmed showsStandalone memory: 20 scenesMusic trig sensitivity: AdjustableSetting and addressing: Control panel with backlit graphic displayDMX compliance: USITT DMX512/1990
OpticsLight source: 180 W LED engineMinimum LED lifetime: 20 000 hours (to >70% luminous output)**Figure obtained under manufacturer´s test conditions
Photometric DataEfficacy: 25.5 lumens per wattCut-off angle: 16°Total output: 7100 lm
ConstructionColor: BlackHousing: High-impact flame-retardant thermoplasticProtection rating: IP20
GobosGobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)Max. image diameter: 22.0 mm (0.87 in.)Gobo thickness: 0.3 - 3.5 mm (0.01 - 0.14 in.)Gobo material: Steel, aluminum or borosilicate glass
InstallationMounting points: Two quarter-turn brackets for rigging clampsLocation: Dry location only, must be fastened to surface or structureOrientation: Any
ConnectionsAC power in/thru: Neutrik PowerConDMX data in/out: 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 300 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.
ThermalCooling: Forced air, temperature controlledMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1010 BTU/hr.
ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class AAustralia/NZ: RCM

Included ItemsPower cable, 1.5 m (4.9 ft.), without mains plugTwo Omega clamp attachment brackets with 1/4-turn fasteners
AccessoriesCables, 16 A, for connection to power in chainsPower input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.8 ft.): P/N 11541508Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 1.4 m (4.6 ft.): P/N 11541509Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 2.25 m (7.4 ft.): P/N 11541510Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3.25 m (10.7 ft.): P/N 11541511Power connectorsNeutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805DMX linkDMX termination plug, 3-pin male XLR: P/N 91613017Rigging hardwareG-clamp: P/N 91602003Half-coupler clamp: P/N 91602005
Related ItemsRUSH™ Software Uploader 1: P/N 91611399
Ordering InformationRUSH MH 1 Profile Plus™ in cardboard box: P/N 90280050

Specifications

  • Physical Height: 588 mm (23.2 in.) Length: 418 mm (16.5 in.) Weight: 18 kg (39.7 lbs.) Width: 328 mm (13.0 in.) Dynamic Effects Electronic dimming: 0 - 100%, four dimming curve options Color wheel 1: 7 colors plus open, rotation with variable direction and speed Color wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shake Static gobo wheel: 8 gobos plus open, wheel rotation and shake Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Prism: Indexing and rotation with variable direction and speed Iris: Motorized Focus: Motorized Pan: 540° Tilt: 270° Pan and tilt speed: Adjustable via onboard control panel and DMX Control and Programming Control options: DMX, standalone Setting and addressing: Control panel with backlit graphic display DMX channels: 17 Standalone trigger options: Music trig, auto trig Standalone sequences: 4 pre-programmed shows Standalone memory: 20 scenes Music trig sensitivity: Adjustable DMX compliance: USITT DMX512/1990 Optics Light source: 180 W LED engine Minimum LED lifetime: 20,000 hours (to >70% luminous output)* *Figure obtained under manufacturer´s test conditions. Photometric Data Efficacy: 25.5 lumens per watt Cut-off angle: 16° Total output: 7100 lumen Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20 Gobos Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.) Maximum image diameter: 22.0 mm (0.87 in.) Gobo thickness, minimum: 0.3 mm (0.01 in.) Gobo thickness, maximum: 3.5 mm (0.14 in.) Gobo material: Steel, aluminum or borosilicate glass
  • Installation Mounting points: Two quarter-turn brackets for rigging clamps Location: Dry location only, must be fastened to surface or structure Orientation: Any Electrical AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: 300 W Power consumption figures are typical, not maximum. Allow for +/-10% variation. Thermal Cooling: Forced air, temperature controlled Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 1010 BTU/hr. (at full intensity, full white) Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR Part 15 Class A Australia/NZ: RCM Included Items

    Power cable, 1.5 m (4.9 ft.), without mains plug
    Two Omega clamp attachment brackets with 1/4-turn fasteners

    Accessories Cables, 16 A, for connection to power in chains:

    Power input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.8 ft.): P/N 11541508
    Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 1.4 m (4.6 ft.): P/N 11541509
    Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 2.25 m (7.4 ft.): P/N 11541510
    Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3.25 m (10.7 ft.): P/N 11541511

    Power connectors:

    Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
    Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805

    DMX link: DMX termination plug, 3-pin male XLR: P/N 91613017 Rigging hardware:

    G-clamp: P/N 91602003
    Half-coupler clamp: P/N 91602005

    Related Items RUSH® Software Uploader 1: P/N 91611399 Ordering Information RUSH MH 1 Profile Plus™ in cardboard box: P/N 90280050
