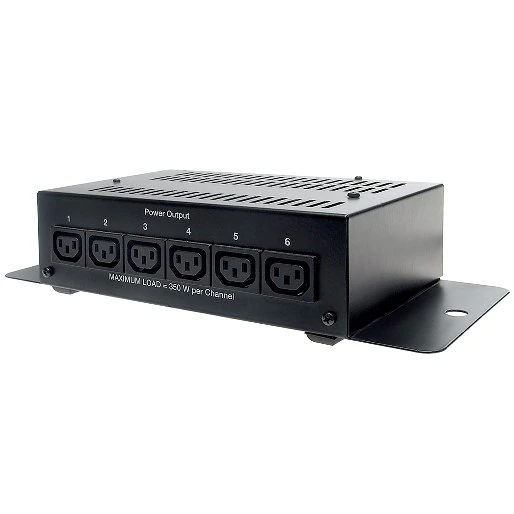

This DMX-controlled switching device allows you to turn on and off up to six 350 W devices.
Større billeder
Videoer
Funktioner
- DMX controllable 6 output relay interface
- DMX control of Par Cans, pin spots, DJ products
- Each output can be loaded maximum 350 W
- I.E.C male connectors included (EU-version)
- Robust construction for trouble-free use
Flere detaljer
Physical
Length: 250 mm
Width: 150 mm
Height: 71 mm
Control and Programming
Protocol: DMX512
DMX channels: 6
Data input/output: 3-pin XLR male/3-pin XLR female
Electrical
AC power: 100-130/210-245 V, 50/60 Hz
AC input: Fixed cable
Maximum total power consumption: 2200 W
Maximum power per channel: 350 W
Power output: 6 x grounded IEC female
Power output: 6 x grounded Edison female
Approvals
EU safety: EN 60950
EU EMC: EN 55103-1, EN 55103-2
Ordering Information
DMX Switchpack: 90758200
Downloads
Manuals
| Størrelse | |
|
|
124 kB |
|
|
254 kB |
version D,
opdateret: okt 2020
Illustrations
| Størrelse | |
|
|
150 kB |
|
|
50,2 kB |
Compliances
| Størrelse | |
DMX Switchpack, Ether2DMX Router, DABS1, 516 II Converter, RS 485 Optosplitter- EU Declaration of Conformity
version B,
opdateret: maj 2018
|
79,6 kB |
Hints and Tips
| Størrelse | |
Do Not Connect Discharge Lamps to the DMX Switch Pack
version A,
opdateret: maj 2018
|
