Atomic Colors

External color scroller for all Atomic strobes

Atomic Colors
Larger Images

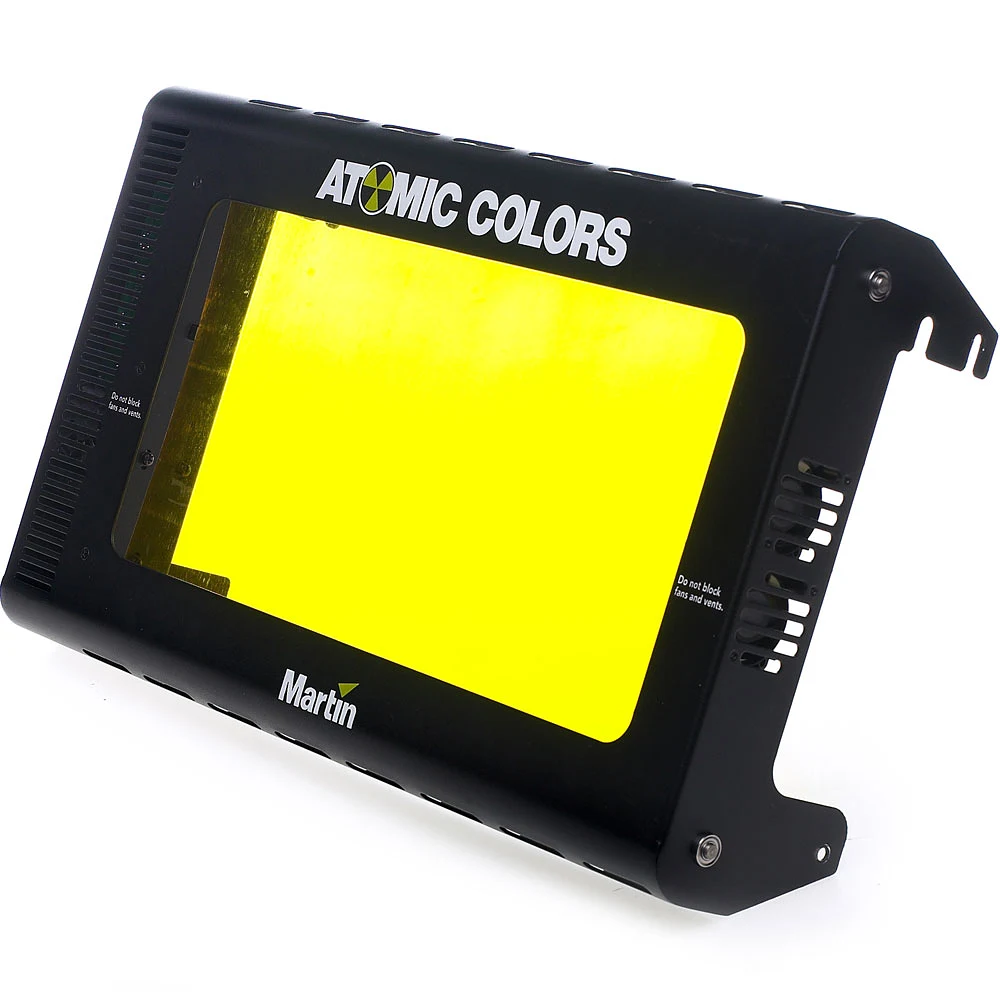

The Atomic Colors is a specially designed color scroller accessory which fits onto the front of the original Atomic 3000 DMX and also the new Atomic 3000 LED - allowing up to ten brightly colored strobe and blinder effects. In combination with the Aura backlight and main output of the Atomic 3000 LED it also delivers stunning three-dimensional eye candy looks.

Specifications

  • Physical Length: 470 mm (18.5 in.) Width: 273 mm (10.7 in.) Height: 102 mm (4.0 in.) Weight: 2.5 kg (5.5 lbs.) Color gel thickness: 0.075 mm (0.003 in.) - 0.125 mm (0.005 in.)
    Dynamic Effects Color gel scrolling: 10 standard colors supplied, custom color gel strings can be fabricated by customer
    Control and Programming Control options: DMX Cooling fan speed control: Onboard control panel, DMX DMX channels: 1 or 2 Gel scrolling speed, 'gel saver' mode, light-activated fan operation: Onboard control panel Setting and addressing: Three-button LED control panel DMX compliance: USITT DMX512/1990
    Construction Housing: Steel Color: Black Finish: Electrostatic powder-coated Protection rating: IP20
    Installation Mounting points: Fastens to Atomic fixture Location: Indoor use only, mounted on Atomic fixture Orientation: Any
  • Connections Combined power and DMX data from Atomic fixture: 4-pin XLR
    Electrical DC Power: 24 V (+/- 10%) DC current: 0.55 A (max.) Power source when used with xenon tube-based Atomic 3000 DMX: MPU-02 or MPU-08 external PSU
    Thermal Cooling: Forced air (4-speed fans) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 10° C (50° F)
    Included Items 10-color gel string (installed): P/N 91611090 5 m power/data cable, 4-pin XLR
    User manual
    Accessories MPU-02 Power Supply Unit*: P/N 91611084 MPU-08 Power Supply Unit*: P/N 91611085 *For use with original Atomic 3000 DMX only. Do not use a PSU when installing on Atomic 3000 LED
    Ordering Information Atomic Colors for Atomic 3000 DMX and Atomic 3000 LED: P/N 91611086

Downloads

  Version Language Size Uploaded
Specifications
file type icon Atomic Colors Spec Sheet-English
en updated: Oct 22, 2020
  en  383 KB Oct 22, 2020
Manuals
file type icon Atomic 3000 LED - Bedienungsanleitung
de version A, updated: May 18, 2018
de  5.03 MB May 18, 2018
file type icon Atomic Colors - Manuel d'utilisation
fr version A, updated: May 18, 2018
fr  796 KB May 18, 2018
file type icon Atomic Colors - User Manual
en version A, updated: May 18, 2018
en  1.02 MB May 18, 2018
file type icon Atomic Colors - Bedienungsanleitung
de version A, updated: May 18, 2018
de  837 KB May 18, 2018
file type icon Atomic 3000 DMX - User Manual
en version E, updated: Jul 23, 2020
en  770 KB Jul 23, 2020
file type icon Atomic 3000 LED - Manuel d'utilisation
fr version A, updated: May 18, 2018
fr  4.5 MB May 18, 2018
file type icon Atomic 3000 LED - User Manual
en version B, updated: May 18, 2018
en  7.97 MB May 18, 2018
Symbols
file type icon AutoCAD 3D Symbols
en version 1.5, updated: May 06, 2022
1.5  en  11 MB May 06, 2022
file type icon AutoCAD 2D Symbols
en version 1.5, updated: May 06, 2022
1.5  en  2.57 MB May 06, 2022
file type icon Vectorworks Symbols
en version 3.2, updated: May 08, 2022
3.2  en  359 MB May 08, 2022
Compliances
file type icon Atomic 3000 LED - EU Declaration of Conformity
en version B, updated: Apr 07, 2021
en  214 KB Apr 07, 2021
file type icon Atomic 3000 LED - ETL Listing Verification
en version A, updated: May 18, 2018
en  440 KB May 18, 2018
Service Notes
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Oct 22, 2020
  743 KB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
