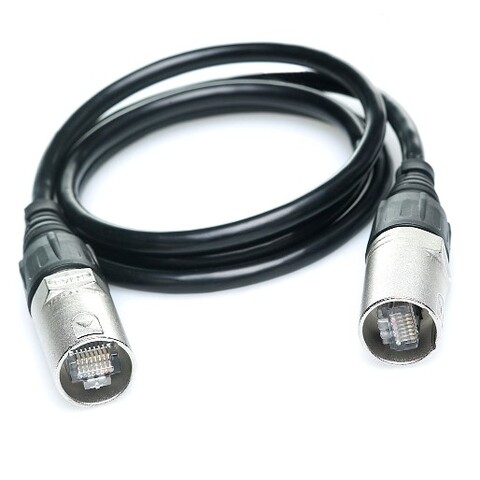

Cable accessories (discontinued)

Cable accessories
Larger Images

Converters
# 11820006 3-pin male - 3-pin female XLR, reversed
# 11820005 5-pin male - 3-pin female XLR, straight
# 11820004 3-pin male - 5-pin female XLR, straight
# 11820003 5-pin male - 3-pin female XLR, reversed
# 11820002 3-pin male - 5-pin female XLR, reversed


Data Link Termination
DMX termination 'soaks up' reflections on the data link and is important for trouble-free communication. It is achieved by inserting a 120 ohm resistor across data + (hot) and data - (cold) at the end of each branch of the data link. The easiest way to terminate a link is to insert a DMX termination plug into the data output of the last branch of the link. A DMX termination plug is a connector with a 120 ohm resistor soldered across data hot and cold.

# 91613017 DMX Termination plug, 3-pin male XLR, 120 Ohm
