Ether2DMX Router (discontinued)

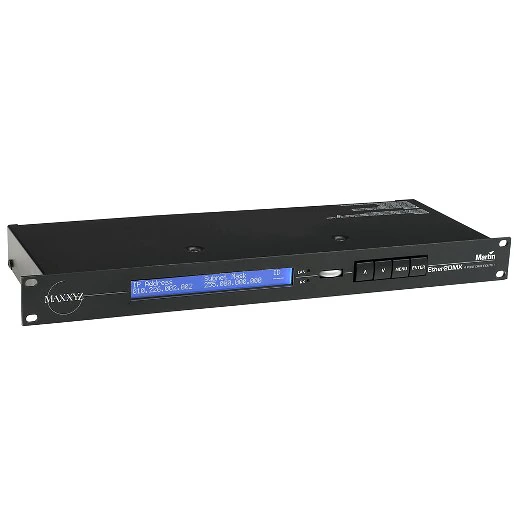

Ether2DMX Router
Larger Images

The Ether2DMX is a DMX Router which translates Artnet into DMX in/out universes.

Features

  • DMX interface for Artnet protocol over TCP/IP network
  • Can be used as an output device for the Maxxyz series, MSD and Maxedia series
  • Can be used to interface with any third party product that can interface with Artnet

Specifications

Physical Length: 482 mm Width: 160 mm Height: 43 mm Weight: 2.8 kg
Control/User Interface Blue backlit LCD display, 2 x 40 characters: Scroll wheel and key control panel: Integral low-resolution DMX viewer, 40 channels: LAN (working Ethernet link detected) and RX (valid data received) indicator LEDs:
Construction Housing: Steel and aluminum Finish: Electrostatic powder-coated
Installation 19-inch rackmount (1U):
Connections AC power input: 3-pin IEC EtherDMX (ArtNet): RJ-45 4 x optically isolated DMX in: 5-pin locking XLR 4 x optically isolated DMX out: 5-pin locking XLR MIDI in: Standard MIDI (5-pin DIN) MIDI out or thru: Standard MIDI (5-pin DIN) RS-232: 5-pin DIN General purpose I/O: DB9
Electrical AC power: Switch-selectable 100-120/208-240 V nominal, 50/60 Hz Main fuse: 0.125 AT (slow blow)
Typical Power and Current 120 V, 60 Hz: 8 W, 0.1 A 230 V, 50 Hz: 8 W, 0.1 A
Approvals EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2
CE
Included Items 2 m Ethernet crossover cable: 11840094 User manual: 35000134
Spare Parts 0.125 AT main fuse: 05020002
Ordering Information Ether2DMX Router, 115/230 V: 90758100
