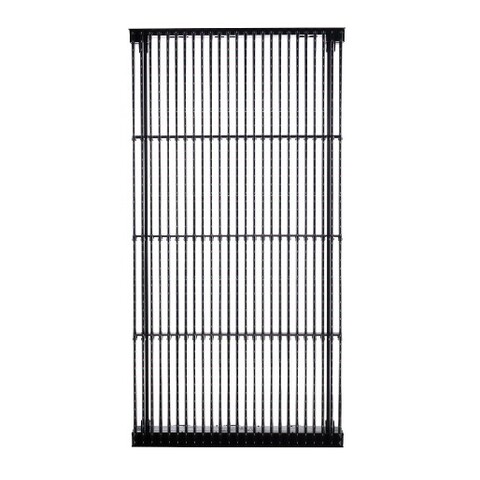

LC Plus Series (discontinued)

LC Plus Series
Larger Images

LC Plus™ is a modular system of LED video panels designed for the demanding rental and staging market as well as fixed installations. A true IP65 protection rating, wide operating temperature range and high level of brightness enable the LC Plus to be used in most outdoor applications. A low weight and high degree of transparency enable use in applications that simply are not possible with conventional LED screens.

Features

  • Scaling and de-interlacing
  • Bright, 3000 Nit (calibrated)
  • 60% transparency
  • Pixel level color calibration for superb color and brightness uniformity
  • Silent (no fans)
  • DMX controlled image manipulation in real-time
  • Supports multiple video protocols
  • Fast and easy setup
  • Ethernet based signal distribution, up to 50 panels in daisy chain
  • All-in-one solution
  • Designed for outdoor and indoor use, IP65 protection rating
  • 40 mm pixel pitch (seamless image at about 30m)

Specifications

Physical Height: LC Plus 2140 2000 mm Width: 1000 mm Depth: 152 mm Weight: LC Plus 2140 22.4 kg
Control/User Interface Device status and addressing: Onboard control panel with LED display, status LEDs Setup testing: Local test patterns
Photometric Data Light source: 5 mm oval LED Brightness (calibrated): 3000 Nit (candela per square meter) Pitch (pixel center-to-center): 40 mm Red dominant wavelength: 621 nm Green dominant wavelength: 527 nm Blue dominant wavelength: 470 nm Color resolution: 16 bits per color Viewing angle: >100° horizontal, >40° vertical at 50% intensity
Video Processing Video signal processor: External P3 System Controller (one per system) Processor capacity: 500 000 pixels (400 LCP 2140 panels) with P3-100 System Controller Output resolution: Any within 500k pixel limit Total system latency (worst case): Less than 3 frames DVI video input: Up to 1280 x 1024, 50/60/75 Hz Analog video input: Composite, component and S-video, PAL, NTSC and SECAM Frame synchronization to analog signal: Yes, integrated in P3 System Controller Image rotation: Yes, integrated in P3 System Controller Scaling: Yes, integrated in P3 System Controller De-interlacing: Yes, integrated in P3 System Controller Gamma curve selection and adjustment: Yes, integrated in P3 System Controller Real-time panel content remapping: Yes, integrated in P3 System Controller
P3 Signal Protocol Signal type: Gigabit Ethernet Protocol: Proprietary Martin P3 Hot pluggable: Yes, electrically isolated at all connections Cable type: CAT 5e, UTP Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch Max. number of panels per line: 50, extendable with Ethernet switch Latency between first and last panel: None
Construction Panel frames: Aluminum LED tubes: UV-resistant acrylic Transparency through panel (unmasked area): >60% Color: Matt black Protection rating: IP65, NEMA 1
Installation Orientation: Individually mounted panel any angle; stack or suspended chain horizontal or vertical only Max. suspended in one chain: Max. six 2140 panels hung vertically per single chain Max. stacked: Max. seven 2140 panels standing vertically per single stack Panel interlocking: Prolyte CCS6 conical coupler system
Connections Power in/out: Ruggedized IP67-rated power connectors P3 data in/out: Ruggedized IP67-rated RJ45 connectors
Electrical AC power: 200-240 V nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage Standby power: <35 W Main fuse: Single-phase power input 10 AT; 2-phase power input 2 x 10 AT
Typical Power and Current LCP 2140: 200 V, 60 Hz: 319 W, 1.6 A, PF 0.978 208 V, 60 Hz: 319 W, 1.6 A, PF 0.978 230 V, 50 Hz: 320 W, 1.5 A, PF 0.967 240 V, 50 Hz: 323 W, 1.4 A, PF 0.965 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Convection Maximum ambient temperature (Ta max.), 50% duty cycle, full white 1 sec. on/1 sec. off: 40° C Minimum ambient temperature (Ta min.): -20° C Total heat dissipation (calculated, +/- 10%): 1160 BTU/hr.
Approvals EU safety: EN 60825-1, EN 60950, EN 60529 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CAN/CSA 60950-1
CE ETL C US Intertek
Included Items Supplied in accessories box with Cardboard Box models: 4 x Prolyte CCS6 conical couplers: 21021150 8 x threaded spigots for LC Plus conical couplers: 08330127 8 mm hex key for threaded spigots: 50520619 5 m power input cable with IP67-rated input connector (single-phase power input): 11521030 5 m power input cable with IP67-rated input connector (2-phase power input): 11521034 1.5 m power throughput cable with IP67-rated connectors (single-phase power): 11521031 1.5 m power throughput cable with IP67-rated connectors (2-phase power): 11521033 1.5 m CAT 5e STP cable, RJ45 to RJ45, IP67 connectors: 11840147 2.5 m CAT 5e STP cable, RJ45 to RJ45, IP67 connectors: 11840148 Installation and safety manual: 35000218 Supplied in accessories box with 4-unit flightcase: 16 x Prolyte CCS6 conical couplers: 21021150 32 x threaded spigots for LC Plus conical couplers: 08330127 8 mm hex key for threaded spigots: 50520619 5 m power input cable with IP67-rated input connector (single-phase power input): 11521030 5 m power input cable with IP67-rated input connector (2-phase power input): 11521034 4 x 1.5 m power throughput cable with IP67-rated connectors (single-phase power): 11521031 4 x 1.5 m power throughput cable with IP67-rated connectors (2-phase power): 11521033 1.5 m CAT 5e STP cable, RJ45 to RJ45, IP67 connectors: 11840147 4 x 2.5 m CAT 5e STP cable, RJ45 to RJ45, IP67 connectors: 11840148 Installation and safety manual: 35000218
Accessories Conical coupler (Prolyte CCS6 system): 21021150 Threaded spigot for LC Plus conical coupler: 08330127 Threaded spigots for LC Plus and standard LC panels are not interchangeable: Female conical coupler socket with hole for spigot: 21021151 Half conical coupler with hole for spigot, length 44 mm: 21021152 Half conical coupler with hole for spigot, length 63 mm: 21021153 Half conical coupler without hole for spigot, length 44 mm: 26820300 30 m CAT 5e STP video data input cable, RJ45 to IP67 RJ45: 11840145 Four-unit flightcase for 4 x LC Plus 2140 video panels: 91510120 All Martin video system user documentation is available for download from www.martin.com:
Related Items P3 Upgrade Kit for standard LC 1140 panel: 91614031 P3 Upgrade Kit for standard LC 2140 panel: 91614030
Ordering Information LC Plus™ 2140 panel, in flightcase: 90354101 LC Plus™ 2140 panel, in cardboard box: 90354102 Martin P3-100™ System Controller: 90721010 Martin P3-200™ System Controller: 90721020 Martin P3-PC™ License on One-Key™ USB stick: 90721030

Downloads

  Version Language Size Uploaded
Manuals
file type icon LC Plus Series safety and installation guide
en version C, updated: Oct 2020
en  1.66 MB Oct 2020
file type icon MAC Viper Profile- Bedienungsanleitung
de version C, updated: May 2018
de  769 KB May 2018
file type icon Manuel d´installation et de sécurité LC Plus
fr version C, updated: Oct 2020
fr  784 KB Oct 2020
Illustrations
file type icon LC Plus 2140_3D symbol
en version A, updated: Oct 2020
en  5.65 MB Oct 2020
file type icon DIMS_LC_Plus
en version A, updated: Oct 2020
en  3.01 MB Oct 2020
Symbols
file type icon AutoCAD 3D Symbols
en version 2.2, updated: Mar 2024
2.2  en  14.3 MB Mar 2024
file type icon AutoCAD 2D Symbols
en version 2.2, updated: Mar 2024
2.2  en  3.74 MB Mar 2024
file type icon Vectorworks Symbols
en version 3.9, updated: Mar 2024
3.9  en  373 MB Mar 2024
Compliances
file type icon EU Declaration of Conformity, LC Plus 2140
en version A, updated: Oct 2020
en  286 KB Oct 2020
file type icon ETL Authorization to Mark, LC Plus 2140
en version B, updated: Oct 2020
en  148 KB Oct 2020
Service Procedures
file type icon Martin LED Video Fixtures Reset
en version A, updated: May 2018
en  274 KB May 2018
file type icon Updating LC Plus Panel Firmware
en version A, updated: Oct 2020
en  166 KB Oct 2020
Service Notes
file type icon Exterior products - Performing a vacuum test - Tech note
en version H, updated: Oct 2020
en  1020 KB Oct 2020
Hints And Tips
file type icon LC+ Series Screen Calculator
en version A, updated: Oct 2020
en  71.5 KB Oct 2020
Firmware
platform icon LC Plus Series Firmware
version 2.0.4, updated: May 2018
2.0.4     781 KB May 2018
