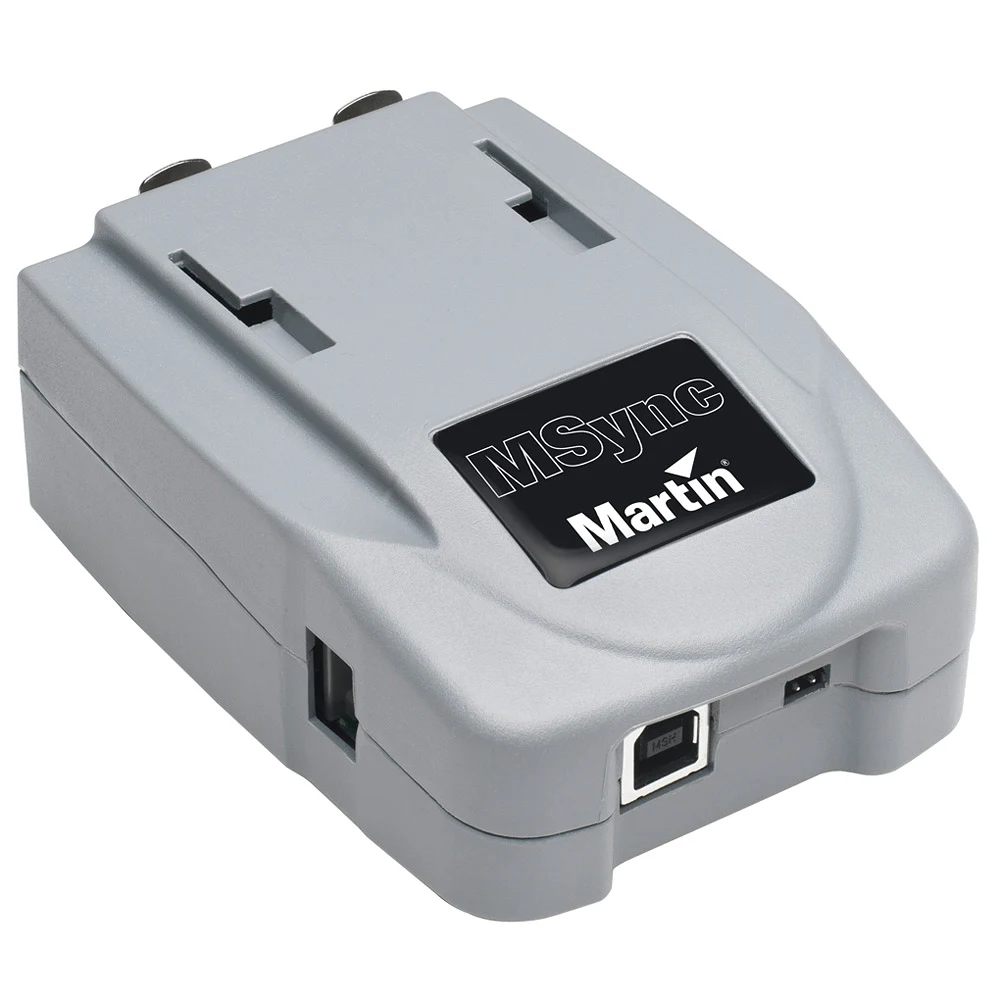

The M-Sync is a simple USB device that allows SMPTE timecode to be input directly into any Martin™ M-Series console - M1, M2GO, M2PC, M-PC.

M-Sync has two 3-pin XLR connectors for timecode In/Out, supporting LTC timecode @ 24, 25, 29.97 and 30 frames per second. It can be connected to any USB port on a PC or M-Series console.

M-Sync allows the M-Series software to read Linear Timecode (LTC) signals for perfect cue synchronization with external devices like sound or video playback systems.

  • Two 3-pin XLR connectors for timecode In/Out
  • LTC timecode set at 24, 25, nd 30 frames per second
  • Works with M-Series software on consoles or with M-PC

Features

  • Plug-and-play solution - comes complete with USB cable
  • Two 3-pin XLR connectors for timecode In/Out
  • Convenient, space-saving, stackable design
  • Easily mounts to surfaces and walls
  • LTC timecode @ 24, 25, 29.97 and 30 frames per second
  • Works with Martin™ M-Series software on consoles or with Martin™ M-PC
  • Internal version for M2GO and M2PC also available

M-Sync requires NO driver installation.

All required drivers are installed with the M-PC software and included in the Operating Systems for the M1 and M2GO.

Tech Specs

PhysicalLength: 103 mm (4.1 in.)Width: 73 mm (2.9 in.)Height: 42 mm (1.7 in.)Weight: 116 g (0.3 lbs.)
Control/User InterfaceConfiguration and management: Within Martin M-Series™ application
TimecodeCompliance: SMPTE (LTC)Frame rates: 24, 25, 29.97 and 30 frame/sec.
ConnectionsTimecode In/Out: 2 x 3-pin locking XLR, 1 x male, 1 x fem.PC/controller: USB
ElectricalUSB-powered
Included Items3 m USB cable
Ordering InformationMartin M-Sync™ SMPTE USB Interface Box: P/N 90703020Martin™ Internal SMPTE Module for M2GO™/M2PC™:P/N 90703040
