MAC 301 Wash (discontinued)

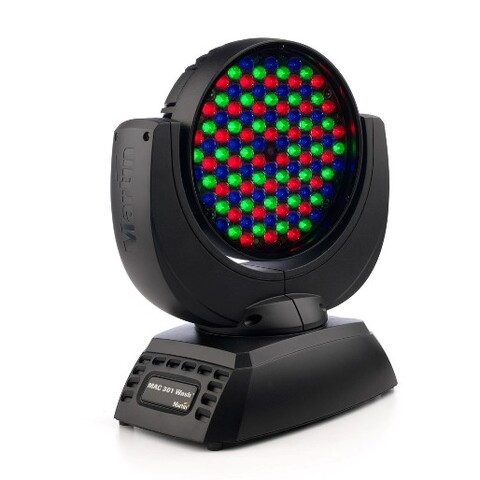

Mac 301 wash large
Larger Images

The MAC 301 Wash™ is an LED moving head washlight with a powerfully fast zoom and impressive zoom range. It is capable of producing a wide range of exceptional colors from rich saturated shades to pastels through the entire zoom range.

Features

  • Brightest LED moving head in its class
  • Punchy beam with great beam definition
  • Electronic strobe with pulse and random effects
  • Smooth electronic dimming: 0 - 100%
  • Fast and efficien zoom: 13 - 35°
  • Quiet
  • DMX-512 control
  • Compact, low weight design
  • Excellent color mixing for vibrant saturates and subtle pastels
  • All the benefis of LED

Tech Specs

Physical Length: 200 mm Width: 320 mm Height: 388 mm Weight: 8.9 kg excl. brackets
Dynamic Effects Shutter effect: Electronic, with pulse and random effects Electronic dimming: 0 - 100%, two dimming curve options for overall/individual RGB intensity Color mixing: RGB Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Electronic 'color wheel' effect: 7 colors plus white, color wheel rotation effect, snap, blackout or dimmer fade at color changes Color temperature control: Variable 8000 - 2800 K Zoom: 13 - 36° Pan: 430° Tilt: 300° Adjustable pan/tilt and effects speed:
Control and Programming Control options: DMX, stand-alone, master/slave Control resolution: 8- and 16-bit DMX channels: 12/15/16/19 Setting and addressing: Control panel with backlit graphic display Protocol: USITT DMX512/1990 Stand-alone memory: 20 scenes Stand-alone and master/slave programming: Control panel with backlit graphic display Transceiver: RS-485 Fixture software update: MAC 301 Software Uploader device
Optics Light source: Luxeon Rebel high power emitters Red: 621-637 nm Green: 525-542 nm Blue: 445-461 nm LED refresh rate: 100 Hz or 120 Hz depending on camera mode
Construction Color: Black Housing: High-impact flame-retardant thermoplastic Protection rating: IP20
Installation Mounting points: 2 pairs of 1/4-turn locks Orientation: Any Minimum distance to combustible materials: 100 mm from head, no minimum distance from base
Connections AC power input: 1.6 m cable tail DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Maximum total power consumption: 350 W Power supply unit: Auto-ranging electronic switch mode Main fuse: 6.3 AT (slow blow) Standby power: <60 W
Typical Power and Current 100 V, 60 Hz: 344 W, 3.5 A, PF 0.998 110 V, 60 Hz: 341 W, 3.1 A, PF 0.997 120 V, 60 Hz: 338 W, 2.9 A, PF 0.996 208 V, 60 Hz: 331 W, 1.7 A, PF 0.983 230 V, 50 Hz: 332 W, 1.5 A, PF 0.972 240 V, 50 Hz: 332 W, 1.5 A, PF 0.968 PF = power factor: Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C Total heat dissipation (calculated, +/- 10%): 1200 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4 US safety (US model): UL 1573, UL 8750 Canadian safety (US model): CSA C22.2 No. 166
CE ETL C US Intertek
Included Items Two Omega clamp attachment brackets with 1/4-turn fasteners for MAC 301: 91602015 User manual: 35000228
Accessories MAC 301 Software Uploader: 90758099 MAC 301 Diffusion Filter: 91611324 Quick trigger clamp: 91602007 Half-coupler clamp: 91602005 G-clamp: 91602003 Safety cable, safe working load 50 kg: 91604003 Four-unit flightcase for 4 x MAC 301: 91510021
Spare Parts 6.3 AT main fuse: 05020020
Ordering Information MAC 301 WashTM, US model, in cardboard box: 90218100 MAC 301 WashTM, US model, in 4-unit flightcase: 90218101 MAC 301 WashTM, EU model, in cardboard box: 90218000 MAC 301 WashTM, EU model, in 4-unit flightcase: 90218001

Downloads

Filename Version Language Size Uploaded
Software
Download 17 MAC 301 Upgrade Dongle Software 2.0  en  1.79 MB Jan 20, 2014
Manuals
Download 17 Manuel d┬┤utilisation fr  833 KB Mar 07, 2010
Download 17 User manual en  428 KB Dec 07, 2010
Download 17 Bedienungsanleitung de  777 KB Aug 25, 2010
Illustrations
Download 17 MAC 301 Wash_3D symbol_90┬░ head en  837 KB Jun 16, 2009
Compliances
Download 17 EU Declaration of Conformity en  273 KB Apr 27, 2009
Instructions
Download 17 MAC 301 Software Upload Procedure en  589 KB Oct 06, 2009
