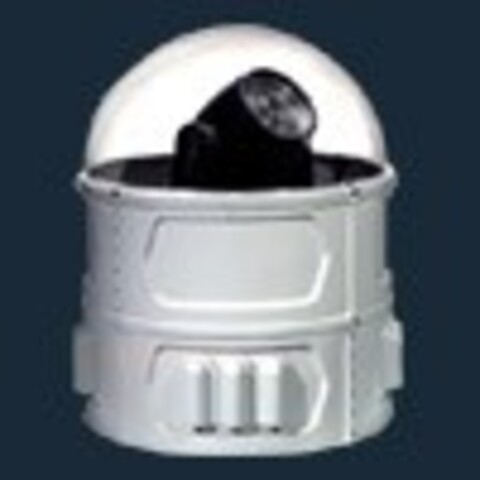

MAC Dome (discontinued)

Larger Images
The MAC Dome allows Martin luminaires to be used outdoors, yet remain in a protected environment. The MAC Dome comes in two versions. One for the PAL 1200, and a smaller version taking the MAC 500 and 600.

Features

  • Construction: Sheet steel and alumimum base, ABS plastic sides, acrylic top
  • Diameter: 825 mm
  • IP Rating: IP 44
  • MAC 500/600 Dome - height: 1020 mm, weight: 52.5 kg
  • PAL 1200 Dome - height:1740 mm, weight: 53,5 kg

Specifications

Downloads

  Version Language Size Uploaded
Manuals
User manual
en version D, updated: May 18, 2018
en  282 KB May 18, 2018
Illustrations
Dimensions
en version A, updated: May 18, 2018
en  54.8 KB May 18, 2018
Dimensions (DXF)
en version A, updated: May 18, 2018
en  27.3 KB May 18, 2018
Parts
Cover Plate for the Base
en version A, updated: May 22, 2018
A   en    May 22, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
