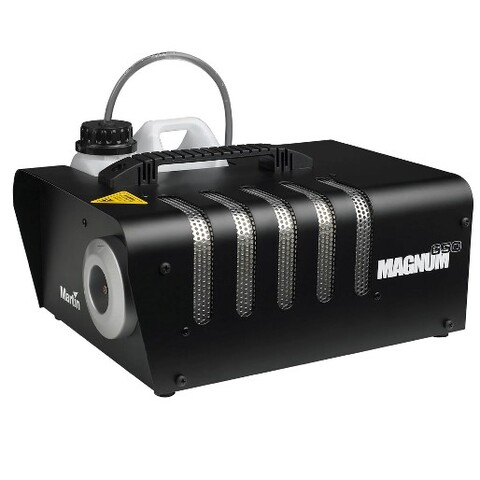

Martin Magnum 650

Larger Images

The Magnum 650 offers the perfect boost of dense white fog to enhance every light effect. The fast heat-up time and extended operational period place the Magnum 650 as the clear leader in its class.

Features

Hand-held remote control
160 m³/min fog output
Housing: Steel and aluminum
600 W heat exchanger
7 minute heat-up time
1 liter fluid capacity
Different fluid options for different applications

Specifications

Physical Length: 293 mm Width: 216 mm Height: 170 mm Dry weight: 4.2 kg

Performance Max. fog output (approx.): 160 m³ per minute Max. operating time at full output (approx.): 47 minutes Warm-up time (approx.): 7 minutes

Control and Programming Control options: Remote control (supplied) Remote control features: Manual switch

Construction Housing: Steel & aluminum Heat exchanger: 600 W, direct thermal protection

Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 1 l Fluid consumption at peak output: 23 ml per minute

Installation Orientation: Floor

Connections Remote control: Hard-wired Power connection: 3-pin IEC male socket

Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 5 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)

Typical Power and Current US model: 110 V, 60 Hz: 613 W, 5.6 A 115 V, 60 Hz: 670 W, 5.8 A 120 V, 60 Hz: 730 W, 6.1 A EU model: 220 V, 50 Hz: 567 W, 2.58 A 230 V, 50 Hz: 620 W, 2.7 A 240 V, 50 Hz: 675 W, 2.82 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 50° C Max. nozzle temperature: 200° C

Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995) US safety: UL Std. 60335-1

ETL US ONLY

Included Items User manual: 35010024 Power cable 1.5 m IEC w/o end plug: 11501012 Container 1 l: 34300001

Accessories Pro Smoke Super (ZR Mix) fluid: Regular DJ (DJ mix) fluid:

Ordering Information Martin Magnum 650, 110 V: 92228810 Martin Magnum 650, 240 V: 92228811

Downloads

	Version	Language	Size	Uploaded
Manuals
User Manual (650 & 850) version G, updated: Oct 2020	G		916 KB	Oct 2020
Manuel d´utilisation (650 & 850) version G, updated: Oct 2020	G		886 KB	Oct 2020
Compliances
CE Compliance Magnum 650 version A, updated: Oct 2020	A		73.5 KB	Oct 2020
ETL Magnum 650 ATM version A, updated: Oct 2020	A		178 KB	Oct 2020
Parts
Martin Heat Exchange Part Numbers version B, updated: Oct 2020	B		116 KB	Oct 2020
