Max Module Submaster (discontinued)

Larger Images

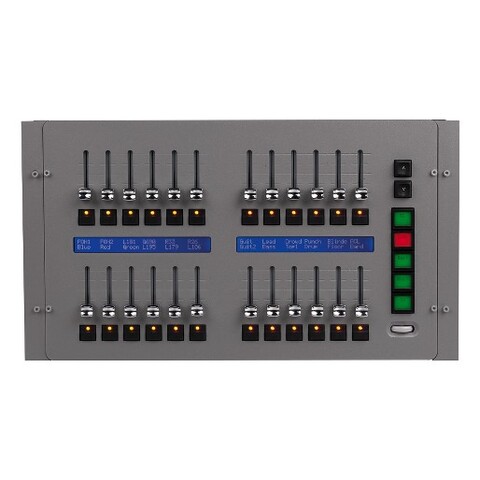

The Submaster module provides the user with an additional 24 handles of controls for cuelists, channels, submasters or inhibitives. Combined with a MaxModule Cerebrum, Maxxyz, M-Series consoles or M-PC V3, the Submaster module makes it easy and relatively inexpensive to build a 24, 48 or even 96 fader desk - the perfect startup theater console.

Features

  • 24 x non-motorized faders with single function button (every cuelist type supported)
  • 40-character display for labeling
  • 5 x LCD navigation buttons with scroll wheel
  • Built-in Maxxyz PC dongle and 2 built-in DMX ports

Specifications

Physical Length: 275 mm Width: 483 mm Height: 128 mm Weight: 4.6 kg
Control/User Interface 24 x non-motorized faders with single function button (every cuelist type supported) 40-character display for labeling 5 x LCD navigation buttons with scroll wheel
Connections Maxxyz/Maxedia multiple controller link USB: Neutrik locking RJ45 Ethercon sockets DMX out: 2 x 5-pin female locking XLR USB input: USB device socket USB devices: USB host socket Desk lamp: 2.5 mm DC bayonet AC power input: 3-pin IEC male socket AC power throughput: 3-pin IEC female socket
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 2 AT (slow blow) Desk lamp output: 12 V AC power output: Unswitched, unfused, max. 6 A
Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1
Included Items Maxxyz PC key (without 3D Visualizer) installed internally: 1.5 m power cable, 3-pin IEC: 11501012 Ethercon patch cable: 11840144 USB cable: 11840066 User manual: 35000223 DVD with Maxxyz PC and Maxxyz Manager software:
Ordering Information MaxModule Submaster: 90732170 M-Series™ Empty Frame in Flightcase: 90732120 M-Series™ Empty Frame in Cardboard Box: 90732130
