Martin RGB Laser 1 6

Larger Images

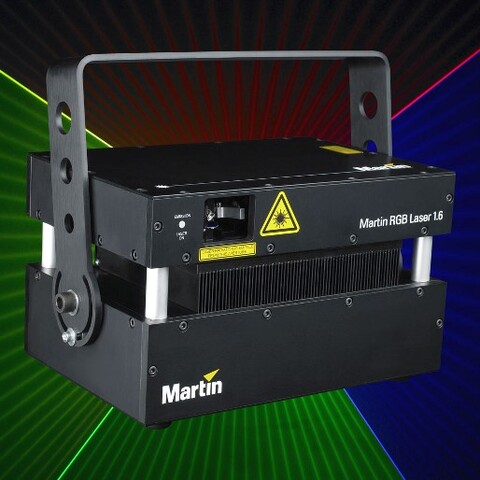

The Martin RGB Laser 1.6 is a compact and lightweight Class 4 laser with deep saturated colors and true whites, and an impressive spread angle of 80 x 80 degrees.

Features

Wavelengths calibrated close to Absolute White; intense blue of 446 nm.
Maintenance-free
Noise level less than 42 dBA at 1 m (3.3 ft)
Storage for 256 cues, can be edited/overwritten
DMX control
Can be operated with any ILDA-compatible controller
Real-time effect programming, editing and viewing
Martin Laser Software included
Weatherproof rating: IP52
Extremely robust, system does not misalign under regular touring conditions
2-year/3000 hrs. warranty
Long diode lifetime
80 x 80 degree projection angle

Specifications

Physical Length: 290 mm Width: 204 mm Height: 178 mm Length including mounting yoke: 326 mm Height including mounting yoke: 260 mm Weight: 11.2 kg

Control and Programming Control options: DMX, ILDA, PC software (supplied), standalone autostart mode Resolution x and y: 12-bit Resolution RGB intensity: 8-bit DMX channels: 4, 8, 12 or 16 Demo sequence: Storage for 256 cues, can be edited/overwritten Stand-alone memory: 128 MB, 432 linkable/loopable cues DMX address setting: Onboard control panel with backlit LCD display Stand-alone programming: PC software Projection settings and data readouts: Onboard control panel with backlit LCD display Protocol: USITT DMX512-A

Laser Class: 4 Type: Diode laser, cw emission P lambda 440 nm - 660 nm: Max. 2000 mW cw White light output: 1.3 W Maximum output: 1.6 W Beam divergence: 0.8 mrad Red wavelength: 650 nm +/- 5 nm Green wavelength: 532.5 nm +/- 0.5 nm Blue wavelength: 446 nm +/- 3 nm

Projector Horizontal projection angle: 80° Vertical projection angle: 80° SASRT (step response time): 0.3 ms

Construction Housing: Aluminum Finish: Black Protection rating: IP52

Installation Orientation: Any Minimum distance to persons and objects in beam zone: 2 m Minimum height above publicly accessible floor: 3 m Minimum distance to combustible materials: 1 m Minimum distance to illuminated surfaces: 2 m Minimum clearance around device: 30 cm Relative humidity limits: 0% - 90% non-condensing

Connections AC power input: 3-pin IEC male socket, cable supplied Analog (ILDA) in/out: 25-pin sub-D DMX data in/out: 5-pin locking XLR Programming and uploads: USB 2.0 (USB Type B chassis connector)

Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 2.5 AT (slow blow)

Typical Power and Current 100 V, 60 Hz: 180 W, 1.8 A 110 V, 60 Hz: 180 W, 1.7 A 115 V, 60 Hz: 180 W, 1.7 A 120 V, 60 Hz: 180 W, 1.7 A 220 V, 50 Hz: 180 W, 0.7 A 230 V, 50 Hz: 180 W, 0.7 A 240 V, 50 Hz: 180 W, 0.7 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C non-condensing Recommended storage temperature: 20° C to 25° C Cooling: Forced air (temperature-regulated, low noise)

Acoustic Sound pressure level: <42 dBA at 1 m, steady state, Ta 25° C

Approvals US safety: IEC 60825-1 / FDA Laser Notice 50 US Federal Standard: 21 CFR 1040.10 and 1040.11 (c) Canadian safety: CSA C22.2 No. 60950-1 EU safety: EN 60825-1, EN 60950 EU EMC: EN 55022, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3

Included Items CD with Martin RGB Laser Show software, cue library and firmware: Two security keys: 50521000 Interlock connector (AMP): 05347230 Adjustable mounting yoke: 56600069 5 m USB 2.0 to 6-pin XLR adapter cable: 3 m power cable, IEC, Schuko plug: 11501020 1.8 m power cable, IEC, US plug: 11501502 1.8 m power cable, IEC, without plug: 11501010 User manual: 35000189

Ordering Information Martin RGB Laser 1.6 in cardboard box: 90432000 Martin RGB Laser 1.6 in single flightcase: 90432001
