RS 485 Optosplitter
Larger Images

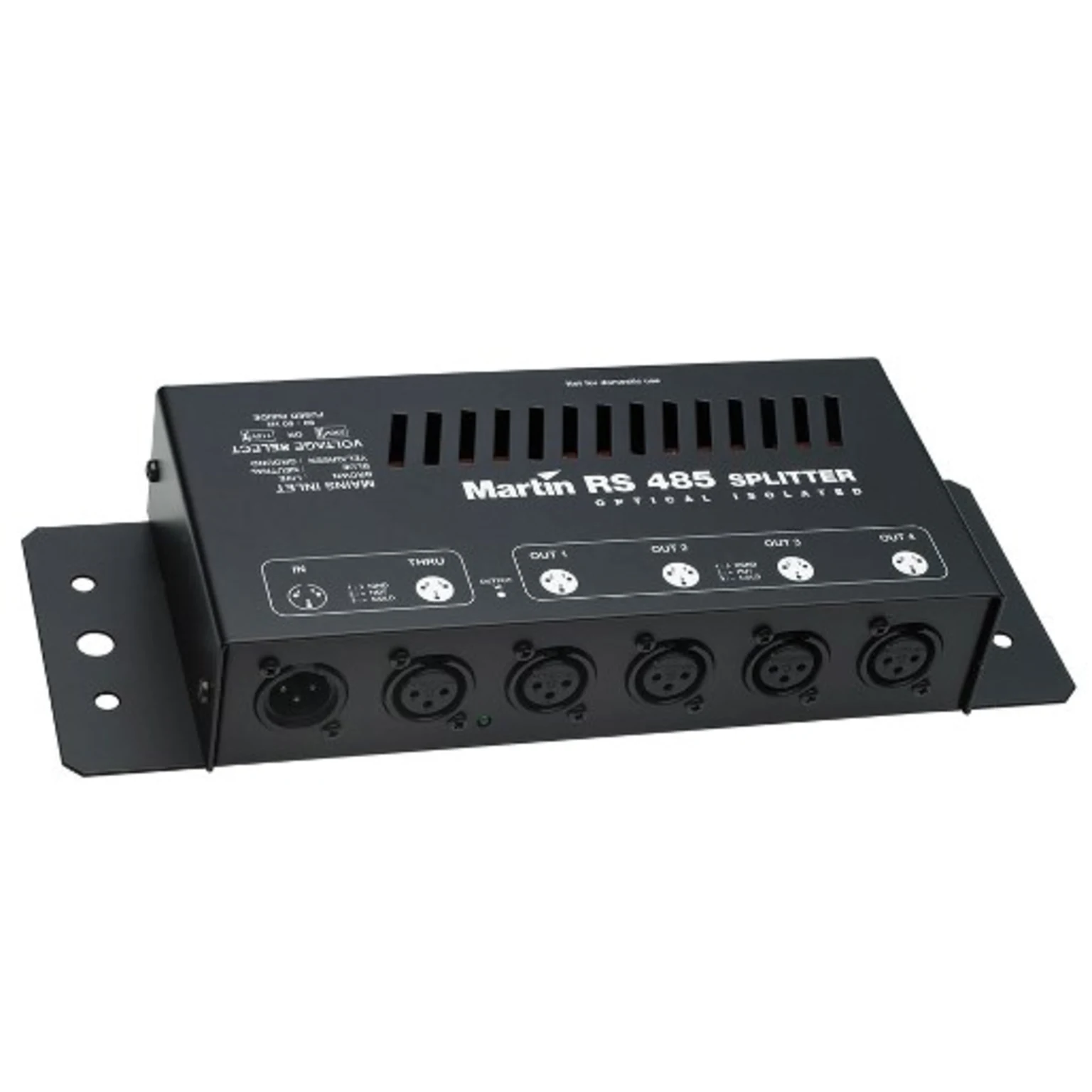

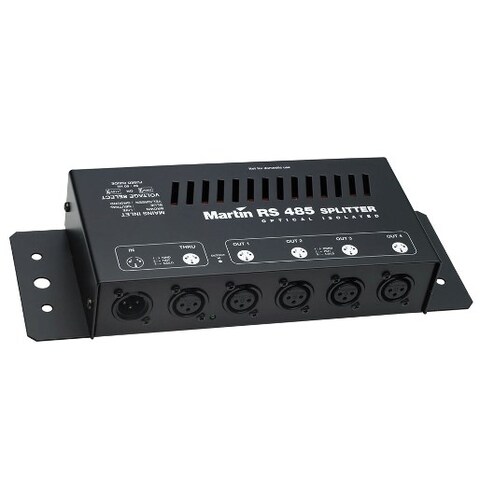

This optically isolated splitter amplifier allows you to add 4 branches to the data link for safe and trouble-free operation of larger DMX installations.


  • 4 Optically isolated and amplified DMX outputs
  • Amplification allows the link to be extended over the maximum length specified by the DMX-512 standard.
  • Several splitter amplifiers may be used on the same link if additional branches are required.
  • Each branch of the link may be treated as an independent link with up to 32 fixtures each
  • Robust construction for trouble-free use


Physical Length: 293 mm Width: 108 mm Height: 49 mm Weight: 1.4 kg
Construction Housing: Steel Finish: Electrostatic powder-coated Color(s): Black
Connections Input: 3-pin XLR male Throughput (output with no amplification): 3-pin XLR female Outputs (amplified and optically isolated): 4 x 3-pin XLR female
Electrical AC power: 115/230 V, 50/60 Hz, switch-selectable
Approvals EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2
Ordering Information RS-485 Optosplitter: 90758060
