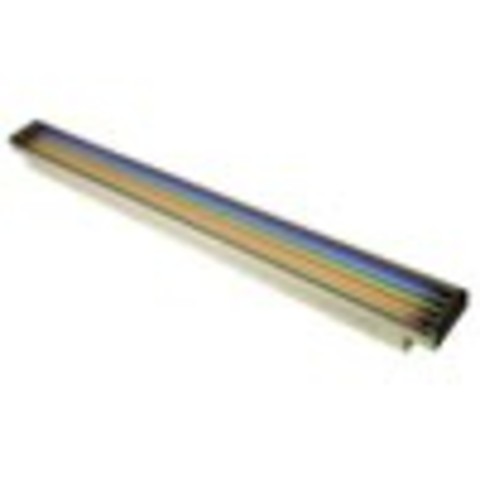

Cyclo 03 and 04 DMX are fluorescent colour changing luminaires with RGB mixing and colour correction control.
Larger Images
Specifications
Physical Length: 1190 mm Width: 81 mm Height: 91 mm Weight: 6.5 kg
Dynamic Effects Color mixing: RGB Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 3 Setting and addressing: DIP switch Protocol: DMX512 Receiver: RS-485
Construction Housing: Mild steel Color(s): Grey Reflector: High specular 99.9% aluminum Protection rating: IP20
Connections AC power input: Ensto quick connector DMX data in/out: RJ-45
Typical Power and Current 230 V, 50 Hz: 128 W, 0.6 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Included Items Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005 Ensto 3-pole 16 A/250 V male connector: 05347202 Ensto 3-pole 16 A/250 V female connector: 05327202
Accessories Diffuser front for Cyclo 03: 91611077 DMX termination plug, RJ-45: 91613028 Power interconnect cable, Ensto male/female, 15 cm: 11821019
Spare Parts Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005
Ordering Information Cyclo 03 DMX: 90550015
Downloads
| Size | ||||
Hints And Tips | ||||
Optimizing Cyclo Tube Lifetimes
version A,
updated: May 2018
|
||||
|
Running Cyclos at Very Low Ambient Temperatures
version A,
updated: May 2018
|
||||
