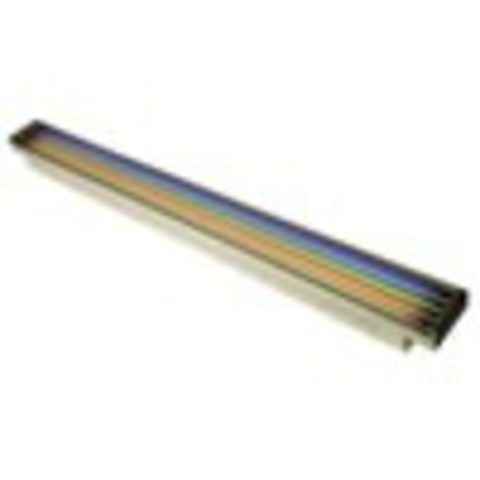

Martin Cyclo 04 DMX

Larger Images

Cyclo 03 and 04 DMX are fluorescent colour changing luminaires with RGB mixing and colour correction control.

Features

Fast and easy installation
Fluorescent colour changing luminaire
Integrated DMX control
Preset programmes – no controller required
RGB(W) colour control
Slim design based on linear T5 lamps
True 0-100% intensity control

Specifications

Physical Length: 1190 mm Width: 99 mm Height: 91 mm Weight: 6.7 kg

Dynamic Effects Color mixing: RGBW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Cool white (4000 K): 0 - 100%

Control and Programming Control options: DMX, stand-alone, synchronized (master/slave) DMX channels: 4 Setting and addressing: DIP switch Protocol: USITT DMX512/1990 Receiver: RS-485

Construction Housing: Mild steel Color(s): Grey Reflector: High specular 99.9% aluminum Protection rating: IP20

Connections AC power input: Ensto quick connector DMX data in/out: RJ-45

Typical Power and Current 230 V, 50 Hz: 128 W, 0.6 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Included Items Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005 Osram T5 FH 28 W/840 HE 4000 K cool white tube: 97020001 Ensto 3-pole 16 A/250 V male connector: 05347202 Ensto 3-pole 16 A/250 V female connector: 05327240

Accessories Diffuser front for Cyclo 04: 91611078 DMX termination plug, RJ-45: 91613028 Power interconnect cable, Ensto male/female, 15 cm: 11501019

Spare Parts Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005 Osram T5 FH 28 W/840 HE 4000 K cool white tube: 97020001

Ordering Information Cyclo 04 DMX: 90550005

Downloads

	Version	Language	Size	Uploaded
Hints And Tips
Optimizing Cyclo Tube Lifetimes version A, updated: May 2018	A			May 2018
Running Cyclos at Very Low Ambient Temperatures version A, updated: May 2018	A			May 2018
