Cyclo IP65 Directional (discontinued)

Larger Images

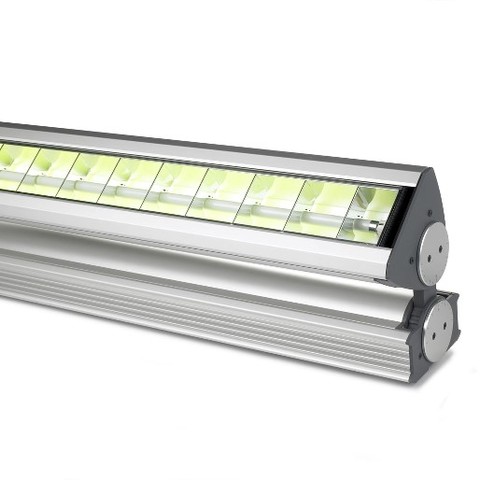

The Cyclo IP65 Directional is weatherproofed for dynamic outdoor illumination of facades, structures and landscapes. It features a slim linear design and excellent optical performance based on RGB and white T5 fluorescent tubes.

Features

  • High output 54 W T5 fluorescent tubes
  • Choice of 3 or 4 tube versions
  • Long lamp life (20 000 hrs)
  • RGB + W color mixing
  • Color temperature control
  • 0-100% intensity control
  • High optical performance: uniform distribution of light and color
  • DMX, stand-alone, synchronized (master/slave)
  • Weatherproof rating: IP65

Specifications

Physical Length: 1257 mm Width: 150 mm Height: 242 mm including mounting bracket Weight: 22 kg
Dynamic Effects Color mixing: RGB (03 models), RGBW (04 models) Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Cool white (4000 K): 0 - 100% (04 models)
Control and Programming Control options: DMX, stand-alone, synchronized (master/slave) DMX channels: 3 (03 models) or 4 (04 models) DMX address setting: DIP switch Stand-alone and master/slave programming: DIP switch Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: T5 fluorescent tubes Approved lamps: Osram FQ 54 W HO Average lifetime: 20 000 hours Socket: G5
Construction Housing: Aluminum Finish: Clear anodized Front cover: Toughened glass Reflector(s): High specular 99.9% aluminum Protection rating: IP65
Installation Orientation: Any Minimum free space: 25 mm
Connections Power cable entry: IP68 cable gland Power connection: Quick connector terminals Data cable entry: IP68 cable gland Data connection: Screw terminals
Electrical AC power: 100-120/200-240 V nominal, 50/60 Hz Main fuse: 2 AT (120 V, 03 model), 2.5 AT (120 V, 04 model), 1 AT (230 V, 03 model), 2 AT (230 V, 04 model)
Typical Power and Current Cyclo IP65 03 Directional, 120 V model: 100 V, 60 Hz: 163 W, 1.6 A 120 V, 60 Hz: 180 W, 1.5 A Cyclo IP65 03 Directional, 230 V model: 208 V, 60 Hz: 180 W, 0.87 A 230 V, 50 Hz: 181 W, 0.80 A 250 V, 50 Hz: 179 W, 0.73 A Cyclo IP65 04 Directional, 120 V model: 100 V, 60 Hz: 219 W, 2.2 A 120 V, 60 Hz: 236 W, 2.0 A Cyclo IP65 04 Directional, 230 V model: 208 V, 60 Hz: 235 W, 1.2 A 230 V, 50 Hz: 234 W, 1.1 A 250 V, 50 Hz: 231 W, 0.94 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature: -20° C, power must be maintained below 0° C Cooling: Convection Total heat dissipation (calculated, +/- 10%): 615 BTU/hr. (03 models), 805 BTU/hr. (04 models)
Approvals US safety: UL 1573 Canadian safety: CSA C22.2 No. 166 EU safety: EN 60598-1, EN 60598-2-1 EU EMC: EN 55015, EN 60555-3
CE ETL C US Intertek
Included Items Osram T5 FQ 54 W/60 HO red tube: 97020006 Osram T5 FQ 54 W/66 HO green tube: 97020007 Osram T5 FQ 54 W/67 HO blue tube: 97020008 Osram T5 FQ 54 W/840 HO 4000 K cool white tube (04 model): 97020010 Two M25 cable glands, IP68, metal, cable Ø 7 mm - 14 mm: Two M16 cable glands, IP68, metal, cable Ø 3.5mm - 10 mm: M25 blanking plug, metal: M16 blanking plug, metal: Surface-mounting bracket: User manual:
Accessories DMX termination resistor: 04150308 Osram T5 FQ 54 W/827 HO 2700 K warm white tube (04 model): 97020009 Osram T5 FQ 54 W/865 HO 6500 K daylight white tube (04 model): 97020011
Spare Parts Osram T5 FQ 54 W/60 HO red tube: 97020006 Osram T5 FQ 54 W/66 HO green tube: 97020007 Osram T5 FQ 54 W/67 HO blue tube: 97020008 Osram T5 FQ 54 W/840 HO 4000 K cool white tube (04 model): 97020010
Ordering Information Cyclo IP65 03 Directional, 120 V: 90566810 Cyclo IP65 03 Directional, 230 V: 90566010 Cyclo IP65 04 Directional, 120 V: 90567810 Cyclo IP65 04 Directional, 230 V: 90567010

Downloads

  Version Language Size Uploaded
Manuals
User manual
en version A, updated: May 18, 2018
en  906 KB May 18, 2018
Illustrations
Cyclo IP65 Directional Dimensions (PDF)
en version A, updated: May 11, 2018
en  66.2 KB May 11, 2018
Cyclo IP65 Directional Dimensions (DXF)
en version A, updated: May 11, 2018
en  146 KB May 11, 2018
Compliances
ETL Authorization To Mark, Cyclo Directional 03 and 04 DMX IP65
en version A, updated: May 11, 2018
en  39.3 KB May 11, 2018
Hints And Tips
Optimizing Cyclo Tube Lifetimes
en version A, updated: May 22, 2018
en    May 22, 2018
Running Cyclos at Very Low Ambient Temperatures
en version A, updated: May 22, 2018
en    May 22, 2018
