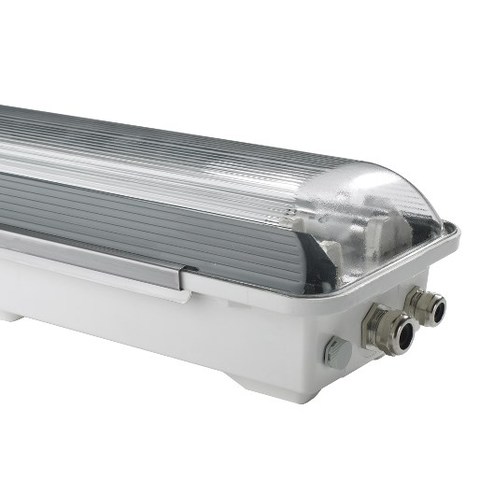

Cyclo IP65 US (discontinued)

Cyclo IP65 US
Larger Images

The Cyclo IP65 US offers a competitive solution for dynamic outdoor illumination of facades, structures and bridges, with a slim linear design based on RGB fluorescent T5 tubes.

Features

  • 54 W T5 fluorescent tubes
  • 3 fluorescent RGB tubes
  • Long lamp life (20 000 hrs)
  • RGB color mixing, variable color temperature
  • Clear front cover
  • 0-100% intensity control
  • DMX control
  • Stand-alone operation
  • Weatherproof rating: IP65

Specifications

Physical Length: 1270 mm Width: 170 mm Height: 125 mm Weight: 7 kg
Dynamic Effects Color mixing: RGB Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (master/client) DMX channels: 3 DMX address setting: DIP switch Stand-alone and master/client programming: DIP switch Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: T5 fluorescent tubes Approved lamps: Osram FQ 54 W HO Average lifetime: 20 000 hours Socket: G5
Construction Housing: Polyester-reinforced composite Color: Cream Front cover: Unbreakable polycarbonate Reflector: High specular 99.9% aluminum Protection rating: IP65
Installation Orientation: Any Minimum free space: 25 mm
Connections Power cable entry: IP68 cable gland Power connection: Quick connector terminals Data cable entry: IP68 cable gland Data connection: Screw terminals
Electrical AC power: 100-120 V nominal, 50/60 Hz Main fuse: 2 AT (slow blow)
Typical Power and Current 100 V, 60 Hz: 163 W, 1.6 A 120 V, 60 Hz: 180 W, 1.5 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature: -20° C Cooling: Convection Total heat dissipation (calculated, +/- 10%): 615 BTU/hr.
Approvals US safety: UL 1573 Canadian safety: CSA C22.2 No. 166 EU safety: EN 60598-1, EN 60598-2-1 EU EMC: EN 55015, EN 60555-3
CE ETL C US Intertek
Included Items Osram T5 FQ 54 W/60 HO red tube: 97020006 Osram T5 FQ 54 W/66 HO green tube: 97020007 Osram T5 FQ 54 W/67 HO blue tube: 97020008 Two M25 cable glands, IP68, metal, cable Ø 7 mm - 14 mm: Two M16 cable glands, IP68, metal, cable Ø 3.5mm - 10 mm: M25 blanking plug, metal: M16 blanking plug, metal: User manual:
Accessories DMX termination resistor: 04150308 Osram T5 FQ 54 W/827 HO 2700 K warm white tube (04 model): 97020009 Osram T5 FQ 54 W/865 HO 6500 K daylight white tube (04 model): 97020011 Mounting bracket: 91611233
Spare Parts Osram T5 FQ 54 W/60 HO red tube: 97020006 Osram T5 FQ 54 W/66 HO green tube: 97020007 Osram T5 FQ 54 W/67 HO blue tube: 97020008
Ordering Information Cyclo IP65 US: 90561730

Downloads

  Version Language Size Uploaded
Manuals
file type icon Cyclo IP65 US - User manual
en version A, updated: May 2018
en  676 KB May 2018
Illustrations
file type icon Cyclo IP65 US Dimensions (PDF)
en version A, updated: Oct 2020
en  106 KB Oct 2020
file type icon Cyclo IP65 US Dimensions (DXF)
en version A, updated: Oct 2020
en  215 KB Oct 2020
Hints And Tips
Optimizing Cyclo Tube Lifetimes
en version A, updated: May 2018
A   en    May 2018
Running Cyclos at Very Low Ambient Temperatures
en version A, updated: May 2018
A   en    May 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
