Easypix (discontinued)

Larger Images

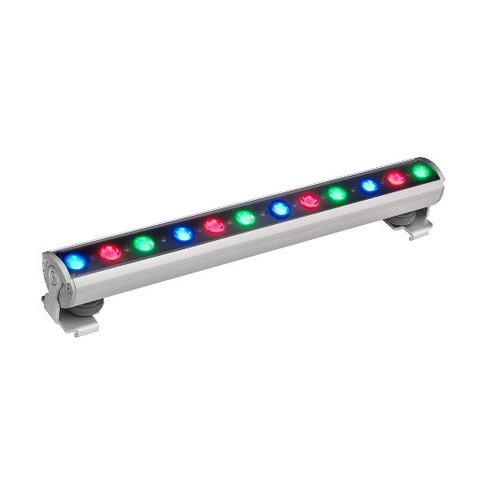

Easypix is a modular, plug-and-play LED striplight designed to enhance interior spaces in a wide variety of applications. Built for ultimate ease-of-use with full spectrum RGB color mixing, a choice of diffuser lenses, and an exceptionally easy means of installation, it is a simple yet highly capable dynamic lighting solution.


  • Easy on the eyes – bright with superb color mixing and an attractive design
  • Easy to install – simple to assemble and setup
  • Easy to use - DMX controllable or 64 ready-to-go stand-alone programs
  • Easy on the pocketbook – Martin quality with little to no service needed
  • Available in two lengths: 300 mm (1 ft) and 1200 mm (4 ft)


Physical Easypix 300: Length: 300 mm Width: 40 mm including mounting brackets Height: 53 mm including mounting brackets and DIN rail Weight: 560 g Easypix 1200: Length: 1200 mm Width: 40 mm including mounting brackets Height: 53 mm including mounting brackets and DIN rail Weight: 1.9 kg Easypix Power: Length: 325 mm including mounting plate Width: 113 mm Height: 94 mm Weight: 3 kg
Dynamic Effects Color mixing: RGB Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100%
Control and Programming Color control modes: RGB, HSI Control options: DMX, stand-alone, synchronized (master/slave) DMX channels: 3 per output channel Stand-alone memory: 64 pre-programmed static/dynamic scenes/sequences DMX address setting: DIP switch on Easypix Power Protocol: USITT DMX512-A Receiver: RS-485 Firmware update: Serial upload via DMX link
Optics Light source: Osram G6SP Total LED power: Easypix 300 approx. 8 W; Easypix 1200 approx. 32 W
Construction Easypix 300, Easypix 1200: Housing: Aluminum Finish: Clear anodized Front cover: Flame-retardant PMMA Protection rating: IP20 Easypix Power: Housing: Steel Finish: Electrostatic powder-coated Color: Grey Protection rating: For indoor use only
Installation Orientation: Any Aiming: +/- 95° Mounting: 35 mm DIN top-hat rail or mounting bracket Max, cable length, Easypix Power unit to last luminaire: 50 m Max. number of fixtures connected to one Easypix Power: 6 x Easypix 1200, 24 x Easypix 300 or any mixture up to 7.2 m in length
Connections Power input: Male (C14) IEC chassis connector Data connection: RJ-45 Fixture-to-fixture: Quick plug-in system
Electrical AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: Easypix 300 luminaire 8 W, Easypix 1200 luminaire 32 W, +/- 10% Main fuse: 5 AT (slow blow) Power factor: >90
Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C Maximum surface temperature, steady state, Ta=40° C: 65° C Thermal data applies to all devices:
Approvals Easypix 300, Easypix 1200: EU safety: EN 60598-1, EN 60598-2-17, IEC/EN 60825-1 EU EMC: EN 55 015, EN 55 103, EN 61 000-3 US safety: UL 1598, UL 8750 Canadian safety: CAN/CSA C.22.2 No. 250 Easypix Power: EU safety: EN 61558-1, EN 61347-1, EN 61347-2-11, EN 61558-2-6, EN 61558-2-17 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 US safety: UL/CSA 60950-1, UL 244A Canadian safety: CSA C22.2 No. 177
CE ETL C US Intertek
Included Items Included with Easypix 300 and Easypix 1200:: 1 x luminaire: 2 x lengths Short DIN rail, 35 mm: Safety leaflet: All models include a Narrow beam angle diffuser (installed). Medium and Wide diffusers can be ordered from Martin: Included with Easypix Power:: 1 x Easypix Power supply device: 3-pin male XLR to male RJ-45 adapter: DMX termination plug, RJ-45: 2 x power cables (US plug / without plug): User manual:
Accessories Set of 8 Easypix 300 Diffusers, Narrow: 91611343 Set of 8 Easypix 300 Diffusers, Medium: 91611344 Set of 8 Easypix 300 Diffusers, Wide: 91611345 Set of 8 Easypix 1200 Diffusers, Narrow: 91611346 Set of 8 Easypix 1200 Diffusers, Medium: 91611347 Set of 8 Easypix 1200 Diffusers, Wide: 91611348 Extension cable, 0.5 m: 91611335 Extension cable, 1 m: 91611334 Extension cable, 5 m: 91611333 DIN rail set (ten 2 m lengths): 91602009 Safety cable, safe working load 50 kg: 91604003 DMX termination plug, RJ-45: 91613028 5-pin male XLR to male RJ-45 adapter: 11840111 5-pin female XLR to male RJ-45 adapter: 11840112 3-pin male XLR to male RJ-45 adapter: 11840087 3-pin female XLR to male RJ-45 adapter: 11840086
Spare Parts 5.0 AT main fuse: 05020010
Ordering Information Easypix 300™, Narrow: 90354170 Easypix 1200™, Narrow: 90354180 Easypix Power™: 90704410


  Version Language Size Uploaded
User manual en  2.03 MB May 18, 2018
ETL Authorization to Mark, Easypix 300 & 1200 en  222 KB May 11, 2018
ETL Authorization to Mark, Easypix Power en  224 KB May 11, 2018
