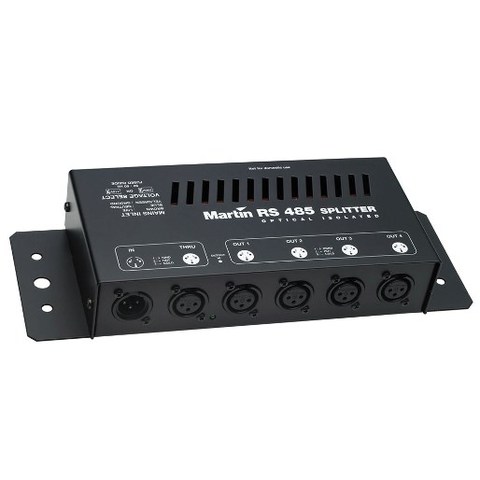

This optically isolated splitter amplifier allows you to add 4 branches to the data link for safe and trouble-free operation of larger DMX installations.
Features
- 4 Optically isolated and amplified DMX outputs
- Amplification allows the link to be extended over the maximum length specified by the DMX-512 standard.
- Several splitter amplifiers may be used on the same link if additional branches are required.
- Each branch of the link may be treated as an independent link with up to 32 fixtures each
- Robust construction for trouble-free use
Specifications
Physical
Length: 293 mm
Width: 108 mm
Height: 49 mm
Weight: 1.4 kg
Construction
Housing: Steel
Finish: Electrostatic powder-coated
Color(s): Black
Connections
Input: 3-pin XLR male
Throughput (output with no amplification): 3-pin XLR female
Outputs (amplified and optically isolated): 4 x 3-pin XLR female
Electrical
AC power: 115/230 V, 50/60 Hz, switch-selectable
Approvals
EU safety: EN 60950
EU EMC: EN 55103-1, EN 55103-2
Ordering Information
RS-485 Optosplitter: 90758060
