• Physical Diameter: 72 mm (2.9 in.) Height with clear front: 34 mm (1.4 in.) Height with dome front: 49 mm (2 in.) Height with directional front: 43 mm (1.7 in.) Weight, clear front and dome front models: 300 g (0.7 lbs.) Weight, directional front models: 350 g (0.8 lbs.)
  Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control options: Martin P3™ System Controller via Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP and/or RDM/DMX Control modes: RGB (RGB variants), white intensity (CW variants), basic Protocol detection: Automatic Setting and addressing: Martin P3™ System controller or RDM-compliant DMX controller DMX channels: 3/10 Calibration: Color and intensity for each Dot DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Via Martin P3™ System Controller
  Control/User Interface Device status: Multi-color visual indication Device test and reset: Magnetic button to call up fixture status and test fixture
  Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Options:

  Clear Front

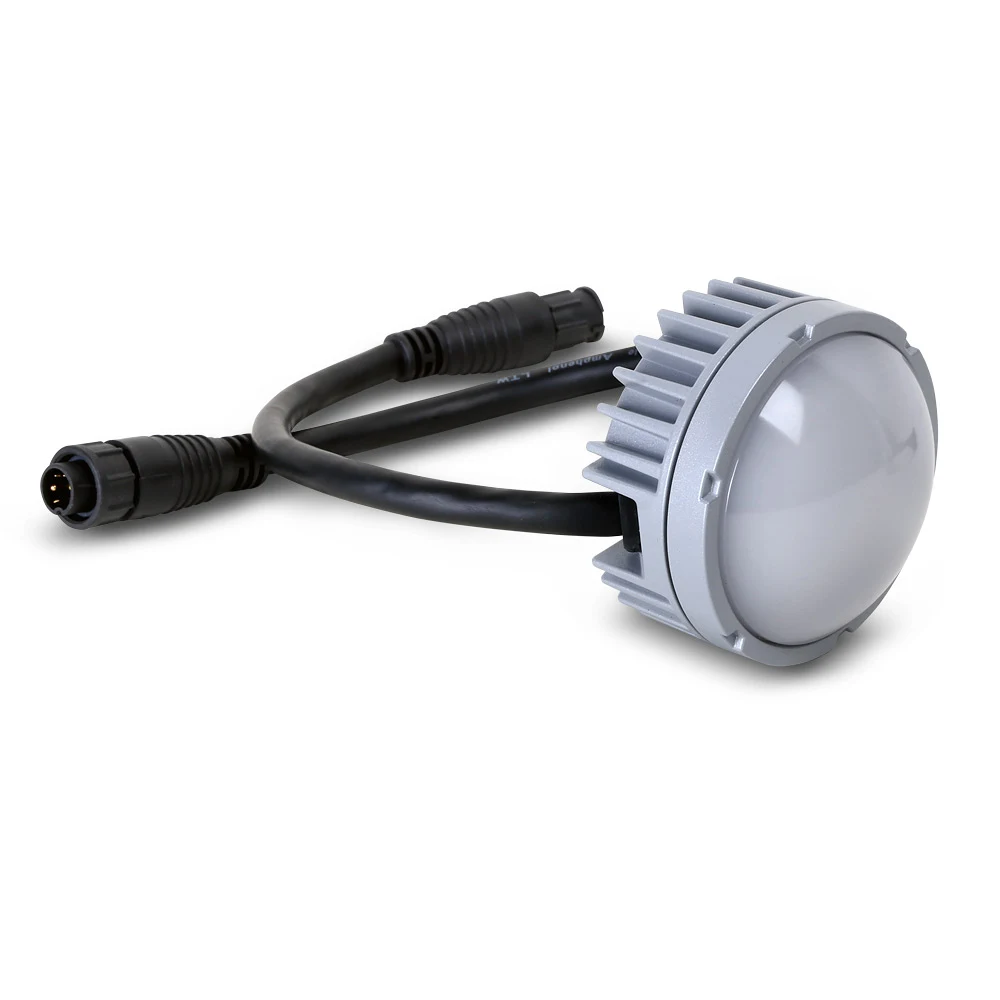

  Dome Front
  Directional Front (TIR lens)
  LED manufacturer, Exterior Dot-HP RGB: Osram
  LED manufacturer, Exterior Dot-HP CW: Seoul

  Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration

  *Figure obtained under manufacturer’s test conditions

  Photometric Data Color resolution: 16 bits per color (48 bit per pixel) Dot pitch: 72 mm - 500 mm (center-to-center) Color Temperature:

  Cool white (CW): 6700K±300K
  RGB: 2.000 – 10.000 K (adjustable via P3 or DMX)

  Viewing angle:

  Clear front: 103° x 103° (half-peak)
  Dome front: 125° x 125° (half-peak)
  Directional front: 22° x 22° (half-peak)

  RGB Dots:

  Total output, calibrated mode
  Clear front: 90 lumens, 36 cd
  Dome front: 62 lumens, 18 cd
  Directional front: 72 lumens, 270 cd
  Total output, non-calibrated mode
  Clear front: 120 lumens, 48 cd
  Dome front: 80 lumens, 24 cd
  Directional front: 96 lumens, 360 cd

  Cool White Dots:

  Total output, calibrated mode
  Clear front: 160 lumens, 62 cd
  Dome front: 110 lumens, 32 cd
  Directional front: 120 lumens, 590 cd
  Total output, non-calibrated mode
  Clear front: 210 lumens, 82 cd
  Dome front: 142 lumens, 41 cd
  Directional front: 160 lumens, 775 cd

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Video Processing

  Brightness control
  Gamma correction and control
  Color temperature control
  Color space control
  Calibration processing
  Synchronization

  Signal Protocol P3 (via Martin P3™ PowerPort) or RDM/DMX
  Construction Color: Electrostatic powder-coated (custom colors available by special order) (custom colors available on project basis) Base: Cast aluminum Protection rating: IP66 Impact resistance: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
  0,7g RMS Random (IEC 60068-2-64) RoHS compliant
• Installation Mounting points: Direct surface mount, optional mounting plate or optional mounting profile Orientation: Any
  Connections Power and data input: 6-pin custom (BBD) IP66-rated Power and data thru: 6-pin custom (BBD) IP66-rated Hot-pluggable
  Electrical Nominal input voltage: 48 VDC +/- 4% Power supply options: Martin P3™ PowerPort 1500, P3™ PowerPort 1000 IP, Martin™ IP66 PSU or generic 48 VDC PSU Typical total power consumption, calibrated mode: 5 W at full intensity, full white Typical total power consumption, uncalibrated mode: 7 W at full intensity, full white Surge protection: 4 KV
  Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 55° C (131° F) Minimum ambient temperature (Ta min.): -20° C (-4° F) Total heat dissipation (calculated, +/- 10%): 20 BTU/hr.
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
  Approvals EU safety: EN 60950-1, EN 60950-22 EU EMC: EN 55024, EN 55032 (Class A), EN 61000-3-2, EN 61000-3-3 US safety: UL 60950-1, UL 60950-22 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. 60950-1, No. 60950-22 Canadian EMC: ICES-003 Class A Australia/NZ: RCM
  Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin P3™ PowerPort 1000 IP Installation: P/N 90721080 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
  Accessories Magnetic Test Tool, set of 10: P/N 91610139 Mounting hardware:

  Bracket with flanges (set of 9), Exterior Dot-HP:P/N 91606020
  Mounting Profile Kit incl. dot bracket, screws and lock, Exterior Dot-HP, 57 mm (2.25 in.) : P/N 91606021
  Mounting Profile, Exterior Dot-HP / Pixline, 320 mm (12.6 in.): P/N 91611620
  Mounting Profile, Exterior Dot-HP / Pixline, 1280 mm (50.4 in.): P/N 91611610
  Mounting Profile Locks, Exterior Dot-HP / Pixline, set of 10: P/N 91611725

  Input Adapter Cables:

  Power + Data Input Adapter, 4-pin male XLR (for P3 PowerPort 1500) to female BBD, 0.25 m (0.9 ft.): P/N 91616046
  Power + Data Input Adapter, 5-pin male XLR + wire tails (for PSU) to female BBD, 0.25 m (0.9 ft.): P/N 91616048
  Power + Data Input Adapter, 5-pin male XLR + male Martin™ IP66 PSU to fem. BBD, 0.25 m (0.9 ft.): P/N 91616050
  Power + Data Input Adapter, 5-pin male XLR + 4-pin male XLR to female BBD, 0.25 m (0.9 ft.): P/N 91616049

  Output Adapter Cables:

  Power + Data Output Adapter male BBD to 4-pin female XLR, 0.25 m (0.9 ft.): P/N 91616047
  DMX Output Adapter, male BBD to 5-pin female XLR, 0.25 m (0.9 ft.): P/N 91616051

  Extension Cables, CMX Type:

  Power + Data Extension Cable, Installation type CMX, BBD-BBD 1 m (3.3 ft.): P/N 91616055
  Power + Data Extension Cable, Installation type CMX, BBD-BBD, 2.5 m (8.2 ft.): P/N 91616056
  Power + Data Extension Cable, Installation type CMX, BBD-BBD, 5 m (16.4 ft.): P/N 91616057
  Power + Data Extension Cable, Installation type CMX, BBD-BBD, 10 m (32.9 ft.): P/N 91616058
  Power + Data Extension Cable, Installation type CMX, BBD-BBD, 25 m (82.1 ft.): P/N 91616059
  Power + Data Extension Cable, Installation type CMX, without connectors, 100 m (328.1 ft.): P/N 91616060

  Extension Cables, Low Smoke Zero Halogen Type:

  Power + Data Extension Cable, Installation type LSZH, BBD-BBD 1 m (3.2 ft.): P/N 91616012
  Power + Data Extension Cable, Installation type LSZH, BBD-BBD 2.5 m (8.2 ft.): P/N 91616013
  Power + Data Extension Cable, Installation type LSZH, BBD-BBD 5 m (16.4 ft.): P/N 91616014
  Power + Data Extension Cable, Installation type LSZH, BBD-BBD 10 m (32.8 ft.): P/N 91616015
  Power + Data Extension Cable, Installation type LSZH, BBD-BBD 25 m (82 ft.): P/N 91616016
  Power + Data Extension Cable, Installation type LSZH, without connectors, 100 m (328.1 ft.): P/N 91616017

  Loose Connectors:

  Power + Data Cable Connector, BBD, male: P/N 91611750
  Power + Data Cable Connector, BBD, female: P/N 91611751
  Blanking caps for unused female BBD connectors, set of 10: P/N 91616052

  Ordering Information Exterior Dot-HP RGB, Aluminum, Clear Front: P/N 90357683 Exterior Dot-HP RGB, Aluminum, Dome Front: P/N 90357685 Exterior Dot-HP RGB, Aluminum, Directional Front (TIR lens): P/N 90357686 Exterior Dot-HP CW, Aluminum, Clear Front: P/N 90357688 Exterior Dot-HP CW, Aluminum, Dome Front: P/N 90357687 Exterior Dot-HP CW, Aluminum, Directional Front (TIR lens): P/N 90357689 *Dots in the Exterior Dot-HP range are supplied in cardboard boxes containing multiples of 9 dots. Remaining dots (and orders that consist of less than 9 dots total) are supplied in individual packs.
