MAC Allure Profile
Udgået

Første P3-aktiveret farveblandingspot

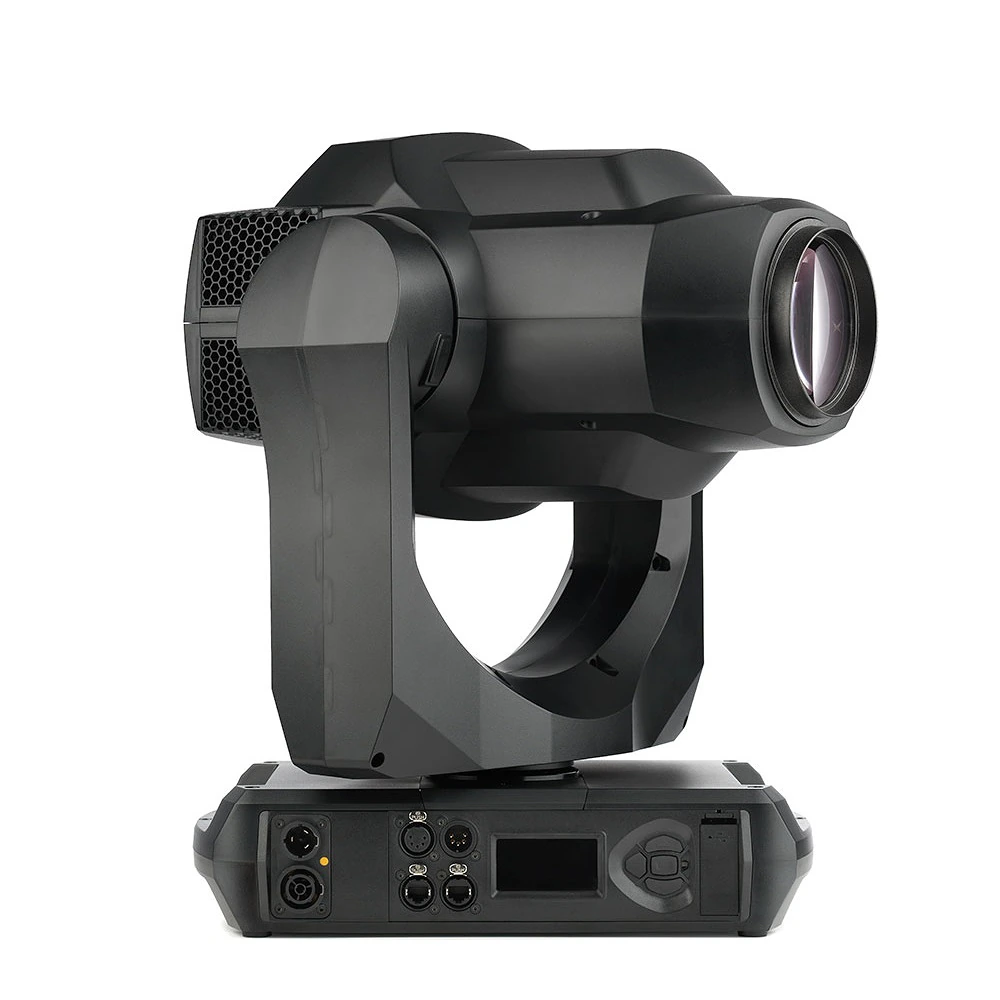

MAC Allure Profile

MAC Allure™ Profile er udstyret med en innovativ RGBW-lysenhed med unik 7-segmentet strålestyring. Med øjeblikkelig farvecontrol og pixeleret stråle muliggør MAC Allure Profile dynamisk projektion og effekter i luften, som tidligere ikke var mulig. Den proprietære lysenhed sætter nye standarder for kompakthed og effektivitet, som tidligere var forbundet med større og dyrere fixtures. For at lette programmering og indholdsoprettelse er dette også det første lysfixture, der inkorporerer Martins P3-control. Den pixelerede stråle kan stadig kontrolleres eller pixel-mappes via DMX- og Art-Net-protokoller, men der kan nu øjeblikkeligt skiftes eller krydsfades til P3 eller omvendt. MAC Allure Profile er designet til at understøtte rental- og install-klienter og er ideel til koncert/turnering, tv, corporate, religiøse bygninger, koncertsteder, natklubber og krydstogtskibe.

  • FIRST PIXELATED SPOT

    The light & color engine is divided into seven full color pixels. Pixels can be focused on projection or in the beam for aerial effects. You have full color & intensity control over each pixel via DMX, or create effects via the fixture’s effects engine.

  • P3 INCORPORATED

    On top of DMX, Art-Net and sACN, MAC Allure fixtures can be controlled via P3. This allows a rig of multiple fixtures to deliver cohesive content that blends with video content on panels or creative LED products. Via a single data feed, switch between normal lighting & P3 control and cross fade between the two.


  • BUILT FOR PIXEL MAPPING

    With an all solid state color mixing system, instant color and intensity response, 7-pixel beam technology, & P3 control, MAC Allure products are built for pixel mapping. The color palette can also be set to fully match the color space of any other P3-driven product in the rig, allowing MAC Allure products to fit in seamlessly.

  • BRIGHT VIBRANT COLORS

    The RGBW system delivers vibrant colors with a brightness only expected from much bigger fixtures. The color calibrated system excels on subtle pastels and white tones making any MAC Allure Profile in the rig match the color point when they must.



  • BROADCAST SAFE

    MAC Allure LED drivers run the light engines at high and precise refresh rates ensuring there is no flicker or banding on any broadcast application.


  • DOWNSIZED TECHNOLOGY IS OUR TRADEMARK

    MAC Allure fixtures save space in trucks transit and trusses, fitting nicely into smaller sets and spaces. With their compact design these fixtures are extremely easy to handle and reduce the problem of truss loading constraints. The fixture typically fits into in four unit flight cases.

featured content

FIRST PIXELATED SPOT

The light & color engine is divided into seven full color pixels. Pixels can be focused on projection or in the beam for aerial effects. You have full color & intensity control over each pixel via DMX, or create effects via the fixture’s effects engine.

featured content

P3 INCORPORATED

On top of DMX, Art-Net and sACN, MAC Allure fixtures can be controlled via P3. This allows a rig of multiple fixtures to deliver cohesive content that blends with video content on panels or creative LED products. Via a single data feed, switch between normal lighting & P3 control and cross fade between the two.


featured content

BUILT FOR PIXEL MAPPING

With an all solid state color mixing system, instant color and intensity response, 7-pixel beam technology, & P3 control, MAC Allure products are built for pixel mapping. The color palette can also be set to fully match the color space of any other P3-driven product in the rig, allowing MAC Allure products to fit in seamlessly.

featured content

BRIGHT VIBRANT COLORS

The RGBW system delivers vibrant colors with a brightness only expected from much bigger fixtures. The color calibrated system excels on subtle pastels and white tones making any MAC Allure Profile in the rig match the color point when they must.



featured content

BROADCAST SAFE

MAC Allure LED drivers run the light engines at high and precise refresh rates ensuring there is no flicker or banding on any broadcast application.


featured content

DOWNSIZED TECHNOLOGY IS OUR TRADEMARK

MAC Allure fixtures save space in trucks transit and trusses, fitting nicely into smaller sets and spaces. With their compact design these fixtures are extremely easy to handle and reduce the problem of truss loading constraints. The fixture typically fits into in four unit flight cases.

Videoer





















Funktioner

  • First pixelated spot with light and color engine divided into seven full color pixels
  • Truly sustainable workhorse moving head
  • Integrated Martin P3 visual control as well as DMX, Art-Net and sACN incorporated onboard
  • Built for pixel mapping with an all solid state color mixing system, instant color and intensity response, and seven pixel beam technology
  • High and precise refresh rates ensure no flicker or banding on any broadcast application
  • Color calibrated system excels on subtle pastels and white tones to ensure consistent colors across fixtures
  • Boasts an extremely compact footprint in spite of its powerful performance features

Specifikationer

  • Physical Length: 385 mm (15.2 in.) Width: 410 mm (16.2 in.) across yoke Height: 609 mm (24.0 in.) maximum 603 mm (23.8 in.) head straight up Weight: 17.6 kg (38.8 lbs.) Minimum center-to-center distance in side-by-side installation: 510 mm (20.1 in.)
    Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: RGB(W), independently variable 0 - 100% Color wheel: Virtual, multiple colors, split colors and open, indexing, continuous rotation, random color Rotating gobo wheel: 6 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake Iris: Variable 0 - 100% including pulse effects Zoom: Motorized Color temperature control: Variable 2000 - 8000 K Prism: 4 facet, fully indexed Dimmer/shutter: 0 - 100% continuous electronic dimming, regular and random strobe and pulse effects, instant open and blackout Dimming options: Choice of four dimming curves Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
    Control and Programming Setting and addressing: Control panel with backlit graphic display and 4 buttons or via DMX 16-bit control: Dimming, color, rotating gobos, zoom, focus, pan and tilt DMX channels: 32/68 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Fixture software update: USB memory device or over DMX link
    Optics Zoom range: 12° - 36° one-tenth peak (1:3) Light source: 7 x 60W RGBW LEDs Minimum LED lifetime: 50,000 hours (to >80% luminous output)* Total LED engine power: ~420 W *Figure obtained under manufacturer's test conditions
    Photometric Data Light engine luminous output: 14,000 lumens Fixture luminous output: 6500 lumens Calibrated default white: 6500 K CRI (Color Rendering Index) : >80 CQS (Color Quality Scale): 88 TM-30 Rf (IES TM-30-15 Fidelity Index): 82 TM-30 Rg (IES TM-30-15 Gamut Index): 109 TLCI (Television Lighting Consistency Index): 82

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Housing: High-impact flame-retardant thermo-plastic Color: Black (white housing option available, made to order) Protection rating: IP20
    Installation Mounting Parts: 2 pairs of 1/4-turn locks Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 1.0 m (3.3 ft.)
    Connections AC power input/output: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector or NAC3FX-M connector) DMX and RDM data in/out: 5-pin locking XLR Ethernet data: Neutrik EtherCon in/out
  • Electrical AC power: 120-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Power Consumption: 73 W (all effects static, zero light output) Half-cycle RMS inrush current at 230 V, 50 Hz: 16.6 A
    Typical Power and Current Typical power data, extended color mode, all LEDs at 100% intensity:

    100 V, 60 Hz: 4.8 A, 480 W, PF 0.99
    120 V, 60 Hz: 4.0 A, 480 W, PF 0.99
    208 V, 60 Hz: 2.4 A, 480 W, PF 0.97
    230 V, 50 Hz: 2.1 A, 480 W, PF 0.97
    240 V, 50 Hz: 2.0 A, 480 W, PF 0.97

     Typical power data, calibrated mode, full intensity at 6500 K:

    100 V, 60 Hz: 3.7 A, 370 W, PF 0.99
    120 V, 60 Hz: 3.1 A, 370 W, PF 0.99
    208 V, 60 Hz: 1.9 A, 370 W, PF 0.96
    230 V, 50 Hz: 1.7 A, 370 W, PF 0.96
    240 V, 50 Hz: 1.6 A, 370 W, PF 0.95

     Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
    Thermal Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum surface temperature, steady state, Ta=40° C: 75° C (167° F) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17, EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. E598-2-17 Canadian EMC: CAN ICES-003(B)/NMB-003(B); CAN ICES-005 (B) / NMB-005 (B) Australia/NZ: RCM
    Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suiter (including firmware uploader) Free download from www.martin.com
    Accessories SIP Packaging MAC Allure™: P/N 91611860 Three-unit flight case for MAC Allure™: P/N 91515052 Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

     Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

     Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789 Connectors:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

     (*Please order SIP variant fixtures to obtain the required SIP foam flight case inserts) Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Ordering Information Models:

    MAC Allure™ Profile EPS (in cardboard box, polystyrene packaging): P/N 90250005HU
    MAC Allure™ Profile SIP (in cardboard box with SIP foam flight case insert): P/N 90250010HU
    MAC Allure™ Profile, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90250000HU

Downloads

Specifications
  Version Sprog Størrelse Uploadet
file type icon MAC Aura PXL and MAC Allure family - SiP Spec Sheet
en version A, opdateret: maj 2021
A  en  2,83 MB maj 2021
file type icon MAC Aura PXL and MAC Allure family - Flightcase Spec Sheet
en version A, opdateret: maj 2021
A  en  1,13 MB maj 2021
file type icon MAC Allure Profile - Spec Sheet
en version C, opdateret: aug 2021
C  en  1,72 MB aug 2021
file type icon MAC Allure Profile - Acoustic Test Report
en version A, opdateret: aug 2021
A  en  1,53 MB aug 2021
Manuals
  Version Sprog Størrelse Uploadet
file type icon MAC Allure Profile - Guide de l'Utilisateur
fr version A, opdateret: apr 2019
A  fr  572 kB apr 2019
file type icon MAC Allure Profile - Bedienungsanleitung
de version A, opdateret: apr 2019
A  de  500 kB apr 2019
file type icon MAC Allure Profile - Safety and Installation Manual
en version A, opdateret: aug 2021
A  en  4,35 MB aug 2021
file type icon MAC Allure Profile - User Guide
en version A, opdateret: mar 2019
A  en  937 kB mar 2019
file type icon MAC Allure Profile - Sicherheits und Installationshinweise
de version A, opdateret: mar 2019
A  de  1,97 MB mar 2019
file type icon MAC Allure Profile - Manuel d'Installation et Sécurité
fr version A, opdateret: mar 2019
A  fr  2,04 MB mar 2019
Photometrics
  Version Sprog Størrelse Uploadet
file type icon MAC Allure Profile - Photometric files
en version A, opdateret: okt 2021
A  en  3,24 MB okt 2021
Illustrations
  Version Sprog Størrelse Uploadet
file type icon MAC Allure Profile & Wash PC - 2D Dimensions (PDF)
en version A, opdateret: aug 2021
A  en  552 kB aug 2021
file type icon MAC Allure Profile - Static Gobo Wheel - 2D dimensions (PDF)
en version A, opdateret: maj 2019
A  en  166 kB maj 2019
file type icon MAC Allure Profile & Wash PC - 2D Dimensions (DWG)
en version A, opdateret: aug 2021
A  en  7,84 MB aug 2021
Symbols
  Version Sprog Størrelse Uploadet
file type icon Martin Professional GDTF Library
en version A, opdateret: okt 2023
A  en  203 bytes okt 2023
file type icon AutoCAD 2D Symbols
en version 2.8, opdateret: jan 2026
2.8  en  4,42 MB jan 2026
file type icon AutoCAD 3D Symbols
en version 2.8, opdateret: jan 2026
2.8  en  18,7 MB jan 2026
file type icon Vectorworks Symbols
en version 4.6, opdateret: jan 2026
4.6  en  249 MB jan 2026
CAD Drawings
  Version Sprog Størrelse Uploadet
file type icon MAC Allure Profile & Wash PC - Head Horizontal - 3D DWG
en version A, opdateret: aug 2021
A  en  9,7 MB aug 2021
file type icon MAC Allure Profile & Wash PC - Head Horizontal - 3DS
en version A, opdateret: aug 2021
A  en  9,53 MB aug 2021
file type icon MAC Allure Profile & Wash PC - Head Vertical - 3D DWG
en version A, opdateret: aug 2021
A  en  8,26 MB aug 2021
file type icon MAC Allure Profile & Wash PC - Head Vertical - 3DS
en version A, opdateret: aug 2021
A  en  8,58 MB aug 2021
Compliances
  Version Sprog Størrelse Uploadet
file type icon MAC Allure Series - ETL Listing Verification
en version A, opdateret: maj 2019
A  en  108 kB maj 2019
file type icon MAC Allure Profile - EU Declaration of Conformity
en version A, opdateret: aug 2021
A  en  599 kB aug 2021
file type icon MAC Allure Profile - Déclaration de Conformité Européenne
fr version A, opdateret: aug 2021
A  fr  598 kB aug 2021
file type icon MAC Allure Profile - FCC Declaration of Conformity
en version A, opdateret: aug 2021
A  en  303 kB aug 2021
file type icon Safety Document (SDS) for Batteries
en version D, opdateret: jan 2026
D  en  332 kB jan 2026
Service Notes
  Version Størrelse Uploadet
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, opdateret: okt 2020
4  743 kB okt 2020
Firmware
  Version Størrelse Uploadet
download icon for MAC Allure Profile - Firmware MAC Allure Profile - Firmware
version 2.0.1, opdateret: jun 2026
2.0.1   jun 2026
