Cyclo 04 (discontinued)

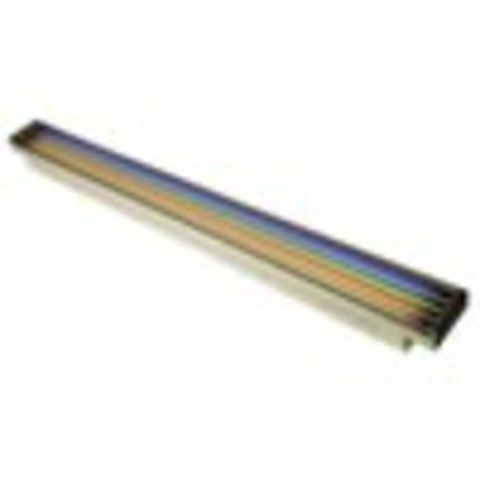

Cyclo 04
Larger Images

Cyclos 03 and 04 offer full color mixing using RGB technology to generate virtually all colors and shades or white light of any color temperature.

Features

Specifications

Physical Length: 1190 mm Width: 98 mm Height: 88 mm Weight: 5.5 kg
Dynamic Effects Color mixing: RGBW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Cool white (4000 K): 0 - 100%
Control and Programming Control options: Analog 1-10 V Control via 516 Converter: 16 channels Dimmer channels required per independently controlled Cyclo group: 4 Number of Cyclos per group (fixtures wired in series): 1-10
Construction Housing: Mild steel Color(s): White (NCS 0402-G06-Y) Reflector: High specular 99.9% aluminum Protection rating: IP20
Connections AC power input: Quick connectors 0-10 V analog: Quick connectors
Typical Power and Current 230 V, 50 Hz: 128 W, 0.6 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Included Items Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005 Osram T5 FH 28 W/840 HE 4000 K cool white tube: 97020001
Accessories Martin 516 II DMX to 0-10 V Converter: 90758225 Diffuser front for Cyclo 04: 91611078 Osram T5 FH 28 W/827 HE 2700 K warm white tube: 97020000 Osram T5 FH 28 W/865 HE 6500 K daylight white tube: 97020002
Spare Parts Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005 Osram T5 FH 28 W/840 HE 4000 K cool white tube: 97020001
Ordering Information Cyclo 04: 90550000

Downloads

  Version Language Size Uploaded
Hints And Tips
Optimizing Cyclo Tube Lifetimes
en version A, updated: May 2018
A   en    May 2018
Running Cyclos at Very Low Ambient Temperatures
en version A, updated: May 2018
A   en    May 2018
