Cyclo Directional (discontinued)

Cyclo Directional
Larger Images

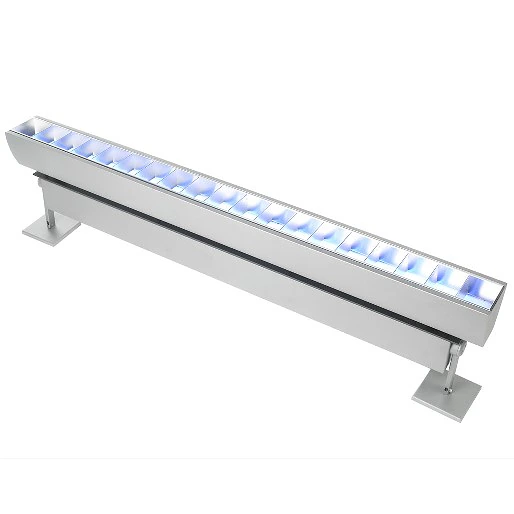

The Cyclo Directional provides a simple dynamic lighting solution for retail and other commercial applications, offering a bright linear luminaire that uniformly floodlights surfaces in color and variable white light.

Features

  • 54 W T5 fluorescent tubes
  • Long lamp life (20 000 hrs)
  • RGB color mixing, variable color temperature
  • High optical performance: uniform distribution of light and color
  • 0-100% intensity control
  • High output: 3 x 54 W T5 fluorescent tubes
  • DMX control
  • End-user programming: no extra controller required
  • Choice of surface or track mounting with directional aiming

Specifications

Physical Length: 1200 mm Width: 107 mm Height: 285 mm from lighting track, mounting arms included Height: 218 mm without mounting arms Weight: 8.7 kg
Dynamic Effects Color mixing: RGB Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 3 Stand-alone memory: 20 scenes DMX address setting: DIP switch Stand-alone and host/client programming: DIP switch Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 54 W T5 fluorescent tubes Approved lamps: Osram T5 HO Series Average lifetime: 20 000 hours Socket: G5
Construction Housing: Mild steel Finish: Electrostatic powder-coated Colors: White, titanium Reflector(s): High specular 99.9% aluminum Protection rating: IP20
Installation Mounting points: Lighting track with universal track adaptor. Surface mount with optional brackets Orientation: Any Minimum free space: 25 mm
Connections Power connection: Ensto quick connector Data connection: RJ-45 sockets
Electrical AC power: 100-120 V (US model), 198-240 V (EU model), 50/60 Hz
Typical Power and Current 100 V, 60 Hz: 163 W, 1.6 A 120 V, 60 Hz: 180 W, 1.5 A 208 V, 60 Hz: 180 W, 0.87 A 230 V, 50 Hz: 181 W, 0.80 A 250 V, 50 Hz: 179 W, 0.73 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Cooling: Convection Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz / 110 V, 60 Hz): 618 BTU/hr.
Approvals US safety: UL 1598 Canadian safety: CSA C22.2 No. 250.0-00 EU safety: EN 60598-1, EN 60598-2-1 EU EMC: EN 55015, EN 60555-3
CE ETL C US Intertek
Included Items Osram T5 FQ 54 W/60 HO red tube: 97020006 Osram T5 FQ 54 W/66 HO green tube: 97020007 Osram T5 FQ 54 W/67 HO blue tube: 97020008 Ensto 3-pole 16 A/250 V male connector: 05347202 Ensto 3-pole 16 A/250 V female connector: 05327202
Accessories Wall/ceiling bracket (set of 2), titanium: 91611187 Wall/ceiling bracket (set of 2), white: 91611186 DMX termination plug, RJ-45: 91613028 RJ-45 patch cable, 250 mm: 11840088 Power interconnect cable, Ensto male/female, 15 cm: 11501019 3-pin male XLR to male RJ-45 adapter: 11840087 3-pin female XLR to male RJ-45 adapter: 11840086 CAT5 network cables 2 m x 50 pieces: 91611044 CAT5 network cables 5 m x 30 pieces: 91611045 CAT5 network cables 10 m x 15 pieces: 91611046
Spare Parts Osram T5 FQ 54 W/60 HO red tube: 97020006 Osram T5 FQ 54 W/66 HO green tube: 97020007 Osram T5 FQ 54 W/67 HO blue tube: 97020008
Ordering Information Cyclo 03 Directional, titanium, 230 V: 90550055 Cyclo 03 Directional, white, 230 V: 90550050 Cyclo 03 Directional, titanium, 110 V: 90555081 Cyclo 03 Directional, white, 110 V: 90555080
