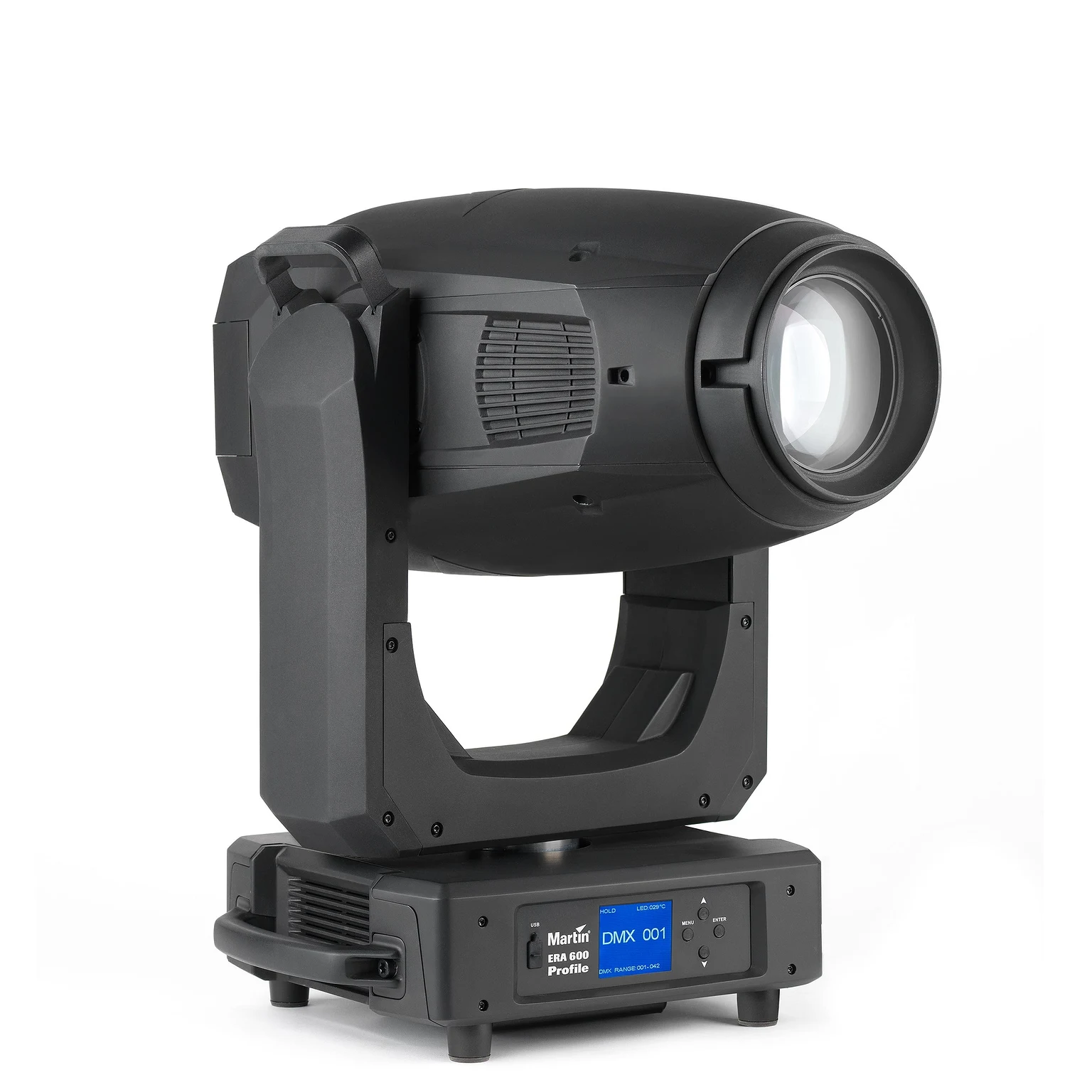

ERA 600 Profile

550 W LED moving head profile with CMY color mixing

ERA 600 Profile
Larger Images

Designed to fulfill the demand for a compact, tour-worthy, LED profile moving head with enhanced gobo load-out, the Martin ERA 600 Profile combines a no-nonsense, feature-loaded and cost-efficient profile that’s perfect for entertainment and rental applications. It bundles an incredibly efficient 550 W, 6,500 K LED engine that produces 19,000 lumens and delivers sharp image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, CMY/CTO, iris for beam adjustment and dual rotating gobo wheels plus an additional static wheel, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prisms.

Whether being used for large concerts and touring or corporate shows, cruise lines, houses of worship, and live TV, the ERA 600 Profile is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.

  • COMPACT AND DESIGNED FOR THE ROAD

    The ERA 600 Profile is very compact and low weight for its class, making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

  • ULTRA-BRIGHT LED LIGHT SOURCE

    With an incredibly efficient 550 W light source, the ERA 600 Profile delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

  • GREAT COLOR PALETTE

    The ERA 600 Profile features precise color temperature control with variable color temperature correction (CTO) and vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps & extends overall color gamut and brightness.

  • 1:8 ZOOM

    With 6 to 45 degrees of zoom, the ERA 600 Profile works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.

  • LOW MAINTENANCE & POSITIVE ROI

    Steady, stable LED light engine eliminates lamp aging, loss of output, shifts in color temperature and fans sucking dirt through optical path. And, the modular design makes accessing and replacing optical parts safe, quick, and easy.

featured content

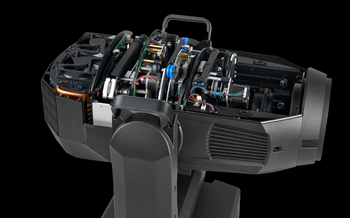

COMPACT AND DESIGNED FOR THE ROAD

The ERA 600 Profile is very compact and low weight for its class, making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

featured content

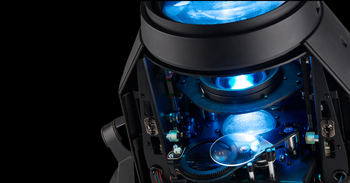

ULTRA-BRIGHT LED LIGHT SOURCE

With an incredibly efficient 550 W light source, the ERA 600 Profile delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

featured content

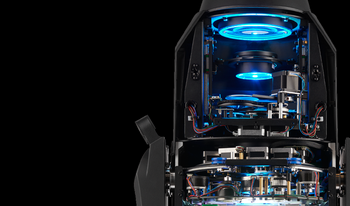

GREAT COLOR PALETTE

The ERA 600 Profile features precise color temperature control with variable color temperature correction (CTO) and vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps & extends overall color gamut and brightness.

featured content

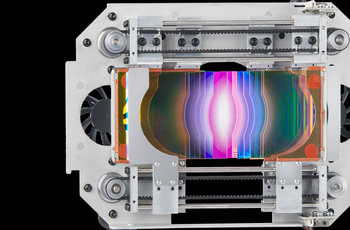

1:8 ZOOM

With 6 to 45 degrees of zoom, the ERA 600 Profile works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.

featured content

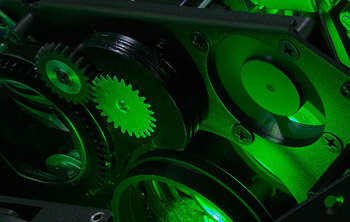

LOW MAINTENANCE & POSITIVE ROI

Steady, stable LED light engine eliminates lamp aging, loss of output, shifts in color temperature and fans sucking dirt through optical path. And, the modular design makes accessing and replacing optical parts safe, quick, and easy.

Videos





Features

  • Bright 550 W / 6,500 K LED light source
  • 19,000 lumen output
  • Crisp optics with flat field
  • 1:8 Fast zoom
  • CMY color mixing - vibrant color mixing with a superior palette of colors matching the MAC range
  • Linear CTO - daylight to tungsten CCT control and expansion of the CMY palette
  • 7-slot color wheel - for added color choice and split color effects
  • 14 rotating/indexing gobos - all renowned Martin glass gobos
  • 8 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Two prisms - 4-facet and linear – rotation and index control for dynamic effects
  • Heavy frost - For wash effects
  • Compact and low weight design

Specifications

  • Physical Weight: 31.3 kg (69.0 lbs.) Minimum center-to-center distance in side-by-side installation: 660 mm (26.0 in.) Length (head): 544 mm (21.5 in.) Length (base): 416 mm (16.4 in.) Width (base): 290 mm (11.4 in.) Width (across yoke): 390 mm (15.4 in.) Height (head straight up): 734 mm (28.9 in.) Height (maximum): 745 mm (29.4 in.)
    Dynamic Effects Color mixing: CMY, independently variable 0-100% Color wheel: 7 color filters plus open Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Second rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 8 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Prism: 2 rotating/indexing prisms (4-facet circular and 6-facet linear) Frost: Heavy frost effect Color temperature control: Variable 6500 - 2700 K Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Zoom: Motorized Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
    Control and Programming Control options: DMX DMX channels: 35 16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt Setting and addressing: Control panel with backlit LCD display DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
    Optics Front lens diameter: 120 mm (4.75 in.) Zoom range: 6° - 45° (1:7.5) Light source: 550 W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Manufacturer´s figure obtained under manufacturer´s test conditions
    Photometric Data

    Light engine luminous output: 37,000 lumens LED refresh rate : 3600 Hz Standard Fixture luminous output: 19,000 lumens CRI (Color Rendering Index): >70 CQS (Color Quality Scale): >67 TM-30 Rf (IES TM-30-15 Fidelity Index): >65 TM-30 Rg (IES TM-30-15 Gamut Index): >96 TLCI (Television Lighting Consistency Index): >45 CCT: 6800 K (+/- 250 K) Peak Luminous Intensity: 1,102,000 cd With Optional CRI Boost Filter Fixture luminous output: 13,000 lumens CRI (Color Rendering Index): >79 CQS (Color Quality Scale): >74 TM-30 Rf (IES TM-30-15 Fidelity Index): >75 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >56 CCT: 6500 K (+/- 250 K) Peak Luminous Intensity: 783,000 cd
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Gobos Maximum image diameter: 19 mm (0.75 in.) Gobo material: Borofloat 33 External diameter: 23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.) Maximum gobo thickness: 1.1 mm (0.04 in.) Coating: Heavy matted aluminum
    Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
    Connections DMX and RDM data in/out: 5-pin locking XLR AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
  • Electrical AC power: 100-240 VAC (nominal), 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Half-cycle RMS inrush current at 230 V, 50 Hz: 21.8 A Typical power consumption, all effects static, zero light output: 64 W Maximum total power consumption: 856 W Recommended MCB (Miniature Circuit Breaker) per IEC 60898/UL489/CSA C22.2 No. 5: Type D
    Typical Power and Current 120 V, 60 Hz: 6.5 A, 778 W, PF 0.994 230 V, 50 Hz: 3.2 A, 760 W, PF 0.967
    Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Maximum total heat dissipation, calculated, +/- 10%: 2920 BTU/hr.
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 46.1 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 39.1 dB(A)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-3 (B) / NMB-3 (B); ICES-5 (B) / NMB-5 (B) Australia/NZ: RCM
    Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
    Related Items Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com Martin Companion Cable USB/DMX hardware interface: P/N 91616091
    Accessories

    Conversion kits
    Framing Module (converts ERA 600 Profile to Performance): P/N 5125849-00
    Gobo Wheel 3 Effects Module (converts ERA 600 Performance to Profile): P/N 5131771-00
    Optical accessories
    CRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614058
    Power input cables
    Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    Power relay cables, 16 A
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
    Power connectors
    Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
    Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
    Installation hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Half-coupler Clamp: P/N 91602005
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    T-shape omega bracket with 1/4 turn, PN 91602008

    Ordering Information ERA 600 Profile in cardboard box: P/N 9025123579 ERA 600 Profile (White) in cardboard box : P/N 9025123580 Flightcase, two unit, for 2 x ERA 600 Performance / Profile: P/N 91512205
