EvenLED (discontinued)

EvenLED
Larger Images

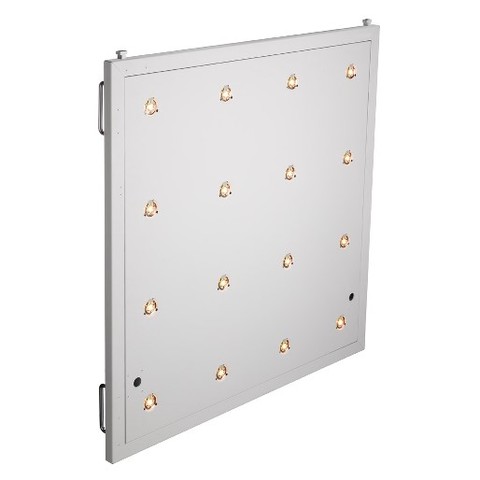

EvenLED is a high-brightness modular system of RGB LED panels used together with a rear-projection material to create a completely even and flicker-free field of light over cycloramas and other semi-transparent projection surfaces.

Features

  • Optical Clarity: Evenly spaced, individually controlled 6 W RGB LEDs
  • Optical Clarity: Totally smooth, even, and flicker-free illumination
  • Extremely smooth dimming
  • DMX control
  • Cabling: Daisy-chained power and data
  • Easy to assemble and rig; very service friendly
  • Needs less than .5 m of stage depth
  • Up to 10 m high, unlimited width
  • Construction: Light-weight modules, easy to handle, cutting cost and time
  • High efficiency, low power consumption, long lifetime
  • Silent operation, little heat generated (no fans)
  • 16 pixels per m2 enables easy creation of static and dynamic looks

Specifications

Physical Height: 1014 mm Width: 995 mm Depth: 71 mm Weight: 10 kg
Control and Programming Control: DMX DMX channels: 96 per independently controlled panel Control resolution: 16-bit control of each color Protocol: USITT DMX512/1990
Photometric Data Light source: Proprietary 6 W RGB LED array Resolution, one fixture: 4 x 4 pixels Pitch (pixel center-to-center): 250 mm Pixels per m2: 16 Color resolution: 16 bits per color Viewing angle: 112° (+56°, -56°) Minimum LED source lifetime (to 70% of initial output level): 40 000 hours at full intensity* *Figure obtained under manufacturer´s test conditions:
Construction Panels: Aluminum Color: White Protection rating: IP20
Installation Orientation: Vertical Mounting: Suspended using mounting rail and clamps only; max. 10 panels per suspended column
Connections Power in/out: Neutrik PowerCon Data input: 5-pin locking XLR Data output: 5-pin locking XLR Data through: 5-pin locking XLR
Electrical AC power: 100-120/200-240 V nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage with integral current overload protection Standby power: 24 W Main fuse (not user-replaceable): F 6.3 A
Typical Power and Current 100 V, 50 Hz: 151 W, 1.6 A, PF 0.978 100 V, 60 Hz: 151 W, 1.6 A, PF 0.988 110 V, 60 Hz: 151 W, 1.4 A, PF 0.985 120 V, 60 Hz: 151 W, 1.3 A, PF 0.981 208 V, 60 Hz: 151 W, 0.8 A, PF 0.915 230 V, 50 Hz: 152 W, 0.8 A, PF 0.892 240 V, 50 Hz: 152 W, 0.7 A, PF 0.887 PF = power factor: Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C Maximum surface temperature, steady state, Ta=40° C: 80° C Total heat dissipation (calculated, +/- 10%): 530 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17, IEC/EN 60825-1 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 US safety: UL 1573 Canadian safety: CAN/CSA C22.2 No. 60950-1
CE ETL C US Intertek
Included Items User manual: 35000222
Accessories 3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804 Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: 05342805 PowerCon daisy-chain power cable, 1.4 m: 11850099 PowerCon daisy-chain power cable, 2.25 m: 11850100 PowerCon daisy-chain power cable, 3.25 m: 11850101 Six-unit flightcase for 6 x EvenLED, 1 x 1 m: 91515005
Ordering Information EvenLED™ panel, 1 x 1 m: 90354500 EvenLED™ Hanging Bracket 1 m wide: 91602011 EvenLED™ Software Uploader: 90758097 EvenLED™ DMX Thief™ Addressing Tool, EU model: 90758096 EvenLED™ DMX Thief™ Addressing Tool, US model: 90758098
