Exterior Dot-HP

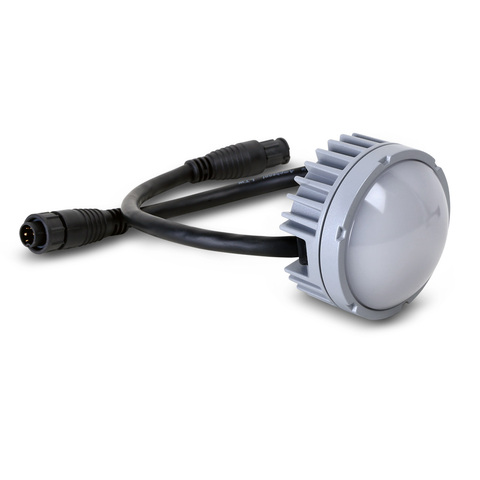

Exterior dot hp  diffused dome a3 vert medium
Larger Images

Martin by HARMAN Exterior Dot-HP is a bright, outdoor-rated dot designed to create media facades or perimeter lighting on large buildings and structures for long-distance viewing. This high-performance exterior LED dot for large venues allows for long fixture runs with variable pixel pitches for flexible designs. A creative tool for lighting designers, the Exterior Dot-HP is available in two versions – RGB color mixing or cool white – with a number of front designs for a variety of unique looks. It is driven by the Martin P3 System Controller family for easy setup and video display. The Exterior Dot-HP is also compatible with RDM/DMX for smaller setups.

How processing works for LED video

  • High-intensity calibrated video dot
  • Rugged IP66 housing for permanent outdoor installations
  • Easy setup and long cable runs for clean installation

Videos

Features

  • 100 lumen per dot calibrated
  • Available in clear front, diffuser dome and directional lens variants
  • RGB or cold white LED engine
  • Flexible mounting system allows for customized solutions
  • Local integral in-built diagnostics tool
  • High-quality 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality
  • P3/RDM/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input over single cable
  • Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system

Tech Specs

PhysicalDiameter: 72 mm (2.9 in.)Height with clear front: 34 mm (1.4 in.)Height with dome front: 49 mm (2 in.)Height with directional front: 43 mm (1.7 in.)Weight, clear front and dome front models: 300 g (0.7 lbs.)Weight, directional front models: 350 g (0.8 lbs.)
Control and ProgrammingControl options: Martin P3™ System Controller via Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP and/or RDM/DMXProtocol detection: AutomaticControl modes: RGB (RGB variants), white intensity (CW variants), basicDMX channels: 3/10Setting and addressing: Martin P3™ System controller or RDM-compliant DMX controllerControl resolution: 16-bit (P3) or 8-bit (DMX) control of each colorCalibration: Color and intensity for each DotDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Firmware update: Via Martin P3™ System Controller
Control/User InterfaceDevice status: Multi-color visual indicationDevice test and reset: Magnetic button to call up fixture status and test fixture
OpticsOptionsClear FrontDome frontDirectional front (TIR lens)LED manufacturer, Exterior Dot-HP RGB: OsramLED manufacturer, Exterior Dot-HP CW: SeoulMinimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under manufacturer’s test conditions
Photometric DataColor resolution: 16 bits per color (48 bit per pixel)Dot pitch: 72 mm - 500 mm (center-to-center)Viewing angleClear front: 103° x 103° (half-peak)Dome front: 125° x 125° (half-peak)Directional front: 22° x 22° (half-peak)RGB DotsTotal output, calibrated modeClear front: 90 lumens, 36 cdDome front: 62 lumens, 18 cdDirectional front: 72 lumens, 270 cdTotal output, non-calibrated modeClear front: 120 lumens, 48 cdDome front: 80 lumens, 24 cdDirectional front: 96 lumens, 360 cdCool White DotsTotal output, calibrated modeClear front: 160 lumens, 62 cdDome front: 110 lumens, 32 cdDirectional front: 120 lumens, 590 cdTotal output, non-calibrated modeClear front: 210 lumens, 82 cdDome front: 142 lumens, 41 cdDirectional front: 160 lumens, 775 cd
Video ProcessingBrightness controlGamma correction and controlColor temperature controlColor space controlCalibration processingSynchronization
Signal ProtocolP3 (via Martin P3™ PowerPort) or RDM/DMX
ConstructionBase: Cast aluminumColor: Electrostatic powder-coated (custom colors available by special order) (custom colors available on project basis)Protection rating: IP66Impact resistance: IK05Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)RoHS compliant
InstallationOrientation: AnyMounting points: Direct surface mount, optional mounting plate or optional mounting profile
ConnectionsPower and data input: 6-pin custom (BBD) IP66-ratedPower and data thru: 6-pin custom (BBD) IP66-ratedHot-pluggable
ElectricalNominal input voltage: 48 VDC +/- 4%Power supply options: Martin P3™ PowerPort 1500, P3™ PowerPort 1000 IP, Martin™ IP66 PSU or generic 48 VDC PSUTypical total power consumption, calibrated mode: 5 W at full intensity, full whiteTypical total power consumption, uncalibrated mode: 7 W at full intensity, full whiteSurge protection: 4 KV
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 55° C (131° F)Minimum ambient temperature (Ta min.): -20° C (-4° F)Total heat dissipation (calculated, +/- 10%): 20 BTU/hr.
ApprovalsEU safety: EN 60950-1, EN 60950-22EU EMC: EN 55024, EN 55032 (Class A), EN 61000-3-2, EN 61000-3-3US safety: UL 60950-1, UL 60950-22US EMC: FCC Part 15 Class ACanadian safety: CSA C22.2 No. 60950-1, No. 60950-22Canadian EMC: ICES-003 Class AAustralia/NZ: RCM

AccessoriesMagnetic Test Tool, set of 10: P/N 91610139Mounting hardwareFlange Plate for Surface Mounting, aluminum, Exterior Dot-HP:P/N 91606020Mounting Profile Kit incl. dot bracket, screws and lock, Exterior Dot-HP, 57 mm (2.25 in.) : P/N 91606021Mounting Profile, Exterior Dot-HP / Pixline, 320 mm (12.6 in.): P/N 91611620Mounting Profile, Exterior Dot-HP / Pixline, 1280 mm (50.4 in.):P/N 91611610Dot Mounting Bracket for Exterior Dot-HP Mounting Profile: P/N TBAMounting Profile Locks, Exterior Dot-HP / Pixline, set of 10: P/N 91611725CablesPower + Data Input Cable, 4-pin male XLR (for P3 PowerPort 1500) to fem. BBD, 0.25 m (0.9 ft.): P/N 91616046Power + Data Input Cable, 5-pin male XLR + wire tails (for PSU) to female BBD, 0.25 m (0.9 ft.): P/N 91616048Power + Data Input Cable, 5-pin male XLR + male Martin™ IP66 PSU to fem. BBD, 0.25 m (0.9 ft.): P/N 91616050Power + Data Extension Cable, Installation type CMX, BBD-BBD 1 m (3.3 ft.): P/N 91616055Power + Data Extension Cable, Installation type CMX, BBD-BBD, 2.5 m (8.2 ft.): P/N 91616056Power + Data Extension Cable, Installation type CMX, BBD-BBD, 5 m (16.4 ft.): P/N 91616057Power + Data Extension Cable, Installation type CMX, BBD-BBD, 10 m (32.9 ft.): P/N 91616058Power + Data Extension Cable, Installation type CMX, BBD-BBD, 25 m (82.1 ft.): P/N 91616059Power + Data Extension Cable, Installation type CMX, without connectors, 100 m (328.1 ft.): P/N 91616060DMX Leadout Adapter, male BBD to 5-pin female XLR, 0.25 m (0.9 ft.): P/N 91616051Power+Data Adapter XLR5+XLR4-BBD 0.25 m (0.9 ft.): P/N 91616049Power+Data Adapter BBD-XLR4 0.25 m (0.9 ft.): P/N 91616047ConnectorsPower + Data Cable Connector, BBD, male: P/N 91611750Power + Data Cable Connector, BBD, female: P/N 91611751Blanking caps for unused female BBD connectors, set of 10: P/N 91616052
Related ItemsMartin P3™ PowerPort 1500: P/N 90721040Martin P3™ PowerPort 1000 IP Installation: P/N 90721080Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330Martin P3-050™ System Controller: P/N 90721090Martin P3-150™ System Controller: P/N 90721015Martin P3-300™ System Controller: P/N 90721060Martin P3-PC™ System Controller: P/N 90721030
Ordering InformationExterior Dot-HP RGB, Aluminum, Clear Front: P/N 90357683Exterior Dot-HP RGB, Aluminum, Dome Front: P/N 90357685Exterior Dot-HP RGB, Aluminum, Directional Front (TIR lens): P/N 90357686Exterior Dot-HP CW, Aluminum, Clear Front: P/N 90357688Exterior Dot-HP CW, Aluminum, Dome Front: P/N 90357687Exterior Dot-HP CW, Aluminum, Directional Front (TIR lens): P/N 90357689*Dots in the Exterior Dot-HP range are supplied in cardboard boxes containing multiples of 9 dots. Remaining dots (and orders that consist of less than 9 dots total) are supplied in individual packs.
