FlexDOT S1 (discontinued)

FlexDOT S1
Larger Images

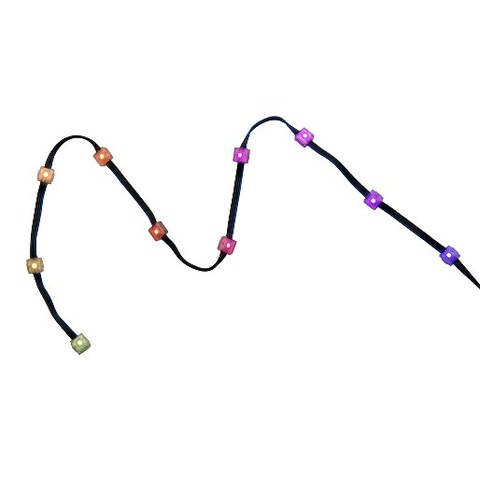

FlexDOT™ is a lightweight string of individually controllable, super bright (RGB) LEDs useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort. Fully customizable and DMX512 controllable, it is a perfect solution for integrating LED video technology in stage sets, retail environments or just about anywhere – outdoors too!


  • Can assume any form for creative freedom
  • Individually controllable pixels
  • Independent control of color, special effects and animation
  • Very bright, 2.5 cd per pixel
  • Various pixel spacings available
  • Max 100 pixels per string
  • 40 m max string length
  • DMX/Artnet/P3 controllable
  • IP66 for use indoors or out
  • Efficient and long-lasting
  • Perfect for stage sets, clubs, retail, outdoor environments


Physical Pixel size: 15 mm x 15 mm x 9 mm Maximum number of pixels per string: 100 Maximum string length: 40 m including feeder cable
Control and Programming Control options: DMX, Artnet via addtional hardware devices DMX channels: 3 per independently controlled pixel Control resolution: 8-bit control of each color Protocol: USITT DMX512/1990
Photometric Data Light source: RGB LED Luminous intensity: 2.5 cd Viewing angle: 100° x 100°
Construction LED units: Clear polycarbonate, clear silicone filled Protection rating: IP66 RoHS compliant:
Installation Orientation: Any
Electrical Operating voltage: 12 V DC
Typical Power and Current Power consumption per pixel: 0.72 W at full white
Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 50° C Minimum ambient temperature (Ta min.): -20° C
Approvals US safety: UL Class II
Related Items Maxedia PRO System with flightcase, I/O box and keyboard tray, EU/US: 90732520 Maxedia Compact System, EU/US: 90732540
Ordering Information FlexDot™ string, 100mm pitch, 100 LED units: 90356000 FlexDot™ string, 150mm pitch, 50 LED units: 90356004 FlexDot™ string, 150mm pitch, 100 LED units: 90356005 FlexDot™ string, 200mm pitch, 100 LED units: 90356010 FlexDot™ string, 300mm pitch, 100 LED units: 90356015 FlexNode™: 90356020 FlexBridge™: 90356030 FlexTool™: 90356040 FlexNode™ DMX: 90356050 FlexFuse™: 90356060 FlexDome™ diffuser with mounting unit: 91611319 FlexPower™: 91611320


  Version Language Size Uploaded
file type icon FlexDOT System layout
en version A, updated: May 2018
en  27.5 KB May 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
