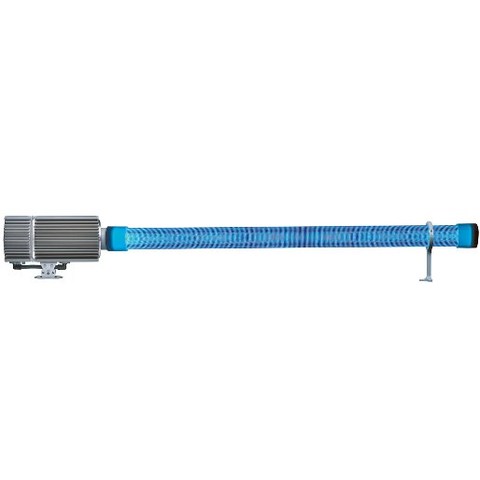

The 3M Martin Architectural Light Pipe Systems are modular lighting elements capable of transporting and controlling the distribution of light. When coupled with Martin automated colour-changing fixtures, the light pipes become an intense linear source of light.
Features
- Easy installation
- Highly efficient optical design
- Low glare lighting – increased visual comfort
- Modular design
- Remote location of light source, heat and power
- Uniform illumination over various lengths
Specifications
Physical
Lengths - 90° and 180° systems:
2565 mm:
5004 mm:
7442 mm:
9881 mm:
12319 mm:
14757 mm:
17196 mm:
19634 mm:
Lengths - 360° system:
2565 mm:
5004 mm:
7442 mm:
9881 mm:
Diameter: 254 mm, 152 mm, 102 mm or 51 mm
Weight: 2.8 kg/meter
Construction
Outer pipe: UV stabilized polycarbonate
Mounting bracket: Aluminum
Expansion coupling: Polycarbonate & silicone
Exterior 600 adapter: Aluminum
Protection rating: IP65
Installation
Orientation: Any
Mounting device: One mounting bracket per pipe module
Minimum distance to illuminated surfaces: 0.5 m
Minimum distance to combustible materials: 0.5 m
Thermal
Maximum ambient temperature (Ta max.): 50° C
Minimum ambient temperature (Ta min.): -40° C
Included Items
Installation kit: Couplings, mounting brackets, Exterior 600 adapter & end cap:
Related Items
Possible light sources: Exterior 200, Exterior 600 or Alien 02:
Ordering Information
Custom options available: contact your Martin Architectural dealer for details:
