M Series Top Transition Module (discontinued)

Larger Images

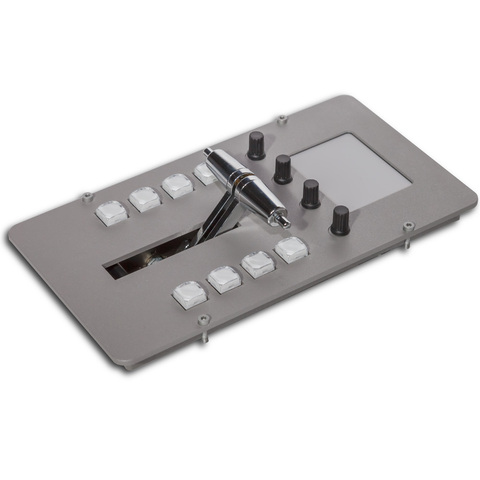

The Transition Module has a high-quality split T-bar mechanism with interlock for precision control of parameters and cue transitions. The additional RGB buttons and fast dial encoders are customizable to a variety of console functions, increasing speed of operation and programming.

  • Split T-Bar with interlock
  • 8 RGB push buttons
  • 4 Rotary Encoders with Push

Features

  • Split T-Bar with interlock
  • 8 RGB push buttons
  • 3.5” touch display
  • 4 Rotary Encoders with Push

Specifications

Physical Width: 144 mm (5.7 in.) Height: 275 mm (10.9 in.) Depth: 61 mm (2.4 in.) Weight: 1.1 kg (2.5 lbs.)
Control/User Interface Split T-bar with interlock 8 x RGB push buttons 4 x rotary encoders with push 3.5" touch display
Connections M6™ link: RJ-45 socket DC power input: 8-pin Molex
Electrical DC power: 12 V
Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1
CE
Ordering Information M-Series™ Top Transition Module: P/N 91613107
