M14T (discontinued)

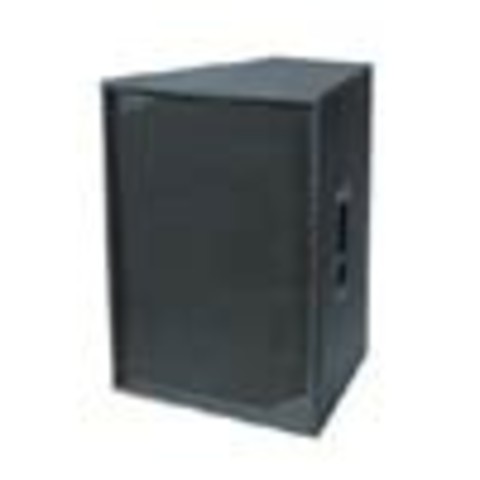

M14T
Larger Images
Designed as a dedicated top-box, M14T is an ultra compact, loud and light weight speaker designed for high quality live sound reinforcement or as front-fill or delay for SlingShot FOH system. It features a high output 15” mid-bass unit with excellent output and clarity in the midrange as well as a 2” compression driver with a 3” diaphragm. The mid-bass unit has a 3” voice coil with windings on the inside and outside of the voice coil former. As a result the unit has a very balanced mass with excellent clarity and stability when driven hard. The compression driver features a titanium diaphragm with a polymer fiber surround on a Kapton former, which enables the frequency response to extend to 20 kHz with very low distortion. Power compression is kept low by the use of a flat wire copper voice coil. Weighing in at only 31 kg, the M14T is an easy one man lift designed to be used with the M181T or M218T subwoofer.

Features

  • "SlingShot" flying system
  • 15" mid-bass-units with 3" voice coil
  • 2" compression driver
  • Customized CD horn with 55x45 degree dispersion
  • Highly durable SafeCoat coating
  • Modular crossover
  • Speakon® NL4 with link
  • Switchable between Passive and Active mode

Specifications

Downloads

  Version Language Size Uploaded
Specifications
file type icon SP_M14T_EN_A
en version A, updated: May 2018
en  78.9 KB May 2018
file type icon SP_M14T_EN_B
en version B, updated: May 2018
en  892 KB May 2018
Manuals
file type icon M12T - User manual
en version D, updated: Oct 2020
en  154 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
