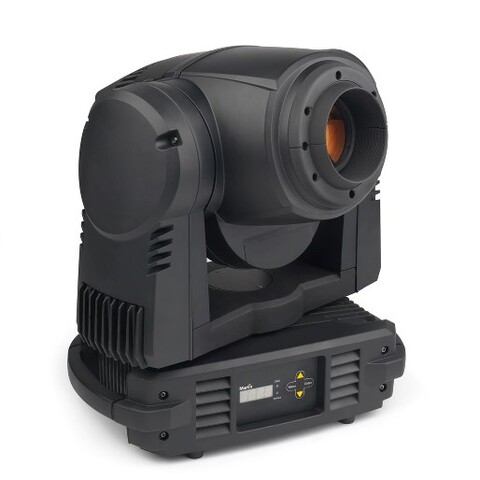

MAC 350 Entour (discontinued)

Mac 350 entour large
Larger Images

The MAC 350 Entour is a cutting edge LED profile fixture with no peers. It surpasses what has previously been possible in terms of brightness, efficiency and compactness in a hard edge LED fixture. Featuring proprietary LED technology, it is the market’s first real alternative to traditional HID-based profile fixtures.

  • Highly efficient pure white LED source
  • Color wheel with 8 interchangeable dichroic colors - Split color effects and continuous rotation
  • Enhanced color spectrum and light quality maintenance


  • Highly efficient pure white LED source
  • Color wheel with 8 interchangeable dichroic colors - Split color effects and continuous rotation
  • Enhanced color spectrum and light quality maintenance
  • Motorized iris
  • Built-in macro effects
  • 8000 lm output - Sufficient to replace 575 watt HID fixtures
  • Full electronic dimmer and strobe
  • Crisp and clean projection with no color artifacts
  • 25° field angle (1/10 Peak)
  • Motorized focus
  • Greater reliability, less maintenance
  • Quiet for noise sensitive applications
  • DMX, stand-alone, synchronized (master/slave)
  • Compact, low weight design
  • 6 rotating and indexable gobos
  • Increased energy efficiency
  • No lamp replacements necessary


Tech Specs

Physical Length: 377 mm (14.9 in.) including handles Width (Base): 220 mm (8.7 in.) Height: 454 mm (17.9 in.), head horizontal Height: 471 mm (18.6 in.), head straght up Weight: 16.6 kg (36.6 lbs.)
Dynamic Effects Shutter effect: Electronic, with regular and random pulse, burst and strobe effects Electronic dimming: 0 - 100%, choice of four dimming curves Color wheel: 8 interchangeable dichroic filters + open, full and split colors, music trig, continuous rotation, random color Rotating gobo wheel: 6 interchangeable gobos + open, indexing, continuous gobo rotation & scrolling, shake Iris: Motorized, with pulse and random effects Focus: 2 m (78.8 in.) to infinity Pan: 630° Tilt: 300° Adjustable pan/tilt and effects speed:
Control and Programming Control options: DMX, stand-alone, synchronized (master/slave) DMX channels: 14/17 Setting and addressing: Control panel with LED display Macro programs: 10 pan/tilt and 10 effects macros, all with staggered start/chase feature Macro selection: DMX or onboard control panel Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Stand-alone memory: 100 scenes Stand-alone and master/slave programming: Control panel with LED display Transceiver: RS-485 Fixture software update: Serial upload via DMX link 16-bit control: Rotating gobo indexing, pan & tilt
Optics Light source: 7 x Luminus CBT-90 (50 W) LEDs Minimum LED lifetime: 60 000 hours (to >70% luminous output)* LED refresh rate: 610 Hz *Figure obtained under manufacturer´s test conditions:
Photometric Data Color temperature: 6500 K CRI (color rendering index): 70 Efficiency: 55%
Construction Color: Black Housing: UV-resistant fiber-reinforced composite and die-cast aluminum Protection rating: IP20
Gobos Outside diameter: 27.9 mm +0/- 0.3 mm (1.1 in. +/- 0.01 in.) Maximum image diameter: 23 mm (0.9 in.) Maximum thickness: 1.8 mm (0.07 in.) Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coating Recommended metal: Aluminum (steel for temporary use only)
Installation Mounting points: 2 pairs of 1/4-turn locks Orientation: Any Minimum distance to combustible materials: 200 mm Minimum distance to illuminated surfaces: 0.5 m
Connections AC power input: Neutrik PowerCon DMX data in/out: 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Main fuses: 10 AT (slow blow) x 2 Standby power: Max. 49 W (idle mode, dimmed to zero)
Typical Power and Current 100 V, 50 Hz: 418 W, 4.2 A, PF 0.996 100 V, 60 Hz: 417 W, 4.2 A, PF 0.996 110 V, 60 Hz: 439 W, 4.0 A, PF 0.996 120 V, 60 Hz: 463 W, 3.9 A, PF 0.996 208 V, 60 Hz: 405 W, 2.0 A, PF 0.971 230 V, 50 Hz: 443 W, 2.0 A, PF 0.971 240 V, 50 Hz: 452 W, 2.0 A, PF 0.962 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, Ta=40° C: 70° C (158° F) Maximum surface temperature after 5 minutes of operation, Ta=40° C: 70° C (158° F) Total heat dissipation (calculated, +/- 10%): 1580 BTU/hr. Total heat dissipation at standby (calculated, +/- 10%): 170 BTU/hr.
Approvals EU safety: EN 60598-2-17, EN 62471 EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CAN/CSA E60598-1, CAN/CSA E598-2-17 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
CE ETL C US Intertek C-Tick
Included Items Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 Two 10 AT main fuses (installed): P/N 05021029 User manual:
Accessories Power cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m: P/N 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804 3-pin male XLR to 5-pin female XLR adaptor: P/N 11820004 5-pin male XLR to 3-pin female XLR adaptor: P/N 11820005 G-clamp: P/N 91602003 Quick trigger clamp: P/N 91602007 T-shaped omega bracket with quarter-turn fasteners: P/N 91602008 Omega bracket: P/N 91602001 Safety cable, safe working load 50 kg: P/N 91604003 Four-unit flightcase for 4 x MAC 350 Entour™: P/N 91510160 Half-coupler (tube) clamp: P/N 91602005 A wide range of filters and gobos for this product is available from Martin™:
Related Items Martin USB Duo™ DMX Interface Box: P/N 90703010 Martin RDM 5.5 Splitter™: P/N 90758150
Ordering Information MAC 350 Entour™, black, in cardboard box: P/N 90231400
