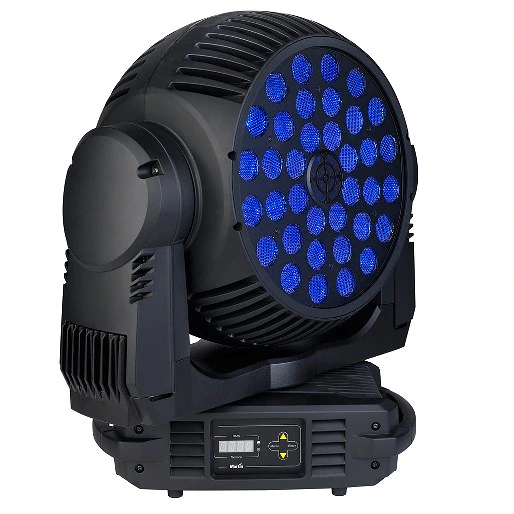

MAC 401 Dual RGB Zoom (discontinued)

Larger Images

The MAC 401 Dual RGB Zoom is a creatively fresh and versatile LED moving head wash light with an innovative double-sided design that gives it flexible dual functionality, for example as a double wash light or beam reflective mirror. The MAC 401 Dual’s advanced wash characteristics combine with a host of other useful features like fast zoom and individual LED segment control to add a new and inventive element to touring and rental applications, TV shows, corporate events, night-time venues and leisure environments.

Features

  • Very bright - over 6600 lumens of output
  • 36 lenses in four individually controllable groups
  • Built-in macro effects
  • Broad beam look with speedy zoom
  • Low noise operation
  • Accessory gel frame holder
  • RGB and Hue/Saturation control modes
  • Double washlight, beam reflective mirror, upcoming options
  • Extremely energy efficient

Specifications

Physical Length: 221 mm Width: 505 mm Height: 527 mm Weight: 21 kg incl. 2 head modules, excl. brackets
Dynamic Effects Color mixing: RGB or HSV Red or hue: 0 - 100% Green or saturation: 0 - 100% Blue or value: 0 - 100% Color temperature control: Variable 10 000 - 2000 K Electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color Pre-programmed effects: Two superimposable chase/pulse/flip/flicker/strobe/static effects with variable intensity, x-fading and 'pixel wheel' rotation speed Strobe effect: Electronic, with pulse and random effects Electronic dimming: 0 - 100%, four dimming curve options Zoom: 16° in Hypermode, 20° - 50° Pan: 630° with two speed settings Tilt: 300° with two speed settings
Control and Programming Control: DMX Color control modes: RGB + CTC (raw and calibrated), HSV DMX channels: 13/17/21/25/33 depending on control mode & pixel grouping Setting and addressing: Control panel with LED display Protocol: USITT DMX512/1990 Transceiver: RS-485
Optics Light source: 36 Osram multi-color LED high power emitters LED refresh rate: 887 Hz
Construction Color: Black Housing: High-impact flame-retardant thermoplastic and die-cast aluminum Protection rating: IP20
Installation Mounting points: 2 pairs of 1/4-turn locks Orientation: Any Minimum distance to combustible materials: 200 mm Minimum distance to illuminated surfaces: 200 mm Minimum distance to persons and objects in beam zone: 1 m
Connections AC power input: Neutrik PowerCon DMX data in/out: 5-pin locking XLR, RJ-45
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuses: 10 AT (slow blow) x 2
Typical Power and Current Only RGB Zoom module installed (standard configuration): 100 V, 50 Hz: 367 W, 3.7 A, PF 0.995 100 V, 60 Hz: 367 W, 3.7 A, PF 0.995 110 V, 60 Hz: 364 W, 3.3 A, PF 0.994 120 V, 60 Hz: 367 W, 3.1 A, PF 0.993 208 V, 60 Hz: 360 W, 1.8 A, PF 0.967 230 V, 50 Hz: 360 W, 1.7 A, PF 0.973 240 V, 50 Hz: 360 W, 1.6 A, PF 0.969 RGB Zoom and optional CT Zoom modules installed: 100 V, 50 Hz: 770 W, 7.8 A, PF 0.996 100 V, 60 Hz: 765 W, 7.8 A, PF 0.997 110 V, 60 Hz: 755 W, 7.0 A, PF 0.995 120 V, 60 Hz: 749 W, 6.3 A, PF 0.993 208 V, 60 Hz: 732 W, 3.6 A, PF 0.980 230 V, 50 Hz: 731 W, 3.3 A, PF 0.965 240 V, 50 Hz: 730 W, 3.2 A, PF 0.955 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.: PF = power factor:
Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F) Total heat dissipation (calculated, +/- 10%), one module installed: 1250 BTU/hr. Total heat dissipation (calculated, +/- 10%), two modules installed: 2630 BTU/hr.
Approvals EU safety: EN 60598-2-17 EU EMC: EN 61000-6-1, EN 61000-6-3 US safety: UL 1573 Canadian safety: CAN/CSA E60598-1, CAN/CSA E598-2-17
CE ETL C US Intertek
Included Items RGB Zoom Module (installed): 91611325 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 User manual: 35000229 Neutrik PowerCon NAC3FCA male input connector: 05342804 Two 10 AT main fuses (installed): 05021029
Accessories MAC 401 Dual™ Color Frame Kit: 91610102 MAC 401 Dual™ RGB Zoom Module: 91611325 MAC 401 Dual™ CT Zoom Module: 91611349 Mirror Films for MAC 401 Rear of Head, set of 10: 91611352 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Safety cable, safe working load 50 kg: 91604003 Double flightcase for MAC 401 Dual™: 91510150
Related Items Martin USB Duo™ DMX Interface Box: 90703010
Spare Parts 10 AT main fuse: 05021029 Replacement head air filter: 62407156
Ordering Information MAC 401 Dual™ RGB Zoom, in cardboard box: 90231200

Downloads

  Version Language Size Uploaded
Manuals
Manuel d´utilisation
fr version E, updated: May 18, 2018
fr  1.4 MB May 18, 2018
Manual de instrucciones
es version B, updated: May 18, 2018
es  1.75 MB May 18, 2018
User manual
en version E, updated: May 18, 2018
en  1.04 MB May 18, 2018
Bedienungsanleitung
de version C, updated: May 18, 2018
de  999 KB May 18, 2018
Illustrations
MAC 401 Dual Dimensions
en version A, updated: May 11, 2018
en  281 KB May 11, 2018
MAC 401 Dual 2D symbol
en version A, updated: May 11, 2018
en  2.03 MB May 11, 2018
MAC 401 (3D DWG)
en version A, updated: May 11, 2018
en  4.5 MB May 11, 2018
Compliances
EU Declaration of Conformity
en version A, updated: May 18, 2018
en  279 KB May 18, 2018
MAC 350 / 401 - ETL Authorization to Mark
en version E, updated: May 11, 2018
en  449 KB May 11, 2018
Software
MAC 401 Dual RGB Zoom Main CPU
version 1.4.0, updated: May 19, 2018
1.4.0    180 KB May 19, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Support/FAQs
