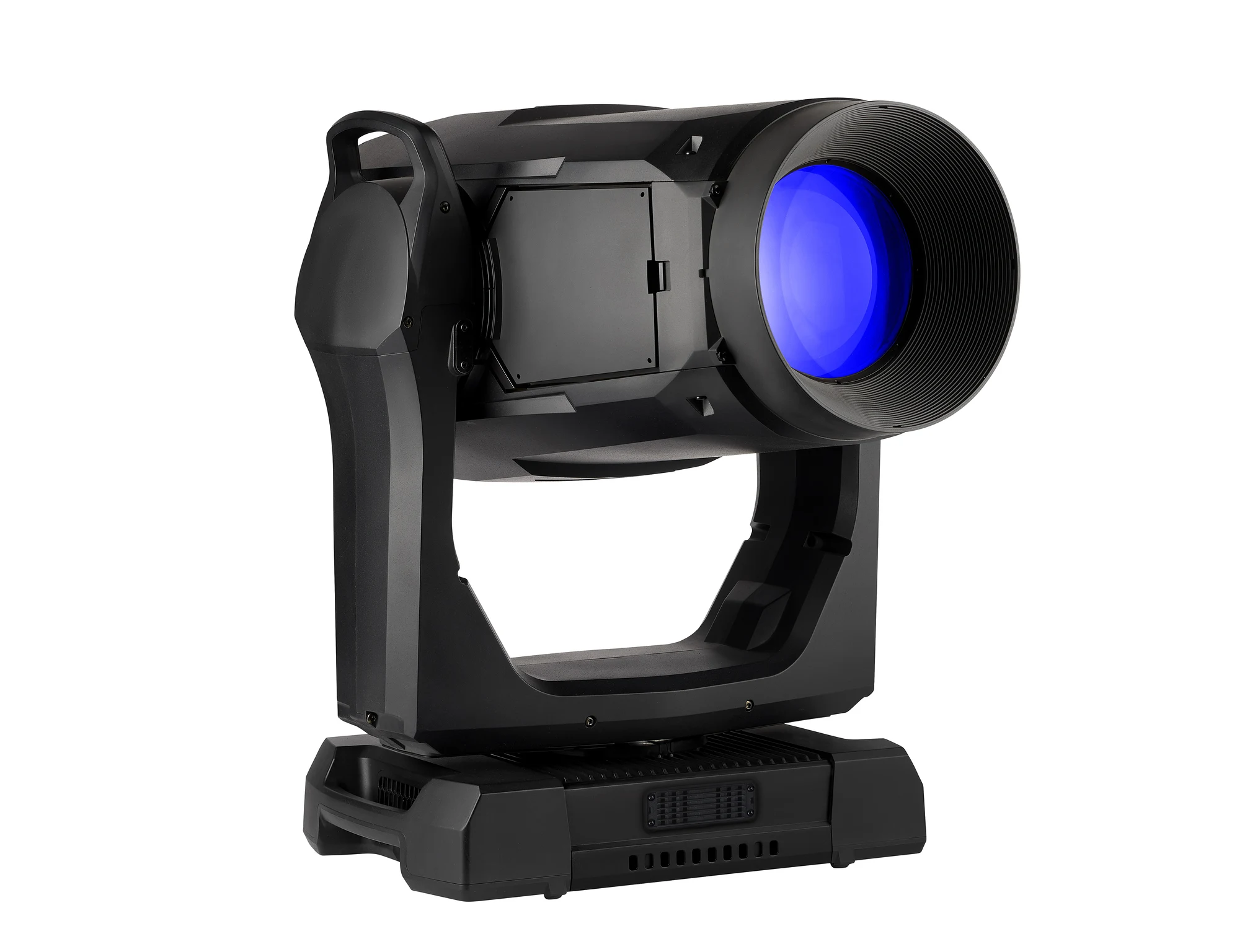

Martin MAC Viper XIP

Larger Images

The Martin MAC Viper XIP next-generation, Viper-class moving head combines legendary Viper performance, Martin XIP smart weatherproofing technology, and the most robust feature set Martin has ever developed. Drawing on best-in-class features that defined the iconic Viper lineup, including Viper Profile, Performance, Wash and Wash DX, MAC Viper XIP builds on its heritage, setting a new standard for all-in-one performance, innovation and reliability.

The combination of MAC Viper XIP’s powerful lumen output and innovative patent-pending XIP water and dust ingress protection make it not only ideal for a wide range of temporary, year-round outdoor applications*, but also ensures exceptionally low-noise levels for indoor use, similar to the whisper-silent Martin MAC Encore. Featuring Martin Professional’s proprietary tailor-made light engine, the MAC Viper XIP unleashes an impressive 5° narrow, high-definition, and high-contrast beam, ensuring unprecedented lumen maintenance over the zoom range.

MAC Viper XIP’s 28,000 lumens outperforms much larger products on the market due to its consistent, unwavering output. Its superior 5800 Kelvin color temperature ensures optimal illumination for artists and scenery, with the white point precisely on the black body curve without any green or magenta shift to ensure a crisp white point that naturally enhances illuminated objects.

High-performance engineering catapults Martin’s latest moving head to the top of its class with precision motor control to deliver unmatched pan & tilt speeds and nimble response times - key for followspot systems and optimal performance. MAC Viper XIP’s color mixing, zoom speeds, and ratio between high-quality output, low-noise operation, and low-weight and size make it a truly versatile workhorse. It also features high-resolution, low-level dimming, and incorporates light recycling with gobos, enabling 25% additional output when inserting gobos for increased performance and efficiency. The MAC Viper XIP is not only advancing moving head technology, its propelling fixture innovation.

Adding to its feature-rich offering, MAC Viper XIP leverages innovative onboard NFC technology to empower quick and streamlined setup via the forthcoming, dedicated Martin app. It also ensures simplified connectivity among the most popular control protocols, including DMX, Wireless DMX via plug in module, Art-Net, sACN and Martin P3 Control (with fail-safe bypass).

The newly designed optical system elevates the customer experience to another level with a high-resolution projection system that offers unmatched gobo projection sharpness. Uniquely high-contrast levels paired with brilliant and crisp lens designs ensure incomparable razor-sharp mid-air effects.

With its uncompromising package of high-output optical performance, XIP smart weatherproofing technology, premium feature-set, low-noise, smaller footprint, and ease of serviceability; MAC Viper XIP dominates the mid- to large-moving head category. From concert stages to TV studios and EDM festivals to opera houses, the world’s top designers, specifiers, and rental companies can invest in the confidence and return on investment that only the MAC Viper lineup can deliver. And this Viper delivers indoors or out, all year long, in any kind of weather. MAC Viper XIP – the LEGEND strikes again.

Learn More About XIP Technology

*The MAC Viper XIP is designed for temporary outdoor installation only. Do not use the fixture for permanent outdoor lighting.

A SPOT-ON WHITE POINT

Embodying a quality of light that is more pleasing to the eye, the MAC Viper XIP light engine’s native 5,800K color temperature ensures a white point precisely on the black body curve, with no green or magenta shifts, only crisp, vibrant white light.
OUTSTANDING OPTICS

MAC Viper XIP's optical system features 14 precision-coated lenses and incredible center-to-edge clarity. Uniquely high-contrast levels produce razor-sharp mid-air effects & the shutter system’s enhanced depth of field ensures well-defined gobo framing.
SUPERIOR, STEADY-STATE OUTPUT

Martin's tailor-made light engine and XIP weatherproofing allow MAC Viper XIP to deliver a consistent 28,000 lumens. Smart, efficient cooling maintains full output with colors, gobos, effects and gobo light recycling that boosts output by 25%.
XIP UNIQUE WEATHERPROOFING TECHNOLOGY FOR CROSS-EVENT UTILIZATION

Martin's patent-pending XIP water & dust ingress protection is ideal for temporary, year-round outdoor use overcoming size, noise, output, and weight penalties, typical of IP65 fixtures. Its low-noise and low-weight are also perfect for indoor events.
LOW-NOISE, HIGH-IMPACT

MAC Viper XIP combines Viper-class output and whisper-quiet noise, similar to Martin MAC Encore. Smart heat management maintains low LED temperatures for long life & output, making it ideal for theater, broadcast & other noise-sensitive applications.
CREATIVE FREEDOM, EXCEPTIONAL PERFORMANCE

As Martin's most feature-rich product ever made, MAC Viper XIP has been engineered to elevate the most demanding shows and events. Every feature has been optimized to give designers maximum creative freedom while ensuring uncompromising performance.
NFC AND CONNECTIVITY

MAC Viper XIP NFC technology enables smartphone control via the Martin app. DMX addressing, personality settings and other functions are easily accessible. And with our wireless DMX module connectivity slot, it’s future-ready for control.

A SPOT-ON WHITE POINT

Embodying a quality of light that is more pleasing to the eye, the MAC Viper XIP light engine’s native 5,800K color temperature ensures a white point precisely on the black body curve, with no green or magenta shifts, only crisp, vibrant white light.

OUTSTANDING OPTICS

MAC Viper XIP's optical system features 14 precision-coated lenses and incredible center-to-edge clarity. Uniquely high-contrast levels produce razor-sharp mid-air effects & the shutter system’s enhanced depth of field ensures well-defined gobo framing.

SUPERIOR, STEADY-STATE OUTPUT

Martin's tailor-made light engine and XIP weatherproofing allow MAC Viper XIP to deliver a consistent 28,000 lumens. Smart, efficient cooling maintains full output with colors, gobos, effects and gobo light recycling that boosts output by 25%.

XIP UNIQUE WEATHERPROOFING TECHNOLOGY FOR CROSS-EVENT UTILIZATION

Martin's patent-pending XIP water & dust ingress protection is ideal for temporary, year-round outdoor use overcoming size, noise, output, and weight penalties, typical of IP65 fixtures. Its low-noise and low-weight are also perfect for indoor events.

LOW-NOISE, HIGH-IMPACT

MAC Viper XIP combines Viper-class output and whisper-quiet noise, similar to Martin MAC Encore. Smart heat management maintains low LED temperatures for long life & output, making it ideal for theater, broadcast & other noise-sensitive applications.

CREATIVE FREEDOM, EXCEPTIONAL PERFORMANCE

As Martin's most feature-rich product ever made, MAC Viper XIP has been engineered to elevate the most demanding shows and events. Every feature has been optimized to give designers maximum creative freedom while ensuring uncompromising performance.

NFC AND CONNECTIVITY

MAC Viper XIP NFC technology enables smartphone control via the Martin app. DMX addressing, personality settings and other functions are easily accessible. And with our wireless DMX module connectivity slot, it’s future-ready for control.

Videos

Features

LIGHT SOURCE

760 W proprietary LED light engine
55 x 20 W white LEDs
Minimum LED lifetime: >50,000 hours (see specs for further details)

PHOTOMETRIC DATA

Light Engine Luminous Output: 56,000 lumens
Fixture Luminous Output: 28,000 lumens
Peak Luminous Intensity: 2.4 Mcd
CCT: 5800 K (+/- 250 K)

OPTICS

150 mm front Lens
1:9 zoom range (5.7° - 54° field angle)
High resolution projection system

DYNAMIC EFFECTS

0 - 100% continuous dimming and strobe effects
Choice of four dimming curves
CMY color mixing
Color temperature control (5,800 - 2,850 K)
Color wheel with 5 x dichroic filters, including Spectral Enhancement Filter
Rotating gobo wheel 1 includes 7 interchangeable gobos + open
Rotating gobo wheel 2 includes 7 interchangeable gobos + open
Gobo animation wheel, indexing, continuous rotation with variable angle
2 x Frost (fade in), Light & Heavy
4-facet prism
Iris
Zoom
Focus with auto tracking
Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
Pan: 540°
Tilt: 268°
P3 videomapping of fixture color and/or intensity (6 segments)
Pre-programmed effects: Two ranges of pre-programmed FX
Green Magenta Shift Control
Virtual CTC Control (2,000 – 12,850K)

COOLING AND NOISE

Low noise cooling system
User-selectable output vs. sound level control

CONSTRUCTION

Height (head straight up): 758 mm (29.8 in.)
Height (maximum): 776 mm (30.6 in.)
Weight: 37.0 kg (81.1 lbs.)

CONTROL

DMX-512 in/out
Ethercon in/out for P3, Art-Net, sACN
Built in Ethernet switch with fail-safe bypass

Common Applications

MAC Viper XIP is a versatile solution for a wide range of mid- to large moving head applications, indoors or out, all year long, in any kind of weather and noise sensitive applications. From concert stages to TV studios and EDM festivals to opera houses, the world’s top designers, specifiers, and rental companies can invest in the confidence and return on investment that MAC Viper XIP delivers.

Specifications

Physical
Width (across yoke): 479 mm (18.9 in.)
Width (base): 429 mm (16.9 in.)
Height (head straight up): 758 mm (29.8 in.)
Height (maximum): 776 mm (30.6 in.)
Length (head): 595 mm (23.4 in.)
Depth (base): 285 mm (11.2 in.)
Minimum center-to-center distance in side-by-side installation: 720 mm (28 in.)
Weight: 37.0 kg (81.5 lbs.)

Dynamic Effects
Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Dimming options: Choice of four dimming curves
Color Mixing: CMY, independently variable 0 - 100%
Physical Color Temperature Control: Variable 5,800 – 2,850 K
Virtual Color Temperature Control: Variable 2,000 – 12,850 K
Virtual Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Color Wheel: 5 dichroic filters (incl. Spectral Enhancement Filter) + open, indexing, shake, continuous wheel rotation & random color
Rotating Gobo Wheel 1: 7 interchangeable gobos + open, indexing, shake, continuous rotation, continuous wheel rotation & random gobo
Rotating Gobo Wheel 2: 7 interchangeable gobos + open, indexing, shake, continuous rotation, continuous wheel rotation & random gobo
Gobo Color Temperature Correction: Automatic
Animation Wheel: Interchangeable animation wheel, indexing, shake, bounce, continuous rotation & variable wheel insertion angle
Light Frost: Variable 0 - 100%
Heavy Frost: Variable 0 - 100%
Prism: 4 Facet, indexing, shake & continuous rotation
Iris: Variable 0 - 100%, opening and closing pulse effects
Zoom: Motorized with 1:9 zoom ratio
Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity, including focus tracking
Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
Pan: Motorized 540°
Tilt: Motorized 268°
P3 Mix: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
PixelMapping: Individual control of each of the 6 LED Segments
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
LED Frequency control: Variable LED PWM control

Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3 (additional protocols, incl. wireless, available via Universal Connect Module)
Protocol Detection: Automatic
DMX Modes: Basic, Extended & Ludicrous
DMX Channels: 54, 64 & 70
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Dimming, Color Mixing, CTO, Gobo Indexing and Rotation, Animation Wheel Indexing and Rotation, Prism Indexing and Rotation, Iris, Zoom, Focus, Framing Insertion and Angle, Framing Rotation, Pan and Tilt
Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2018
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

Optics
Front Lens Diameter: 150 mm (5.9 in.)
Zoom Range: 1:9
Full Zoom Range at Tenth Peak (Field Angle): 5.7° - 54.0°
Light Source: 55 x 22 W White LED in a custom Martin engine
Max. Total LED Engine Power: 760 W
Minimum LED lifetime: > 50.000 hours (to > 80% luminous output) / > 20.000 hours (to > 90% luminous output)*
*Figure obtained under manufacturer's test conditions

Photometric Data
Light Engine Luminous Output: 56,000 lumens
Without Spectral Enhancement Filter
Fixture Luminous Output Wide: 28,000 lumens
Fixture Luminous Output Narrow: 24,700 lumens
Peak Luminous Intensity Narrow: 2,500,000 cd
CCT: 5,800 K (+/- 250 K)
CRI (Color Rendering Index): 68 (+/- 3)
CQS (Color Quality Scale): 65 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 66 (+/- 3)
TM-30 Rg (IES TM-30-15 Gamut Index): 94 (+/- 3)
TLCI (Television Lighting Consistency Index): 44 (+/- 3)
With Spectral Enhancement Filter
Fixture Luminous Output Wide: 18,700 lumens
Fixture Luminous Output Narrow: 16,600 lumens
Peak Luminous Intensity Narrow: 1,700,000 cd
CCT: 5,800 K (+/- 250 K)
CRI (Color Rendering Index): 90 (+/- 3)
CQS (Color Quality Scale): 83 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 78 (+/- 3)
TM-30 Rg (IES TM-30-15 Gamut Index): 107 (+/- 3)
TLCI (Television Lighting Consistency Index): 68 (+/- 3)
LED Refresh Rate: 2,400 Hz with fine adjustment (+/- 2%) and Hybrid mode (DMX controllable)
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 5800 K white

Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP54

Gobos Maximum image diameter: 22 mm (0.866 in.) External diameter: 27.1 mm +0 / -0.2 mm (1.067 in. +/ - in.) Maximum gobo thickness: 1.1 mm (0.04 in.) Coating: Heavy matted aluminum Material: Borofloat 33

Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Indoor or Temporary Outdoor use, must be fastened to surface or structure Orientation: Any, except with display facing upwards in outdoor application Minimum distance to combustible materials: 0.2 m (7.9 in.) Minimum distance to illuminated surfaces: 3.25 m (10.7 ft.)

Connections
AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
Firmware from flash memory: USB 2.0 type C port
Accessory Plug-In: Universal Connect Module Slot

Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
Typical earth-leakage current: 0.7 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
Max current draw: 11.0 A @ 100 V / 120 V , 5.2 A @ 208 V , 4.6 A @ 230 V / 240 V
Typical current draw: 9.5 A @ 100 V , 7.8 A @ 120 V , 4.4 A @ 208 V , 4.0 A @ 230 V , 3.9 A @ 240 V *
Power Consumption
Maximum: 1040 W
Typical: 945 W *
Idle: 68 W *
Hibernation: 6 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal Cooling: Forced air (temperature regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): -10° C (14° F) – Warm up condition may apply Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F) Total heat dissipation (calculated, +/- 10%): 3550 BTU/hr.

Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.7 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 31.9 dB(A)

Warranty Fixture: 2 years Light Engine: 5 years

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Packaging: FSC Certified cardboard outer packaging & Recycled EPS inner packaging Efficacy (max output): 29.5 lm/w LWR*: 760 lm/kg (345 lm/lbs.)
* LWR = Lumen-to-Weight Ratio

Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1),EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035;EN 61547; EN 61000-3-3 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA Thailand: TISI 1955-2551 Korea: KS C 9832, KS C 9835

Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Multi-Language Safety and Installation Manual

Related Items
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store

Accessories
Optical
MAC Viper XIP / MAC Encore Two Hotspot Filter (Gobo Replacement): P/N MAR-91614065HU

Transport and Storage
Flightcase for 1 x MAC Viper XIP / MAC Encore Two: P/N MAR-91515060
Flightcase for 2 x MAC Viper XIP / MAC Encore Two: P/N MAR-91515061
MAC Viper Flightcase XIP Upgrade Kit: P/N MAR-91515062
Additional SiP Foam Flightcase Insert for MAC Viper XIP: P/N MAR-91611863HU
Additional SiP Foam Flightcase Insert for MAC Viper XIP / MAC Encore Two: MAR-91611866HU

Consumables
Air filter, MAC Quantum / MAC Ultra / MAC Viper XIP / MAC Encore Two, set of 12: P/N 50400765
CR123A 3-volt lithium battery: P/N 05801011

Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

Installation Hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Verified Third-Party Accessories
Beam Control
MAC Viper XIP / MAC Encore Two Concentric Ring: P/N City Theatrical 2816
MAC Viper XIP / MAC Encore Two Hexcel Louver: P/N City Theatrical 2817

FollowSpot
MAC Viper XIP / MAC Encore Two FolowSpot Handle: P/N City Theatrical 2815

Universal Connect Module
Multiverse Connect Module 2.4GHz: P/N City Theatrical 5914
Multiverse Connect Module 900MHz: P/N City Theatrical 5915

Ordering Information MAC Viper XIP in Cardboard (in cardboard box with EPS, reused material): P/N MAR-90250300HU MAC Viper XIP White in Cardboard (in cardboard box with EPS, reused material): P/N MAR-90250310HU MAC Viper XIP in SIP (in cardboard box with SIP foam flight case insert): P/N MAR-90250305HU

Downloads

Specifications

	Version	Language	Size	Uploaded
Universal Connect Module Standard version 1.20, updated: Nov 2025	1.20		3.32 MB	Nov 2025
MAC Viper XIP - Spec Sheet version D, updated: Jan 2026	D		2.08 MB	Jan 2026
MAC Viper XIP - Acoustic Test Report version B, updated: Aug 2024	B		482 KB	Aug 2024
MAC Viper XIP - SiP Spec Sheet version A, updated: Mar 2024	A		505 KB	Mar 2024
MAC Viper XIP - Single Flightcase Spec Sheet version A, updated: Mar 2024	A		7.49 MB	Mar 2024
MAC Viper XIP - Double Flightcase Spec Sheet version A, updated: Mar 2024	A		7.75 MB	Mar 2024

Manuals

	Version	Language	Size	Uploaded
MAC Viper XIP - Bedienungsanleitung mit Installations- und Sicherheitshinweisen version F, updated: Apr 2026	F		4.61 MB	Apr 2026
MAC Viper XIP - Safety and Installation Manual version E, updated: Jul 2025	E		2.61 MB	Jul 2025
MAC Viper XIP - User, Safety and Installation Manual version F, updated: Apr 2026	F		4.33 MB	Apr 2026
MAC Viper XIP - Manual de Usuario con Manual de Seguridad e Instalación version F, updated: Apr 2026	F		4.54 MB	Apr 2026
MAC Viper XIP - Guide de l’utilisateur avec Manuel d’installation et de sécurité inclus version F, updated: Apr 2026	F		4.42 MB	Apr 2026

Photometrics

	Version	Language	Size	Uploaded
MAC Viper XIP - Photometric Files version B, updated: Feb 2025	B		9.07 MB	Feb 2025
MAC Viper XIP - Third Party Photometric Reports version A, updated: Feb 2025	A		1.41 MB	Feb 2025

Illustrations

	Version	Language	Size	Uploaded
MAC Viper XIP - 2D Dimensions PDF version A, updated: Mar 2024	A		2.28 MB	Mar 2024
MAC Viper XIP - 2D Dimensions DWG version A, updated: Mar 2024	A		8.97 MB	Mar 2024

Symbols

	Version	Language	Size	Uploaded
AutoCAD 2D Symbols version 2.8, updated: Jan 2026	2.8		4.42 MB	Jan 2026
AutoCAD 3D Symbols version 2.8, updated: Jan 2026	2.8		18.7 MB	Jan 2026
Vectorworks Symbols version 4.6, updated: Jan 2026	4.6		249 MB	Jan 2026
Martin Professional GDTF Library version A, updated: Oct 2023	A		203 Bytes	Oct 2023

CAD Drawings

	Version	Language	Size	Uploaded
MAC Viper XIP - 3D Drawings version A, updated: Mar 2024	A		12 MB	Mar 2024

Bim Objects

	Version	Language	Size	Uploaded
MAC Viper XIP - BIM Object version A, updated: May 2025	A			May 2025

Compliances

	Version	Language	Size	Uploaded
Safety Document (SDS) for Batteries version D, updated: Jan 2026	D		332 KB	Jan 2026
MAC Viper XIP - ETL Listing Verification version C, updated: Mar 2026	C		137 KB	Mar 2026
MAC Viper XIP - Product Verification and Reliability Report version A, updated: Feb 2025	A		707 KB	Feb 2025
MAC Viper XIP - EU Test Verification of Conformity version B, updated: Dec 2024	B		550 KB	Dec 2024
MAC Viper XIP - CB Test Certificate version B, updated: Dec 2024	B		588 KB	Dec 2024
MAC Viper XIP - UKCA Declaration of Conformity version A, updated: Jun 2024	A		161 KB	Jun 2024
MAC Viper XIP - EU Declaration of Conformity version A, updated: Jun 2024	A		229 KB	Jun 2024

Firmware

	Version	Size	Uploaded
MAC Viper XIP - Firmware version 1.4.1, updated: May 2026	1.4.1		May 2026

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

News

March 14, 2024
Martin Professional Introduces MAC Viper XIP High-Output, Full-Featured Outdoor Moving Head

HARMAN Pro Insights

Selecting the Best Moving Head Lights for Outdoor Festivals

When it comes to selecting the best moving head lights for outdoor festivals, designers and rental houses face a tough challenge. They have to find creative ways to balance brightness, durability, and flexibility against unpredictable weather, long runtimes, and the need for maximum

CONTINUE READING

Defying the Elements: Inside Martin’s Trailblazing XIP Weatherproof Lighting Technology

Wouldn’t the ultimate moving head lighting fixture be one you could use indoors or out, in noisy or quiet environments, yet experience no relative changes in weight, size, or lumen output? From concert stages to TV studios and EDM festivals to opera houses, Martin’s exclusive

CONTINUE READING
