Magnum 1200 (discontinued)

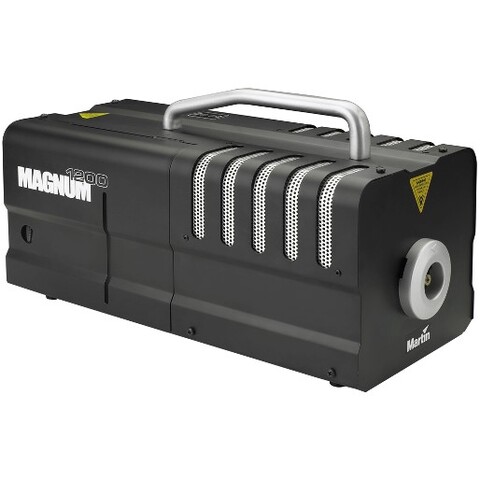

Magnum 1200
Larger Images

The Magnum 1200 delivers a heavy punch of fog. It's built tough to meet the rugged demands of 24/7 nightlife.

Features

  • Optional DMX interface
  • Internal remote control storage
  • Timer and output level remote control
  • Linkable - up to 4 units can be operated at the same time with one remote. DMX - unlimited channels are available
  • Optional flying kit
  • Continuous output
  • 290 m³/min fog output
  • 850 W heat exchanger
  • 8 min heat-up time
  • 2.3 liter fluid capacity
  • Different fluid options for different applications

Specifications

Physical Length: 450 mm (17.2 in.) Width: 205 mm (8.1 in.) Height: 244 mm (9.6 in.) Dry weight: 10 kg (22.1 lbs.)
Performance Max. fog output (approx.): 290 m3 per minute Max. operating time at full output (approx.): 90 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 8 minutes
Control and Programming Control options: Remote control (supplied), DMX with optional DMX interface module Remote control features: Instant or timer-controlled variable output
Construction Housing: Steel & aluminum Heat exchanger: 850 W, direct thermal protection
Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 2.3 l Fluid consumption at peak output: 50 ml per minute
Installation Orientation: Floor or flying kit
Connections Remote control: RJ-45 DMX (with optional DMX interface): 3-pin locking XLR Power cable entry: 3-pin IEC
Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 5 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)
Typical Power and Current US model: 110 V, 60 Hz: 748 W, 6.8 A 115 V, 60 Hz: 817 W, 7.1 A 120 V, 60 Hz: 890 W, 7.4 A EU model: 220 V, 50 Hz: 814 W, 3.7 A 230 V, 50 Hz: 890 W, 3.9 A 240 V, 50 Hz: 969 W, 4.04 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 50° C Max. nozzle temperature: 200° C
Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995) US safety (US model): UL Std. 60335-1
CE ETL US ONLY
Included Items User manual: P/N 35010023 Power cable 1.5 m IEC w/o end plug: P/N 11501012 Remote control with 5 m cable and RJ-45 connector: P/N 92765032 Container 2.3 l: P/N 34300536
Accessories Pro Smoke Super (ZR Mix) fluid Regular DJ (DJ mix) fluid DMX Interface: P/N 91612011 Hanging bracket: P/N 92610010 Ducting Kit: P/N 92625009
Ordering Information Martin Magnum 1200, 110 V: P/N 92228910 Martin Magnum 1200, 240 V: P/N 92228911

Downloads

  Version Language Size Uploaded
Manuals
file type icon User Manual Magnum 1200 / 1800
en version D, updated: Oct 2020
en  739 KB Oct 2020
file type icon MAC Viper Profile- Bedienungsanleitung
de version D, updated: Oct 2020
de  171 KB Oct 2020
file type icon User Manual Magnum 1200 / 1800 FRENCH
fr version D, updated: Oct 2020
fr  384 KB Oct 2020
Illustrations
file type icon Magnum 1200 Dimensions
en version A, updated: Oct 2020
en  4.57 MB Oct 2020
Compliances
file type icon CE Compliance Magnum 1200
en version A, updated: Oct 2020
en  69.2 KB Oct 2020
file type icon ETL Magnum 1200/1800 ATM
en version A, updated: Oct 2020
en  145 KB Oct 2020
Parts
Epsilon 5 AVR Programmer
en version A, updated: May 2018
A   en    May 2018
file type icon Martin Heat Exchange Part Numbers
en version B, updated: Oct 2020
en  116 KB Oct 2020
Service Procedures
Temperature calibration methods
en version A, updated: May 2018
A   en    May 2018
Service Notes
Power cable replacement for customers in Canada
en version A, updated: May 2018
A   en    May 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
