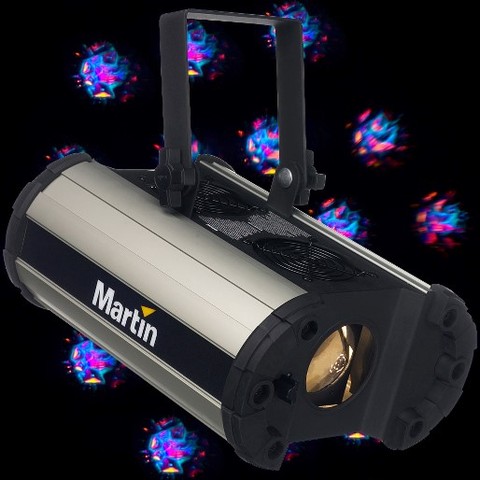

Mania EF2 (discontinued)

Mania EF2
Larger Images

The Mania EF2 is a cool dance floor lighting effect suitable for DJs, clubs, events or even your own personal party.

Features

  • 100 W halogen lamp
  • 800 hour lamp included
  • Front surface coated mirrors on reflector dish giving 19 brilliant beams of light
  • Manual focus
  • Auto or Music triggered
  • Continuous operation - no cool down time needed
  • 8 gobos (4 x colored & textured glass, 4 x dichroic color filters)
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Specifications

Physical Length: 312 mm (12.3 in.) Width: 250 mm (9.9 in.) Height: 142 mm (5.6 in.) Weight: 6.5 kg (14.4 lbs.)
Dynamic Effects Color/gobo wheel: 8 gobos (4 with textured glass, 4 with dichroic color filters) Motorized rotating parabolic mirror dish: 19 front-surface color-coated mirrors
Control and Programming Stand-alone trigger options: Music trig, auto trig
Lamp Type: 100 W EFP halogen Fitted as standard: Philips EFP 8H 100 W 12 V (800 hrs.) Socket: GZ 6.35
Optics Beam angle: 40° Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum
Installation Mounting points: Adjustable mounting bracket Orientation: Any
Connections AC power input: 3-pin IEC male socket
Electrical AC power: 115-120/220-240 V, 50/60 Hz, switch-selectable Main fuse: 2 AT (slow blow)
Typical Power and Current 120 V, 60 Hz: 113 W, 0.9 A 230 V, 50 Hz: 106 W, 0.5 A 240 V, 50 Hz: 114 W, 0.5 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 100° C Typical heat dissipation (calculated): 390 BTU/hr.
Approvals US safety: UL 1573 Canadian safety: CSA C22.2 No. 166 EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE ETL C US Intertek
Included Items Philips EFP/8H 12 V, 100 W lamp: 97000004 Adjustable mounting bracket: 21060390 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013 User manual: 35000150
Accessories Half-coupler clamp: 91602005
Spare Parts Philips EFP/8H 12 V, 100 W lamp : 97000004 2 AT main fuse: 05020009
Ordering Information Mania EF2, US model: 90430061 Mania EF2, EU model: 90430060
