Max Module Button (discontinued)

Larger Images

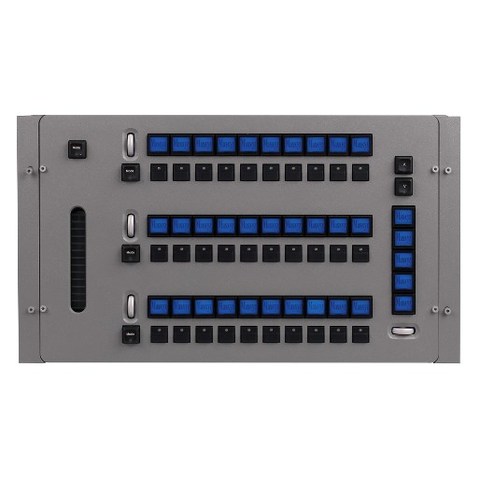

The Button module offers up to 30 customizable direct access buttons to satisfy the ever-increasing demand for more direct access on live shows. Each row of 10 buttons is individually assignable to cuelists, groups, fixtures or presets by the simple press of a Mode button. Each row includes 10 LCD buttons, 10 flash buttons and one scroll wheel for direct access to other banks, pages or rows. MaxModule Button also works directly with the Maxedia media server as a playback device.

Features

  • 3 rows of 10 x LCD function buttons
  • 5 x LCD navigation buttons with scroll wheel
  • Digital fader belt for intensity, speed and timing controls
  • Mode buttons for assigning operating mode to each row
  • Playback button mode and fixture, group and preset selection modes available
  • Built-in Maxxyz PC dongle and 2 built-in DMX ports

Tech Specs

Physical Length: 275 mm Width: 483 mm Height: 128 mm Weight: 4.9 kg
Control/User Interface 3 rows of 10 x LCD function buttons: 5 x LCD navigation buttons with scroll wheel: Digital fader belt for intensity, speed and timing controls: Mode buttons for assigning operating mode to each row: Playback button mode and fixture, group and preset selection modes available:
Connections Maxxyz/Maxedia multiple controller link USB: Neutrik locking RJ45 Ethercon sockets DMX out: 2 x 5-pin female locking XLR USB input: USB device socket USB devices: USB host socket Desk lamp: 2.5 mm DC bayonet AC power input: 3-pin IEC male socket AC power throughput: 3-pin IEC female socket
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 2 AT (slow blow) Desk lamp output: 12 V AC power output: Unswitched, unfused, max. 6 A
Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1
Included Items Maxxyz PC key (without 3D Visualizer) installed internally: 1.5 m power cable, 3-pin IEC: 11501012 Ethercon patch cable: 11840144 USB cable: 11840066 User manual: 35000223 DVD with Maxxyz PC and Maxxyz Manager software:
Ordering Information MaxModule Button: 90732160 M-Series™ Empty Frame in Flightcase: 90732120 M-Series™ Empty Frame in Cardboard Box: 90732130

Downloads

Filename Version Language Size Uploaded
Manuals
Maxxyz Modules user manual en  1.35 MB May 11, 2009
Compliances
M1 ts, M1 HD, M6, MaxModules - ETL Authorization to Mark   337 KB Mar 07, 2017
ETL Authorization to Mark en  26.7 KB Nov 02, 2010
