Maxxyz Wing (discontinued)

Maxxyz Wing
Larger Images

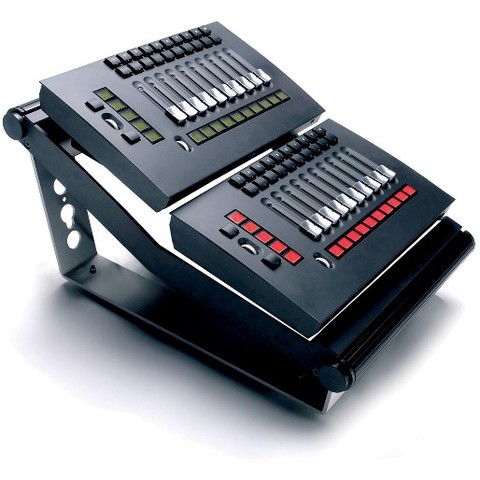

The Maxxyz Wing System extends the Maxxyz’s functionality and gives you the ability to customize and add more direct access to your console.

Features

  • Modular design for future expansion
  • Full playback capabilities, identical in layout to Maxxyz console
  • LCD buttons with customizable text
  • Motorized faders
  • Easily connects to Maxxyz or Maxxyz PC via USB
  • Smart design allows for operation left or right of the main console
  • Sturdy and robust construction

Specifications

Physical Length: 440 mm Width: 610 mm Height: 290 mm Dimensions are for Wing frame without case:
Control/User Interface 10 x motorized playback faders, each with one dynamically labeled LCD button (to identify/activate playback) and two function-assignable buttons: 20 x conventional buttons: 5 x LCD bank selection keys: Jog wheel for scrolling bank selection: 2 x five bank up/down 'nudge' keys: Controls listed are per playback module - one Wing frame can contain two playback modules:
Connections Maximum number of Playback Modules per Maxxyz Console: 16 Wing I/O: RJ-45 Maxxyz PC: USB Desk lamp: XLR Power in/out: 3-pin IEC Wireless remote:
Electrical AC power: 100-240 V nominal, 50/60 Hz
Approvals EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1
CE ETL C US Intertek
Included Items Included with P/N 90732100 Maxxyz Wing Playback Module:: LED desk lamp: 06220004 USB cable (A/B), 1000 mm: 11840066 1.5 m power cable, 3-pin IEC: 11501012 Power interconnect cable, IEC 3-pin: 11850039 Ethercon patch cable: 11840100 Included with P/N 90732110 Maxxyz Wing Frame:: Maxxyz Wing flightcase: 91535006 Ethercon patch cable: 11840100 Power interconnect cable, IEC 3-pin: 11850039 Two spindles for attachment to Maxxyz or other Wing Frame:
Ordering Information Maxxyz Wing Playback Module, 90-250 V: 90732100 Maxxyz Wing Frame in Flightcase: 90732110 One "complete” Maxxyz Wing requires 1 x Wing Frame and 2 x Playback Modules:

Downloads

  Version Language Size Uploaded
Illustrations
file type icon Maxxyz Wing Dimensions
en version A, updated: May 2018
en  647 KB May 2018
Compliances
file type icon ETL Authorization to Mark
en version A, updated: May 2018
en  97.7 KB May 2018
Service Notes
file type icon Maxxyz Wing installation note
en version A, updated: Oct 2020
en  547 KB Oct 2020
