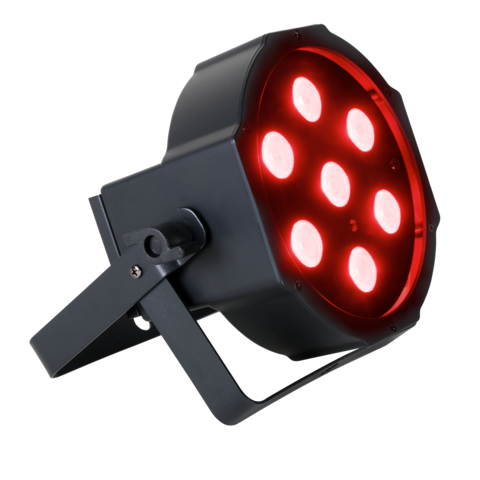

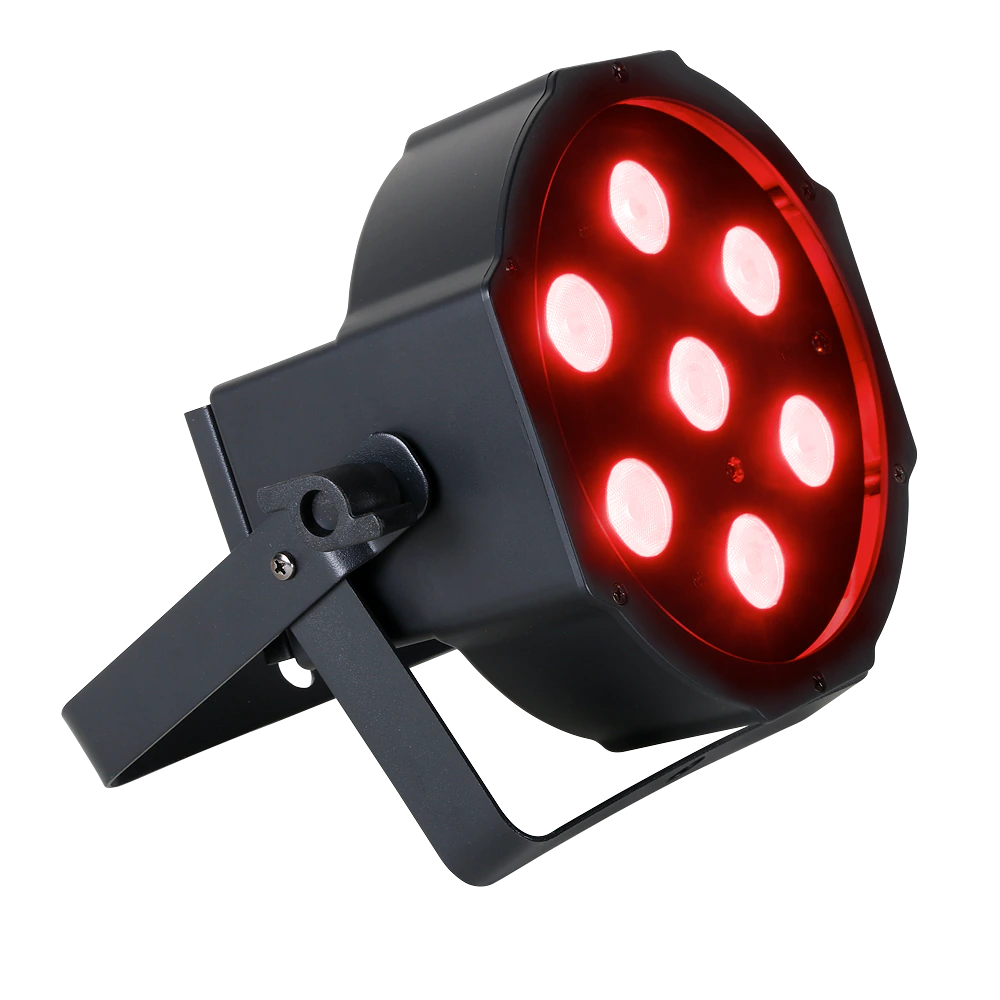

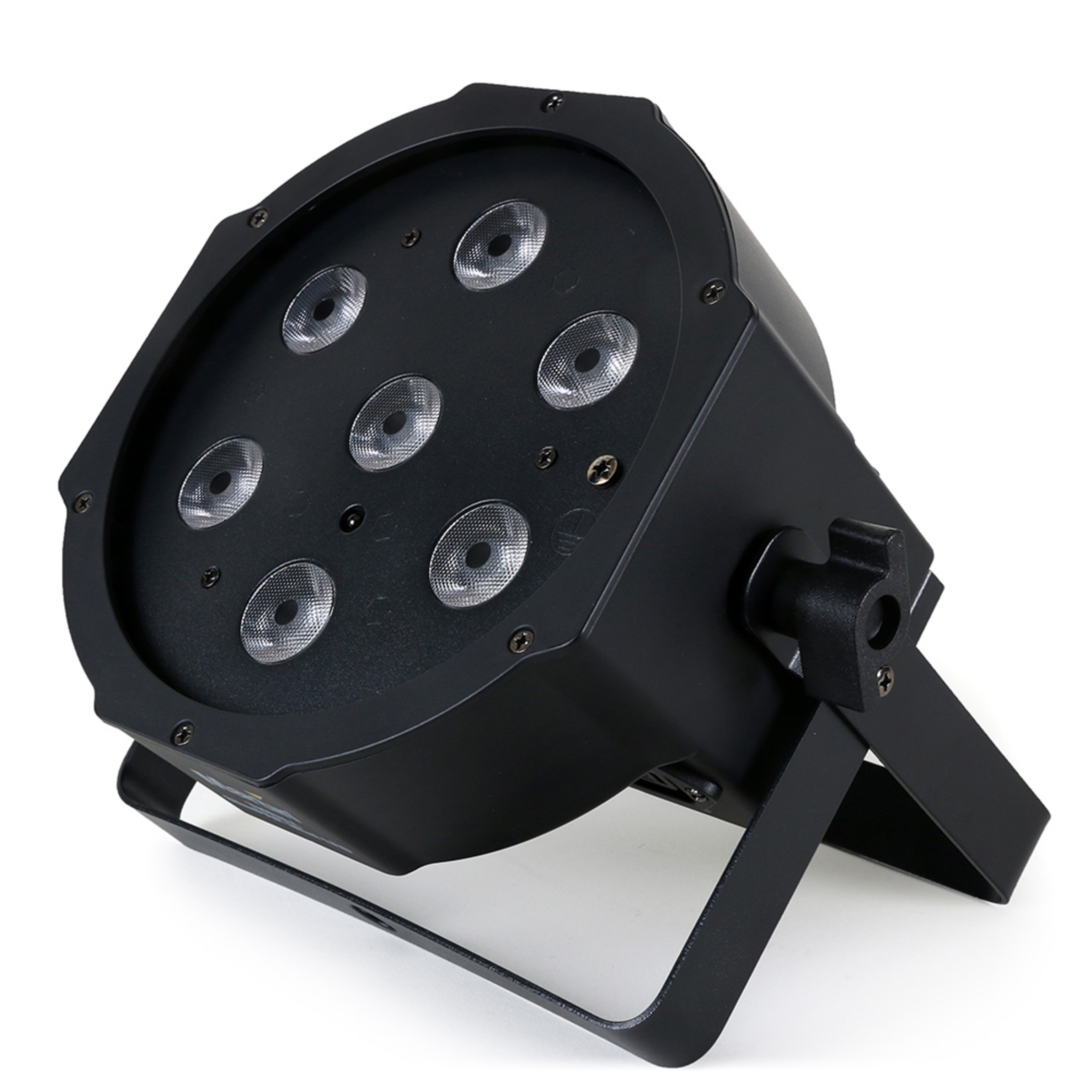

THRILL Compact PAR Mini LED (discontinued)

Larger Images

THRILL Compact PAR Mini LED, packs a wallop of light for its small size. This LED fixture will illuminate your party or event with full, intense and saturated colors. Seven 3-watt RGB LEDs give a uniform field of light that is perfect for wall washes, truss toning and front or back lighting. The sit-flat design makes the light easy to slide under tables, tuck inside a truss or into any tight spot.

The THRILL Compact PAR Mini LED features 36 vibrant, pre-programmed colors and RGB color mixing so that any color in the spectrum can be created. Combine this wide color palette with electronic strobe/dimming and the THRILL Compact PAR Mini LED will take your event from great to brilliant. An included wireless remote control makes programming a breeze, simply point and click to get the color you want or run the pre-programmed settings.

Its lightweight design, super compact profile and wireless remote control make it the perfect fit and a safe all-around choice for on-the-go entertainers, DJs, venues and home enthusiasts that require professional lighting at an affordable price.

  • Portable, lightweight and easy to control
  • Sit-flat design allows versatile fixture placement
  • Plug-and-play functionality with easy-to-use remote control
  • LET THE MUSIC DO THE TALKING

    THRILL Compact PAR Mini LED is a perfect fit for musicians, DJs, event specialists and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Compact PAR Mini LED features a built-in microphone—simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has four professionally programmed, preset shows that can be run with no lighting experience required.

  • PORTABLE AND LIGHTWEIGHT

    Its portable and lightweight design, and included remote makes the THRILL Compact PAR Mini LED ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.

  • LOW-PROFILE, SIT-FLAT DESIGN

    Featuring a sit-flat design, the THRILL Compact PAR mini LED can sit perfectly flat on the ground with its cabling directed to the sides. This gives you the freedom to fit the fixture into tighter spaces, such as underneath tables or for uplighting purposes to illuminate structures at 90 degrees with little hassle.

  • SETUP IS A BREEZE

    With the THRILL Compact PAR Mini LED, setup has never been easier. Layout up to 32 fixtures in a master/slave configuration and quickly daisy chain their power and data connections together. For added flexibility, Compact PAR Mini LED can be used as either a hanging fixture or a floor-standing light via the included multi-function hanging bracket.

  • CONTROL AT HAND

    Control is easy too. The included IR remote control gives you the freedom to simply assign colors to the fixture or you can run the automated lightshows mentioned above. The fixtures can also be used as part of a complete DMX system with an integrated controller such as a Martin M-Touch and free M-PC control software. It’s easy to add washes of light to your live experience with the THRILL Compact PAR Mini LED.

LET THE MUSIC DO THE TALKING

THRILL Compact PAR Mini LED is a perfect fit for musicians, DJs, event specialists and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Compact PAR Mini LED features a built-in microphone—simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has four professionally programmed, preset shows that can be run with no lighting experience required.

PORTABLE AND LIGHTWEIGHT

Its portable and lightweight design, and included remote makes the THRILL Compact PAR Mini LED ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.

LOW-PROFILE, SIT-FLAT DESIGN

Featuring a sit-flat design, the THRILL Compact PAR mini LED can sit perfectly flat on the ground with its cabling directed to the sides. This gives you the freedom to fit the fixture into tighter spaces, such as underneath tables or for uplighting purposes to illuminate structures at 90 degrees with little hassle.

SETUP IS A BREEZE

With the THRILL Compact PAR Mini LED, setup has never been easier. Layout up to 32 fixtures in a master/slave configuration and quickly daisy chain their power and data connections together. For added flexibility, Compact PAR Mini LED can be used as either a hanging fixture or a floor-standing light via the included multi-function hanging bracket.

CONTROL AT HAND

Control is easy too. The included IR remote control gives you the freedom to simply assign colors to the fixture or you can run the automated lightshows mentioned above. The fixtures can also be used as part of a complete DMX system with an integrated controller such as a Martin M-Touch and free M-PC control software. It’s easy to add washes of light to your live experience with the THRILL Compact PAR Mini LED.

Videos

Martin THRILL Compact PAR Mini LED



Features

  • Uniform field of light via 7 x 3 W RGB LEDs
  • Fixed 25° beam angle
  • 36 vibrant pre-programmed colors
  • Dynamic effects include color mixing, strobe, dimmer
  • Remote control included for quick color selection
  • Easy to operate standalone sound-activated, master/slave control methods
  • 4 professionally pre-programmed shows
  • DMX operable for individualized control and design
  • Included multi-function bracket for hanging or surface mount
  • Common IEC mains inlet/thru – mains cable included

Specifications

  • Physical Length: 229 mm (9 in.) Width: 115 mm (4.5 in.) Height: 229 mm (9 in.) Weight: 1.3 kg (2.9 lb.) Maximum standing footprint: 229 mm (9 in.) x 204 mm (8 in.) Dynamic Effects Electronic shutter effect: Instant open and blackout Electronic dimming: 0 – 100 % Strobe and pulse effects: Variable speed and action, random strobe Color mixing: RGB Color selection: 36 color presets Control and Programming Control options: DMX, stand-alone, IR remote control User interface: Control panel with LED display DMX channels: 3/6 Standalone trigger options: Sound-trigger, auto-run DMX compliance: ANSI E1.11 - USITT DMX512-A Optics Light source: 7 x 3 W RGB LEDs Beam angle: 25° Minimum LED lifetime: 30,000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions. Construction Housing: High-impact flame-retardant thermoplastic Color: Black Ingress protection: IP 20 Installation Mounting: Adjustable bracket, surface or truss mount Mounting points: Bracket for single rigging clamp, M12 or ½” Location: Indoor use only Orientation: Any Connections AC power in, thru: IEC male inlet/female connector, C14/C13 DMX data in, thru: 3-pin XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Fuse: F 3AL, 250 V Typical total power consumption: 25 W Maximum fixtures on AC power throughput, 100-130 V: 10 THRILL Compact PAR Mini LED or 3 A Maximum fixtures on AC power throughput, 220-240 V: 15 THRILL Compact PAR Mini LED or 3 A Power consumption figures are typical, not maximum. Allow for +/-10% variation. Typical Power and Current 110 V, 60 Hz: 0.3 A, 30 W * 230 V, 50 Hz: 0.2 A, 30 W * *Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. Thermal Cooling: Passive Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 85 BTU/hr. (at full intensity, full white) Approvals EU safety: EN 60598-1, EN 60598-2-17, EN 62471, EN 62493 EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547 US EMC: CFR Title 47 Part 15 Class A (pending) Canadian EMC: ICES-003 Class A (pending) Australia/NZ: RCM (pending) Included Items

    Power cable, EU, IEC C13 female, molded Schuko, 1.5 m (6.3 ft.)
    Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.5 m (6.3 ft.)
    Multi-function bracket and hardware
    IR remote control, grey, 16-button
    Battery for remote control, 3 V, CR2025 lithium

    Accessories Installation hardware: Super lightweight half coupler, black: P/N 91602018 Safety cable, SWL 60kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006 Related Items Martin® M-Touch: P/N 90737040 Martin® M-Play: P/N 90737030 Ordering Information THRILL Compact PAR Mini LED: P/N 90280115

Downloads

  Version Language Size Uploaded
Specifications
THRILL Compact PAR Mini LED Spec Sheet-English   en  1.35 MB Jul 09, 2018
Manuals
THRILL Compact PAR Mini LED - Sicherheits- und Installationsleitfaden de  435 KB Jul 09, 2018
THRILL Compact PAR Mini LED - Manuale dell’utente it  438 KB Jul 09, 2018
THRILL Compact PAR Mini LED - Guide de l’utilisateur fr  482 KB Jul 09, 2018
THRILL Compact PAR Mini LED - Guía de usuario es  388 KB Jul 09, 2018
THRILL Compact PAR Mini LED - User Guide en  363 KB Jul 09, 2018
THRILL Compact PAR Mini LED - Benutzerhandbuch de  384 KB Jul 09, 2018
THRILL Compact PAR Mini LED - Manuale sulla sicurezza e di installazione it  488 KB Jul 09, 2018
THRILL Compact PAR Mini LED - Guide d’installation et de sécurité fr  542 KB Jul 09, 2018
THRILL Compact PAR Mini LED - Guía de instalación y seguridad es  435 KB Jul 09, 2018
THRILL Compact PAR Mini LED - Safety and Installation Guide en  401 KB Jul 09, 2018
3D Symbols
Vectorworks Symbols 2.5  en  110 MB May 11, 2018
Compliances
THRILL Compact PAR Mini LED - EC Declaration of Conformity en  208 KB May 18, 2018
