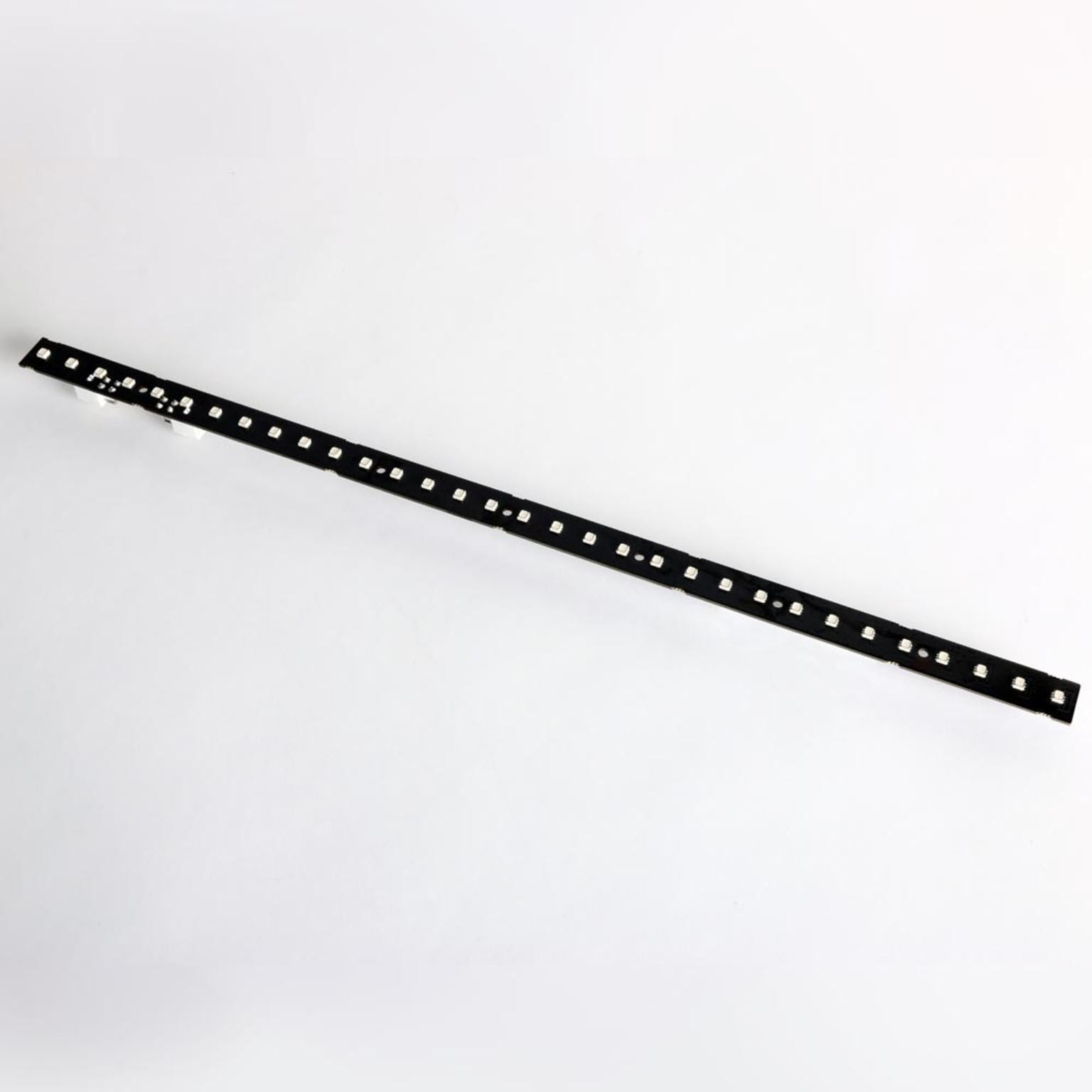

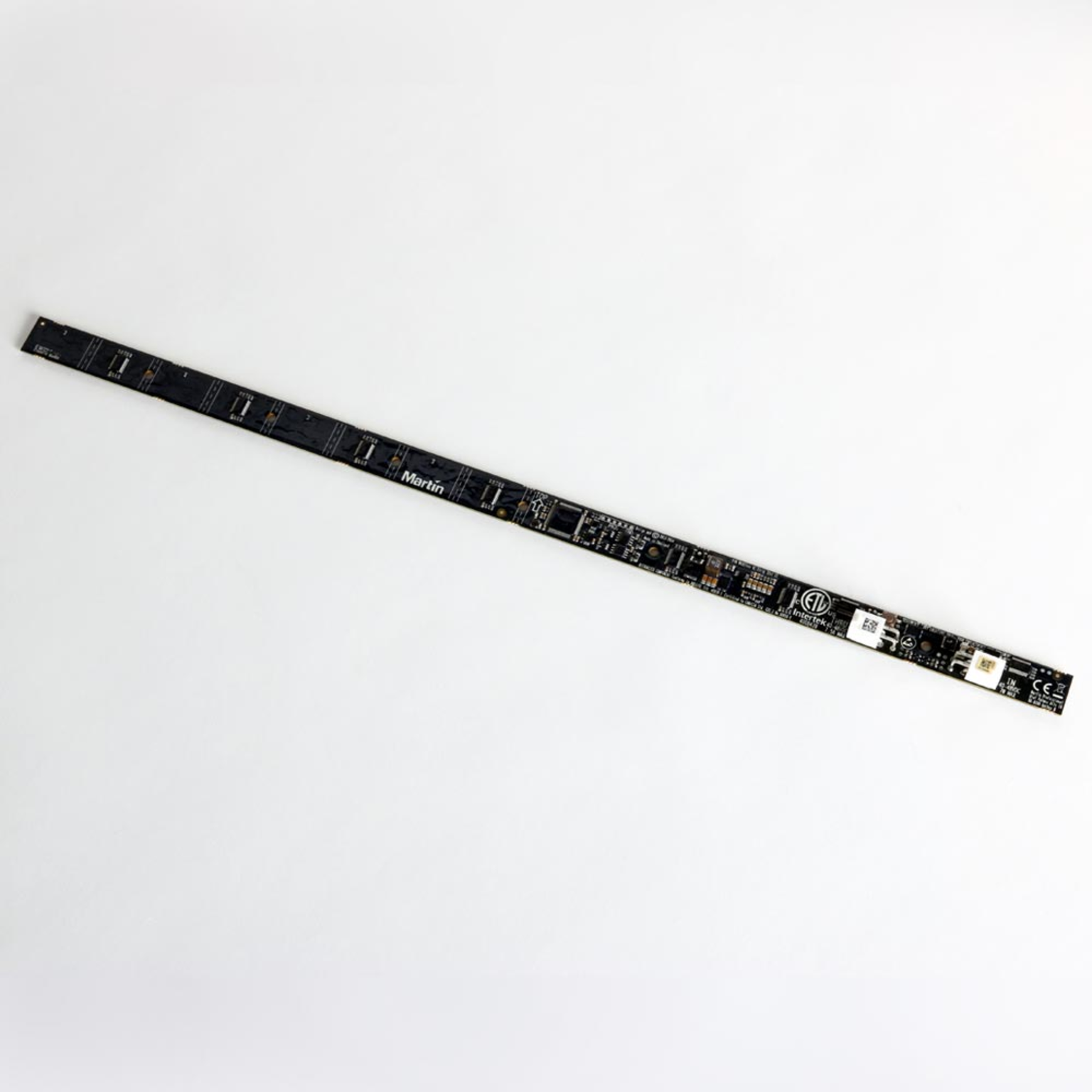

VC-Strip 15

Creative LED Video strip with 15mm pixel pitch

Larger Images

The VC-Strip family of narrow LED video strips is ideal for integration of video into stage and set designs, interiors, custom set elements and more. VC-Strips are fully pixel-level calibrated on brightness and colors for optimal uniformity and quality and are driven by Martin’s award-winning P3 System Controller family for smooth playback that outperforms any DMX-based system. VC-Strips are available in various lengths and can even be cut to required length on-site.

  • Wide range of pixel pitches to suit every application
  • Easy cabling, mapping and configuration
  • Bright and fully calibrated for optimal consistency

Videos

Perfect white light with Martin Creative LED solutions



Fast Deployment of Pre-Made Map on P3—P3 lifehack#2



P3 Live Preview and Flexible Video Mapping—P3 lifehack#3



P3 Directly from Green Hippo Media Server—P3 lifehack#5



Mixing P3 Video and DMX for Creative Control—P3 lifehack#6



Features

  • 32/16 individually controllable pixels
  • 15 mm pixel pitch
  • 5000 nits of brightness
  • High-quality, 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality
  • P3/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Combined power/data thru (to daisy-chain up to 32 VC-Strip 15s)
  • Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system

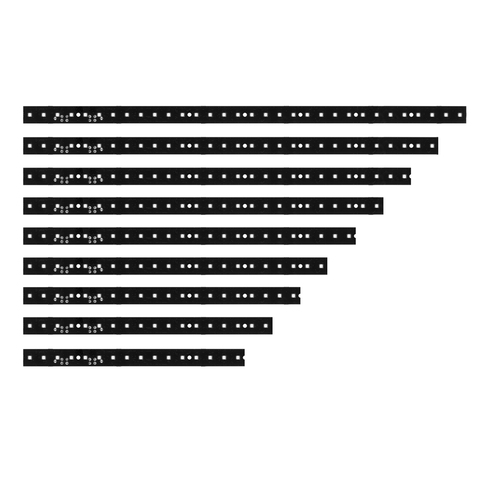

  • Length of VC-Strip can be customized on-site (simple cutting) to fit integration needs
  • Compatible with VC-Grid 15

Specifications

  • Physical VC-Strip 32x1 15™:

    Length: 480 mm (18.9 in.) *
    Width: 19 mm (0.8 in.)
    Height: 15 mm (0.6 in.)
    Weight: 54 g (0.12 lbs.)

    VC-Strip 16x1 15™:

    Length: 240 mm (9.5 in.) *
    Width: 19 mm (0.8 in.)
    Height: 15 mm (0.6 in.)
    Weight: 33 g (0.08 lbs.)

    *Including 1 mm board-to-board gap
    Control and Programming Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ and/or DMX Control modes: Pixel and module Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Protocol detection: Automatic Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels: Pixel mode 32x1 model = 96, 16x1 model = 48; Module mode (all models) = 3 Color and intensity calibration: Pixel-level DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Via P3 System Controller
    Control/User Interface Device status: Multi-color visual indication Device test and reset: Pushbutton to call up local test patterns and reset device
    Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer´s test conditions
    Photometric Data Pixels: 32/16 per module Luminous intensity, calibrated mode: 5000 Nit Viewing angle: 120° x 120° Preliminary data, figures are approximate.
    P3 Video Processing Color Resolution: 16 bits per color (48 bit per pixel) Color Temperature Control: 2000K-11000K Synchronization: System-wide Frame Rate: Up to 75 frames/sec Brightness Control: 0-100% (at full color resolution) Gamma Correction: Fully controllable Gamma Control: Fully controllable Color Gamut Control: Fully controllable LED aging correction: Built-in
    Construction Base: Black FR4 circuit board Protection rating: IP20 RoHS compliant
  • Installation Mounting: Mounting holes in module Orientation: Any Maximum number of VC-Strip™ 32x1 15 modules per daisy-chain: 32 Maximum number of VC-Strip™ 16x1 15 modules per daisy-chain: 63
    Connections Power & data input: 4-pin Molex connector Power & data thru: 4-pin Molex connector
    Electrical Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSU Peak power consumption (at full intensity, full white): 32x1 model 8 W; 16x1 model 4 W Typical power consumption (with typical video content): 32x1 model 3 W; 16x1 model 1.5 W Figures for typical video content are indicative only and will vary. Power consumption figures include cable and assume a 50 m chain
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Peak heat dissipation (calculated, at full intensity, full white): 32x1 model 28 BTU/hr.; 16x1 model 14 BTU/hr. Typical heat dissipation (calculated, with typical video content): 32x1 model 11 BTU/hr.; 16x1 model 5.5 BTU/hr. Figures for typical video content are indicative only and will vary.
    Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1
    Accessories Input cables:

    Power+Data Adapter, XLR4-to-PCB, 0.25 m (0.9 ft.): P/N 91616035
    Power+Data Adapter, XLR5+Power-to-XLR4, 0.25 m (0.9 ft.): P/N 91616037
    Power+Data Adapter, XLR5+XLR4-to-XLR4, 0.25 m (0.9 ft.): P/N 91616038
    Power+Data Adapter, XLR5+Tripix-to-XLR4, 0.25 m (0.9 ft.): P/N 91616039

    VC-Strip to VC-Strip link cables:

    Power+Data Cable, PCB-to-PCB, 200 mm (7.9 in.): P/N 91616025
    Power+Data Cable, PCB-to-PCB, 400 mm (15.8 in.): P/N 91616026
    Power+Data Cable, PCB-to-PCB, 600 mm (23.7 in.): P/N 91616027
    Power+Data Cable, PCB-to-PCB, 800 mm (31.5 in.): P/N 91616028
    Power+Data Cable, PCB-to-PCB, 1000 mm (39.4 in.): P/N 91616029

    Extension cables:

    Power+Data Cable, XLR4-to-XLR4, 1 m (3.3 ft.): P/N 91616030
    Power+Data Cable, XLR4-to-XLR4, 2.5 m (8.2 ft.): P/N 91616031
    Power+Data Cable, XLR4-to-XLR4, 5 m (16.4 ft.): P/N 91616032
    Power+Data Cable, XLR4-to-XLR4, 10 m (32.8 ft.): P/N 91616033
    Power+Data Cable, XLR4-to-XLR4, 25 m (82.1 ft.): P/N 91616034

    Output/throughput cables:

    Hybrid Output/Thru Cable, PCB-to-XLR4, 0.25 m (0.9 ft.): P/N 91616036
    Power+Data Adapter, XLR4-to-XLR5, 0.25 m (0.9 ft.): P/N 91616040

    Cable without connectors:

    Power+Data Cable, Rental, 100 m (328.1 ft.): P/N 91616045
    Power+Data Cable, Install CMX, 100 m (328.1 ft.): P/N 91616060
    Power+Data Cable, Install LSZH, 100 m (328.1 ft.): P/N 91616017









    Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: P/N 90721030
    Ordering Information VC-Strip™ 32x1 15 RGB: P/N 90357440 (to be ordered in multiples of 10) VC-Strip™ 16x1 15 RGB: P/N 90357450 (to be ordered in multiples of 20)
