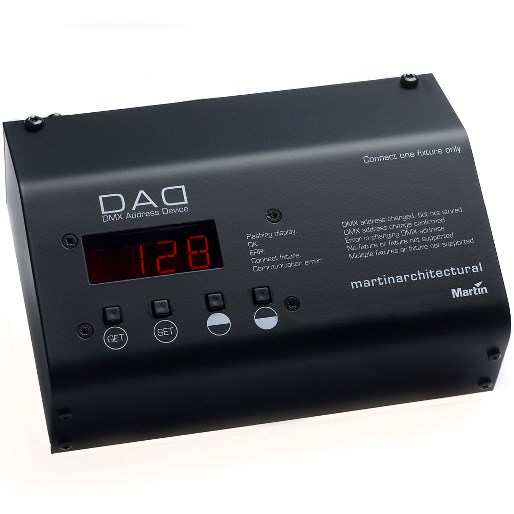

The DAD (DMX Addressing Device) is a very simple tool, which can be used to read and set the DMX address on any supported fixture. It is not necessary to configure this device to any specific fixture, it simply recognize the supported fixtures automatically.
Features
- The DAD currently supports the following Martin fixtures:
- Exterior 200
- Exterior 600
- Exterior 600 Compact
- FiberSource CMY 150
Specifications
Physical
Length: 130 mm
Width: 181 mm
Height: 72 mm
Weight: 1.1 kg
Control and Programming
RS-485: 3 and 5-pin XLR
RS-232: 9-pin DSUB
Construction
Housing: Steel
Finish: Electrostatic powder-coated
Electrical
AC input: 3-pin IEC male socket
AC power: 115/230 V, 50/60 Hz, switch-selectable
Ordering Information
DAD, DMX Address Device: 90758430
Downloads
| Size | ||||
Specifications | ||||
Technishche daten
version A,
updated: May 2018
|
70.2 KB | |||
SP_DAD_EN_A
version A,
updated: May 2018
|
4.65 KB | |||
Manuals | ||||
|
Bedienungsanleitung
version A,
updated: May 2018
|
180 KB | |||
|
DAD - User manual
version A,
updated: May 2018
|
41.6 KB | |||
Illustrations | ||||
|
Dimensions
version A,
updated: May 2018
|
44.6 KB | |||
Dimensions (DXF)
version A,
updated: May 2018
|
145 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
